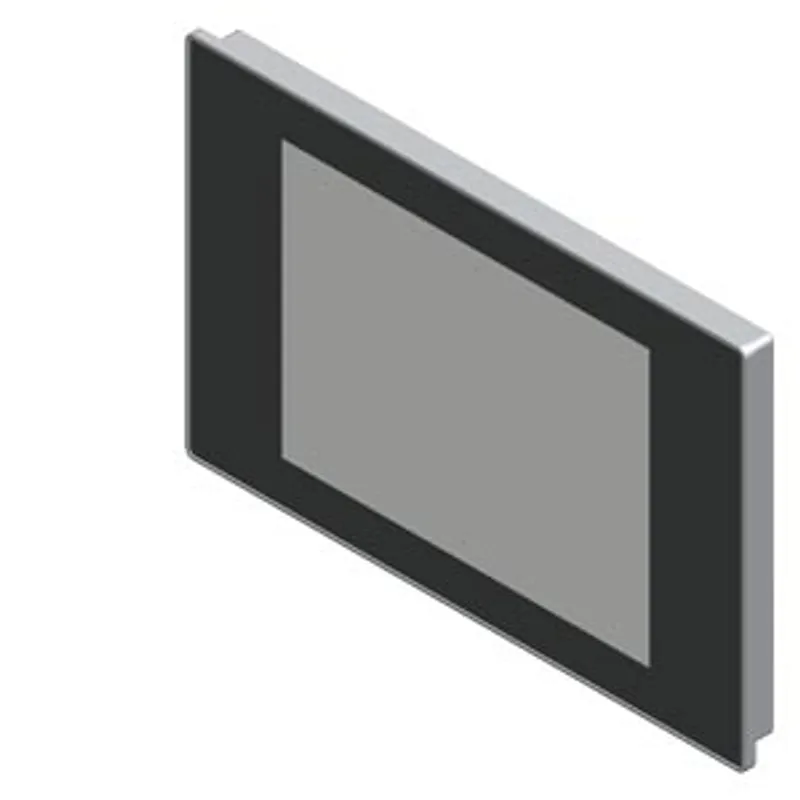

Siemens 6AV7285-6HN10-0AA0
SIMATIC IFP1500 V2 Extended 4:3 15" multi-touch display (4:3) with 1024x768 pixel resolution
- MPN
- 6AV7285-6HN10-0AA0
- Category
- HMI & Operator Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV7285-6HN10-0AA0?
SIMATIC IFP1500 V2 Extended 4:3 15" multi-touch display (4:3) with 1024x768 pixel resolution; built-in unit for 24 V DC; DisplayPort; can be placed up to 100 m away HDBaseT; USB on the rear side; neutral design
Specifications
General information
| Product type designation | SIMATIC IFP1500 V2 Extended 4:3 |
| Short designation | Flat Panel 15" multi-touch ext. |
Display
| Design of display | TFT display, LED backlighting |
| Screen diagonal | 15 in |
| Screen diagonal [cm] | 38.01 cm |
| Display width | 304.1 mm |
| Display height | 228.1 mm |
| On Screen Display (OSD) configuration | No; Adjustable by means of software |
| Number of colors | 16 777 216; 24 bit |
| Viewing angle | 170° x 160° |
| Resolution (pixels) — Image resolution | 1 024 x 768 |
| Resolution (pixels) — Horizontal image resolution | 1 024 pixel |
| Resolution (pixels) — Vertical image resolution | 768 pixel |
| Resolution (pixels) — Pixel size, horizontal | 0.297 mm |
| Resolution (pixels) — Pixel size, vertical | 0.297 mm |
| General features — Brightness/contrast | 400 cd/m² / 800:1 |
| General features — non-reflective and tempered mineral glass screen | Yes |
| General features — Detachable from computer unit | 100 m; HDBaseT V2.0 |
| General features — Luminance | 400 cd/m² |
| Backlighting — Type of backlighting | LED |
| Backlighting — MTBF backlighting (at 25 °C) | 50 000 h; At 25°C |
Control elements
| Control elements | multi-touch screen |
| Touch operation — Design as touch screen | Yes; Projective-capacitive |
| Touch operation — Design as multi-touch screen | Yes; Projective-capacitive |
| Touch operation — Monitor keyboard | Yes |
Installation type/mounting
| Design | Built-in unit |
| Front mounting | Yes |
| VESA mounting | Yes; VESA 100 x 100 integrated |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| Built-in unit | Yes; Portrait mode possible |
| maximum permitted forward tilt angle from vertical | 35° |
| maximum permitted backward tilt angle from vertical | 35° |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V; PELV / SELV floating |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 0.7 A |
| Current consumption, max. | 1.15 A |
| Inrush current, max. | 2.8 A |
| Starting current inrush I²t | 0.5 A²·s |
Power loss
| Power loss, typ. | 15 W |
| Power loss, max. | 20 W |

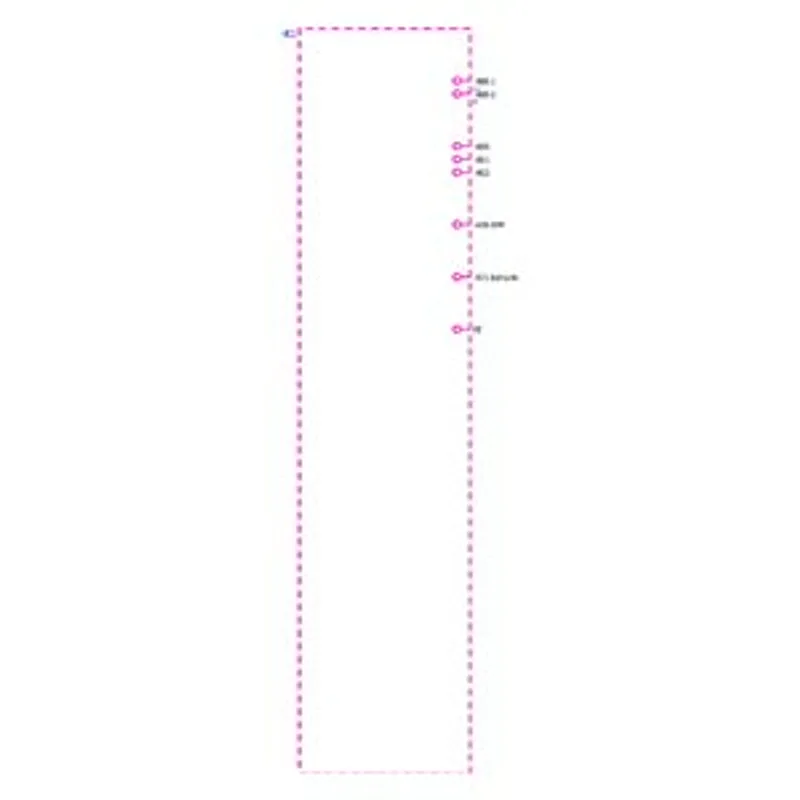

Interfaces
| Number of USB interfaces | 3; 2x USB 2.0 type A, 1x USB 2.0 type B |
| USB on the rear | Yes; 2x onboard |
| USB at the front | No |
| Connection for keyboard/mouse | USB |
| Connection for keyboard/mouse | USB |
| Video interfaces — DVI-D | No |
| Video interfaces — DisplayPort | Yes; Display port V1.2 |
| Touch interfaces — USB | Yes |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) — Enclosure Type 4 at the front | Yes |
| NEMA (front) — Enclosure Type 4x at the front | Yes |
| NEMA (front) — Enclosure Type 12 at the front | Yes |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes; cULus, cUL |
| UL approval — UL 508 | UL 61010 |
| cULus | Yes |
| EMC | CE, EN 55016-2-3, EN 61000-6-4:2007 + A1:2011, EN IEC 61000-6-4:2019, EN 61000-6-2:2005, EN IEC 61000-6-2:2019 |
| Use in hazardous areas — ATEX Zone 22 | No |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 3 500 m |
| Relative humidity — Operation, max. | 90 %; no condensation |
| Vibrations — Vibration load in operation | 1 gn |
| Vibrations — Vibration load during transport/storage | 1 gn |
| Shock testing — Shock load during operation | 15 gn |
| Shock testing — shock acceleration during storage/transport | 15 gn |
Mechanics/material
| Enclosure material (front) — Aluminum | Yes |
| Enclosure material (front) — Aluminum casting | Yes |
| Enclosure material (front) — Glass | Yes; at front |
| Enclosure material (rear) | aluminum |

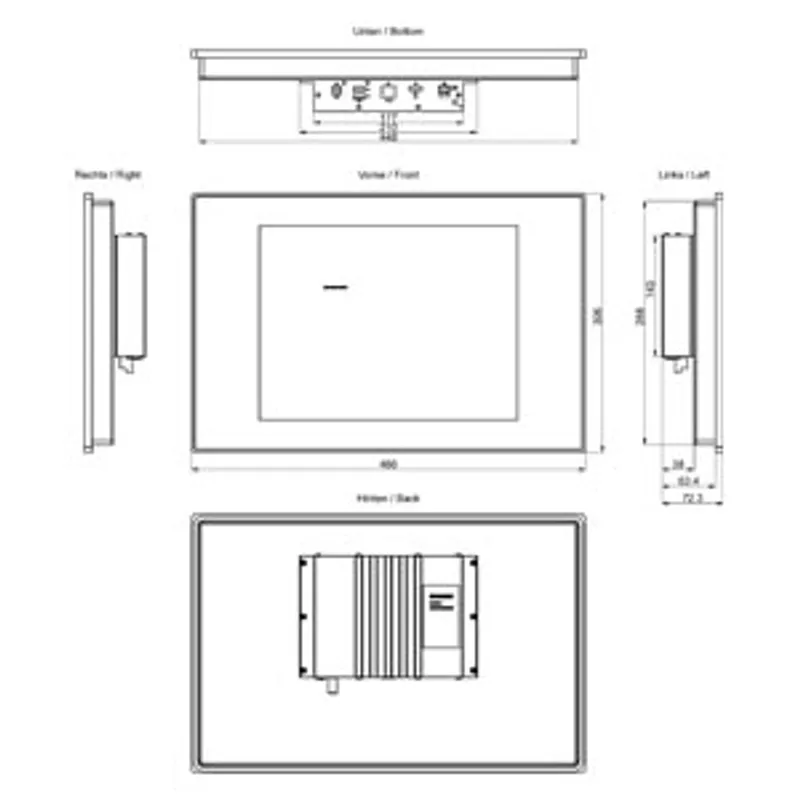

Dimensions
| Width of the housing front | 466 mm |
| Height of housing front | 306.2 mm |
| Mounting cutout, width | 448 mm; Tolerance: +1 mm |
| Mounting cutout, height | 288 mm; Tolerance: +1 mm |
| mounting depth | 63.4 mm |
Weights
| Weight (without packaging) | 4.7 kg |
| Weight (with packaging) | 6 kg |
