Siemens 6AV2128-3GB06-0AX1 – SIMATIC HMI MTP700, Unified Comfort Panel, touch operation

Name: Siemens 6AV2128-3GB06-0AX1 – SIMATIC HMI MTP700, Unified Comfort Panel, touch operation
Brand: Siemens
SKU: 6AV2128-3GB06-0AX1

MPN: 6AV2128-3GB06-0AX1 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	SIMATIC HMI Unified Comfort Panels Standard
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.75 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 6AV2128-3GB06-0AX1 be shipped?

6AV2128-3GB06-0AX1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6AV2128-3GB06-0AX1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6AV2128-3GB06-0AX1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AV2128-3GB06-0AX1, subject to availability and destination.

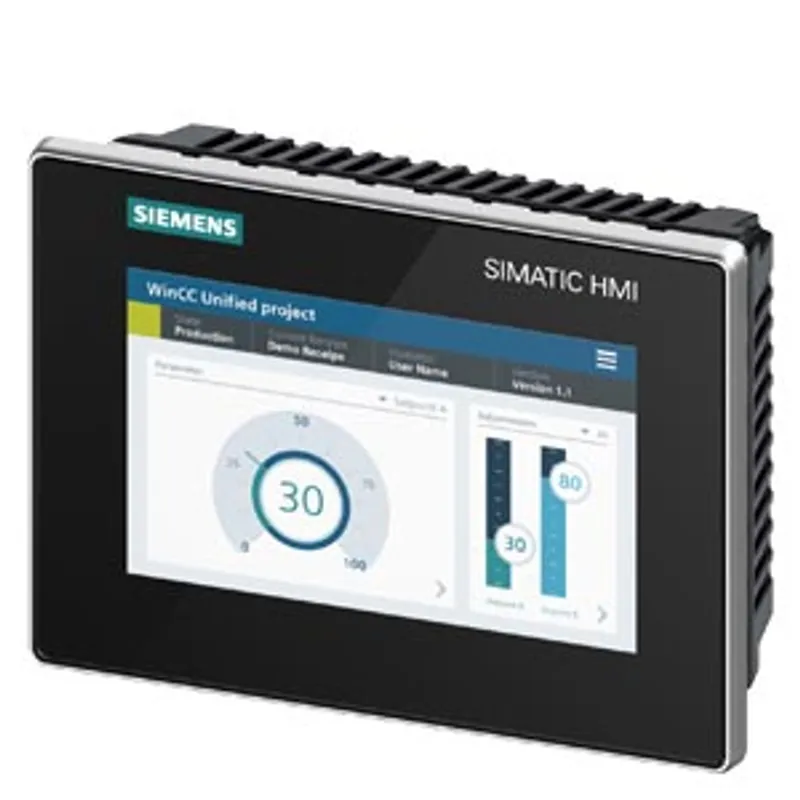

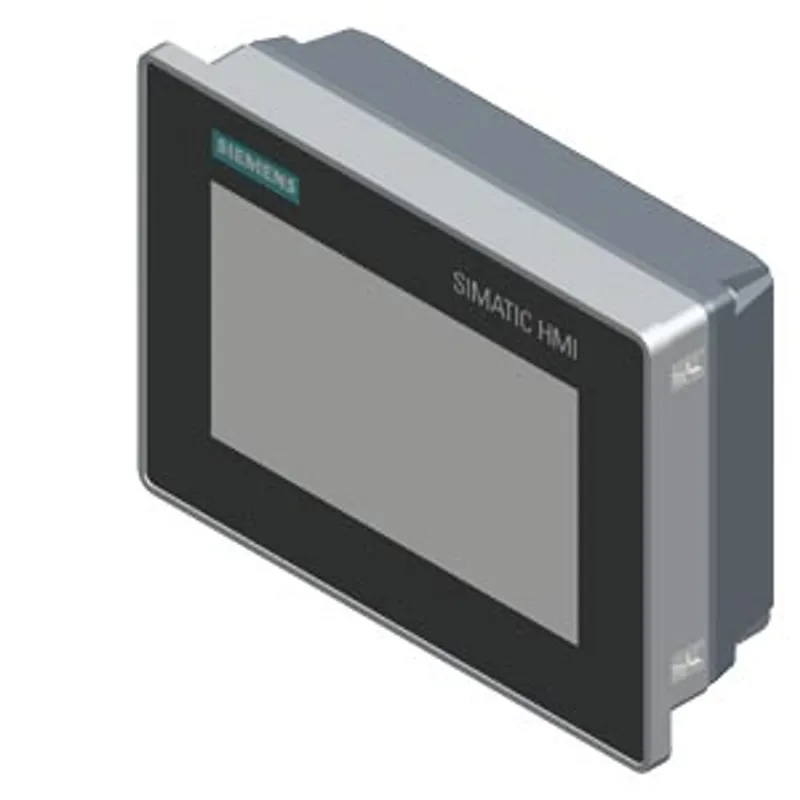

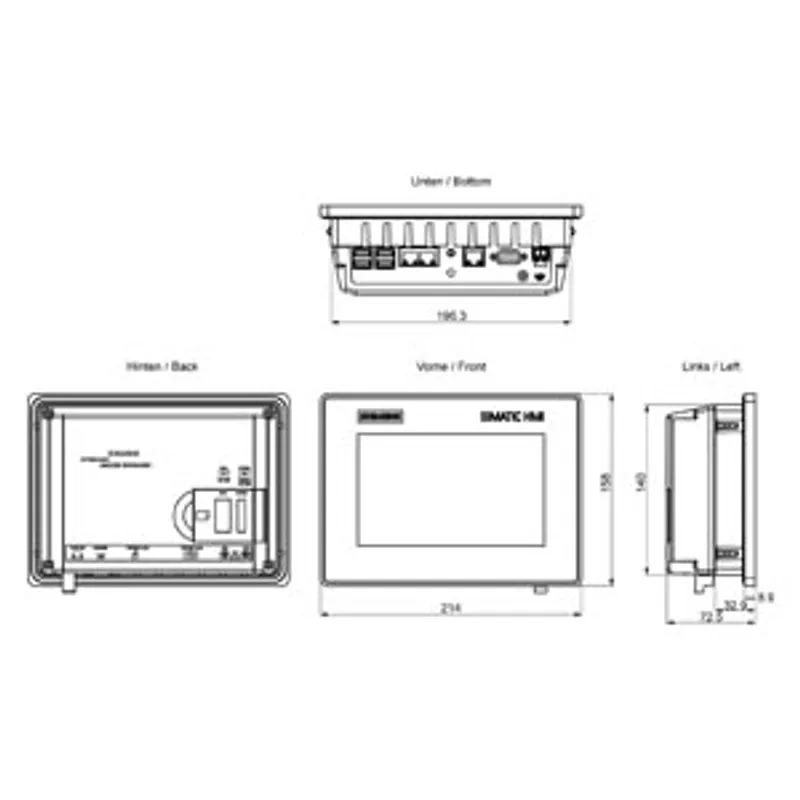

SIMATIC HMI MTP700, Unified Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V16, contains open-source software, which is provided free of charge see enclosed DVD

Specifications

General information

Product type designation

MTP700 Unified Comfort

Display

Design of display	TFT
Screen diagonal	7 in
Display width	152.4 mm
Display height	91.4 mm
Number of colors	16 777 216
Horizontal image resolution	800 pixel
Vertical image resolution	480 pixel
MTBF backlighting (at 25 °C)	50 000 h; At 25°C
Backlight dimmable	Yes; 5-100 %

Control elements

Numeric keyboard	Yes; Onscreen keyboard
alphanumeric keyboard	Yes; Onscreen keyboard
Design as touch screen	Yes
Design as multi-touch screen	Yes

Installation type/mounting

Mounting position	vertical
Mounting in portrait format possible	Yes
Mounting in landscape format possible	Yes
maximum permissible angle of inclination without external ventilation	35°

Supply voltage

Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V

Input current

Current consumption (rated value)	0.45 A
Current consumption, max.	1 A
Starting current inrush I²t	0.5 A²·s

Storage

Flash	Yes
RAM	Yes

Type of output

Acoustics – Buzzer	Yes
Acoustics – Speaker	No

Time of day

Hardware clock (real-time)	Yes
Software clock	Yes
retentive	Yes; Back-up duration typically 6 weeks
synchronizable	Yes

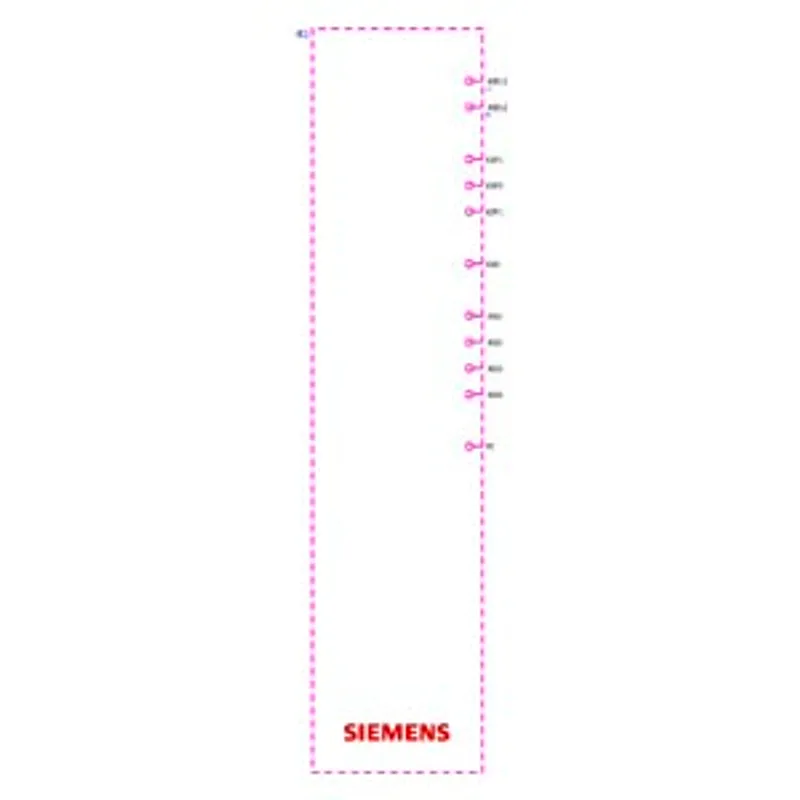

Interfaces

Number of industrial Ethernet interfaces	2; 2 ports (switch) + independent port
Number of RS 485 interfaces	1; RS 422 / 485 combined
Number of RS 422 interfaces	0; together with RS 485
Number of USB interfaces	4; USB 3.1 Gen. 1 (type A)
Number of SD card slots	2
Industrial Ethernet status LED	2
Number of ports of the integrated switch	2

Protocols

PROFINET	Yes
Supports protocol for PROFINET IO	No
TCP/IP	Yes
DHCP	Yes
SNMP	Yes
DCP	Yes
LLDP	Yes
— MRP	Yes

EMC

Limit class A, for use in industrial areas	Yes
Limit class B, for use in residential areas	No

Degree and class of protection

IP (at the front)	IP65
IP (rear)	IP20
NEMA (front) – Enclosure Type 4x at the front	Yes
NEMA (front) – Enclosure Type 12 at the front	Yes

Standards, approvals, certificates

Siemens Eco Profile (SEP)	Siemens EcoTech
CE mark	Yes
UKCA mark	Yes
cULus	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
CCC	Yes
environmental product declaration	Yes
— global warming potential, (total) [CO2 eq]	196 kg
— global warming potential, (during production) [CO2 eq]	41.6 kg
— global warming potential, (during operation) [CO2 eq]	159 kg
— global warming potential, (after end of life cycle) [CO2 eq]	-4.38 kg
ATEX Zone 2	Yes
ATEX Zone 22	Yes
IECEx Zone 2	Yes
IECEx Zone 22	Yes
cULus Class I Zone 2, Division 2	Yes
cULus Class II Division 2	Yes
FM Class I Division 2	Yes
FM Class II Division 2	Yes
Germanischer Lloyd (GL)	No; included in DNV
American Bureau of Shipping (ABS)	Yes
Bureau Veritas (BV)	Yes
Det Norske Veritas (DNV)	Yes
Korean Register of Shipping (KRS)	Yes
Lloyds Register of Shipping (LRS)	Yes
Nippon Kaiji Kyokai (Class NK)	Yes
Chinese Classification Society (CCS)	Yes

Ambient conditions

Suited for indoor use	Yes
Suited for outdoor use	No
— For vertical installation, min.	0 °C
— For vertical installation, max.	50 °C
— At maximum tilt angle, min.	0 °C
— At maximum tilt angle, max.	40 °C
— For vertical installation, min.	0 °C
— For vertical installation, max.	40 °C
— At maximum tilt angle, min.	0 °C
— At maximum tilt angle, max.	35 °C
min.	-20 °C
max.	60 °C
Operation, max.	90 %; no condensation

Operating systems

proprietary

Yes

Configuration

Message indicator	Yes
Alarm system (incl. buffer and acknowledgment)	Yes
Process value display (output)	Yes
Process value default (input) possible	Yes
Recipe management	Yes
WinCC Unified Comfort Engineering (TIA Portal)	Yes
WinCC Unified PC Engineering (TIA Portal)	Yes

Languages

Number of online/runtime languages	32
Languages per project	32

Functionality under WinCC Unified

Libraries	Yes
Applications/options – Writer	Yes
Applications/options – Calc	Yes
Applications/options – Web browser	Yes
Applications/options – PDF Viewer	Yes
Applications/options – Media Player	Yes
Applications/options – SIMATIC WinCC Sm@rtServer	Yes
Applications/options – SIMATIC WinCC Audit	Yes
Applications/options – Unified Collaboration	Yes
Number of Visual Basic Scripts	No
JavaScript	Yes
Task planner – time-controlled	Yes
Task planner – task-controlled	Yes
Help system – Number of characters per info text	70
Help system – Number of message texts per message	10
Help system – Number of alarm classes	32
Bit messages – — Number of bit messages	9 000
Analog messages – — Number of analog messages	300
Analog messages – S7 alarm number procedure	Yes
Analog messages – System messages HMI	Yes
Analog messages – System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )	Yes
Analog messages – Number of characters per message	512
Analog messages – Number of process values per message	10
Analog messages – Acknowledgment groups	Yes
Analog messages – Message indicator	Yes; as dynamic widgets
Analog messages – Message buffer	Yes; Configured as alarm archive
Analog messages – — Circulating buffer	Yes
Analog messages – — retentive	Yes
Analog messages – — maintenance-free	Yes
Analog messages – Number of parameter set types	750
Analog messages – Parameter sets per parameter set type	2 000
Analog messages – Entries per parameter set	4 000; as of WinCC Unified V20
Analog messages – Size of internal parameter set memory	12 Mbyte
Analog messages – Parameter set memory expandable	Yes
Analog messages – Number of variables per device	8 000
Analog messages – Number of variables per screen	600
Analog messages – Limit values	Yes
Analog messages – Structures	Yes
Analog messages – Arrays	Yes
Analog messages – Number of configurable images	1 200
Analog messages – Faceplate	Yes
Analog messages – Number of objects per image	800
Analog messages – Picture window	Yes
Analog messages – Text fields	Yes
Analog messages – I/O fields	Yes
Analog messages – Graphic I/O fields (graphics list)	Yes
Analog messages – Symbolic I/O fields (text list)	Yes
Analog messages – Scalable Vector Graphics (SVG)	Yes
Analog messages – Date/time fields	Yes
Analog messages – Checkbox	Yes
Analog messages – Option button	Yes
Analog messages – Switches	Yes
Analog messages – Buttons	Yes
Analog messages – Graphic display	Yes
Analog messages – Icons	Yes
Analog messages – Custom web display	Yes
Analog messages – Geometric objects	Yes
Analog messages – Number of complex objects per screen	40
Analog messages – Alarm view	Yes
Analog messages – Trend view	Yes
Analog messages – User view	Yes
Analog messages – Status/control	No
Analog messages – Parameter set display	Yes
Analog messages – HTML browser	Yes
Analog messages – Bar graphs	Yes
Analog messages – Sliders	Yes
Analog messages – Pointer instruments	Yes
Analog messages – Analog/digital clock	Yes
Analog messages – Number of text lists per project	750
Analog messages – Number of entries per text list	750
Analog messages – Number of graphics lists per project	750
Analog messages – Number of entries per graphics list	750
Analog messages – Number of archives per device	50
Analog messages – Number of entries per archive	500 000
Analog messages – Message archive	Yes
Analog messages – Process value archive	Yes
Archiving methods – — Sequential archive	Yes
Archiving methods – — Short-term archive	Yes
Memory location – — Memory card	Yes
Memory location – — USB memory	Yes
Memory location – — Ethernet	No
Memory location – Number of roles	50
Memory location – Number of function rights	20; number of predefined function rights
Memory location – Number of users	200
Memory location – Password export/import	Yes
Memory location – Central user administration	Yes; as of WinCC Unified V17
Memory location – USB	No
Memory location – Ethernet	Yes
Memory location – using external storage medium	Yes; as of WinCC Unified V17
Memory location – S7-1200	Yes
Memory location – S7-1500	Yes
Memory location – S7-200	Yes
Memory location – S7-300/400	Yes
Memory location – Number of S7 connections	16
Memory location – LOGO!	Yes; as of WinCC Unified V20
Memory location – WinAC	No
Memory location – SINUMERIK	No
Memory location – SIMOTION	No
Memory location – Allen Bradley (EtherNet/IP)	Yes
Memory location – Allen Bradley (DF1)	Yes
Memory location – Mitsubishi (MC TCP/IP)	Yes
Memory location – Mitsubishi (FX)	Yes
Memory location – OMRON (FINS TCP)	Yes
Memory location – OMRON (Host Link)	No
Memory location – Modicon (Modbus TCP/IP)	Yes
Memory location – Modicon (Modbus RTU)	Yes
Memory location – OPC UA Client	Yes
Memory location – OPC UA Server	Yes
Memory location – Software Controller/Open Controller	Yes
Memory location – Backup/Restore manually	Yes
Memory location – Backup/Restore automatically	Yes
Memory location – Simulation	Yes
Memory location – Device switchover	Yes

Peripherals/Options

Peripherals	Printer, barcode reader
Printer	Yes
SIMATIC HMI MM memory card: Multi Media Card	No
SIMATIC HMI SD memory card: Secure Digital memory card	Yes
SIMATIC HMI CF memory card Compact Flash Card	No
USB memory	Yes
SIMATIC IPC USB Flashdrive (USB stick)	Yes
SIMATIC HMI USB stick	Yes
Network camera	No
