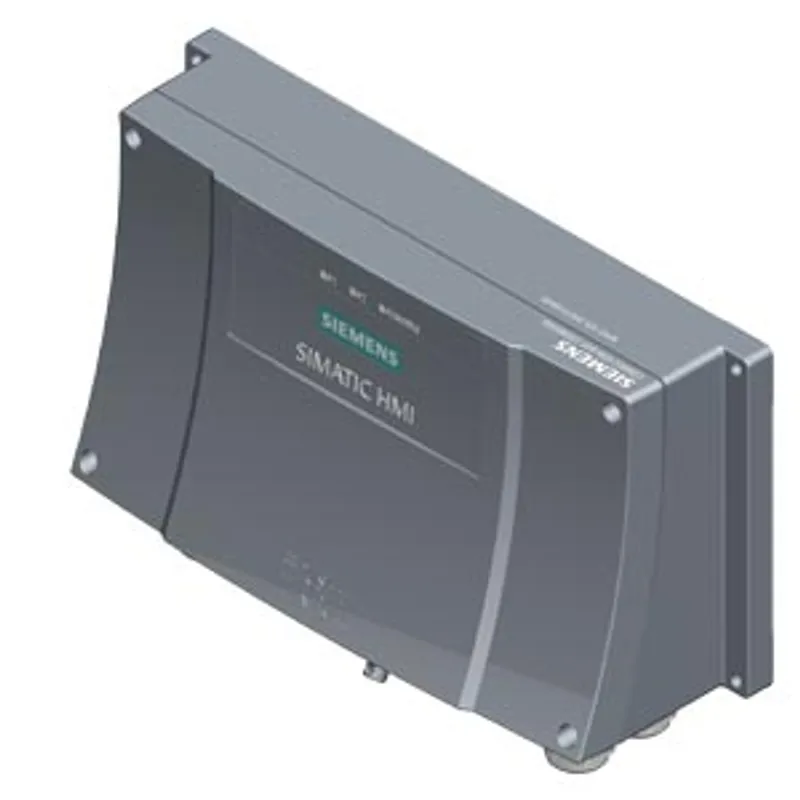

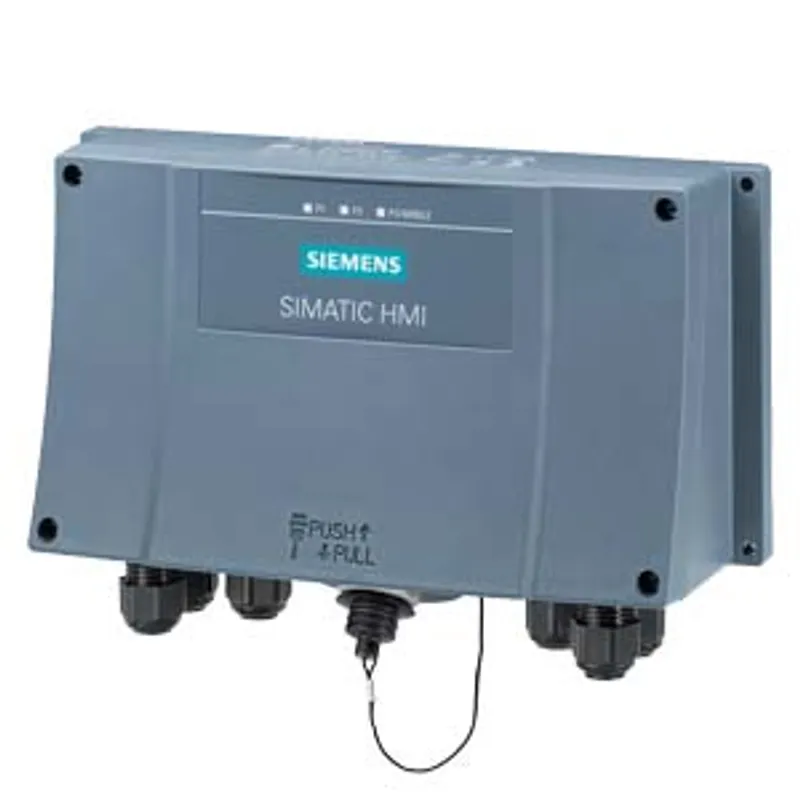

Siemens 6AV2125-2AE13-0AX0
SIMATIC HMI connection box Standard for Mobile Panels, wall mounting, PROFINET and PROFIsafe
- MPN
- 6AV2125-2AE13-0AX0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AV2125-2AE13-0AX0?
SIMATIC HMI connection box Standard for Mobile Panels, wall mounting, PROFINET and PROFIsafe, connection of safety relay, terminal detection, integrated switch
Specifications
General information
| Product type designation | Connection box |
| Web-based management | Yes |
FH technology
| Reconnection without emergency stop circuit interruption | No |
| Reconnection with emergency stop circuit interruption | Yes |
| Monitoring the STOP button | Yes |
| Monitoring of emergency stop button | Yes |
| Monitoring of acknowledgement button | Yes |
| Reconnection without emergency stop circuit interruption | Yes |
| Reconnection with emergency stop circuit interruption | No |
| Monitoring the STOP button | Yes |
| Monitoring of emergency stop button | Yes |
| Monitoring of acknowledgement button | Yes |
Installation type/mounting
| Wall mounting/direct mounting | Yes |
| Control cabinet installation | No |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 96 mA |
| Starting current inrush I²t | 0.15 A²·s |
Power
| Active power input, typ. | 2.3 W |
Interfaces
| Number of industrial Ethernet interfaces | 3 |
| Number of PROFINET interfaces | 3 |
| Connection point identification | Yes |
| Industrial Ethernet status LED | 3 |
Protocols
| PROFINET | Yes |
| IRT | No |
| PROFIsafe | Yes |
| EtherNet/IP | Yes |
| AS-Interface | No |
| EIB/KNX | No |
| TCP/IP | Yes |
| DHCP | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| — MRP | No |
| MODBUS | Yes |
| other bus systems | No |
EMC
| Limit class A, for use in industrial areas | No |
| Limit class B, for use in residential areas | No |
Degree and class of protection
| IP degree of protection | IP65 |
| IP65 (all-round) | Yes |
| IP (at the front) | IP65 |
Standards, approvals, certificates
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | No; in preparation |
| Suitable for safety functions | Yes |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 3 |
| ATEX Zone 2 | No |
| ATEX Zone 22 | No |
| cULus Class I Zone 1 | No |
| cULus Class I Zone 2, Division 2 | No |
| FM Class I Division 2 | No |
| Germanischer Lloyd (GL) | Yes |
| American Bureau of Shipping (ABS) | Yes |
| Bureau Veritas (BV) | Yes |
| Det Norske Veritas (DNV) | Yes |
| Korean Register of Shipping (KRS) | Yes |
| Lloyds Register of Shipping (LRS) | Yes |
| Nippon Kaiji Kyokai (Class NK) | Yes |
| Polski Rejestr Statkow (PRS) | No |
| Chinese Classification Society (CCS) | Yes |
Ambient conditions
| min. | 0 °C |
| max. | 55 °C |
| Operation, max. | 90 % |
Configuration
| STEP 7 Professional (TIA Portal) | No |
| WinCC Comfort (TIA Portal) | Yes; Optional |
| WinCC Advanced (TIA Portal) | Yes; Optional |
| WinCC Professional (TIA Portal) | Yes; Optional |
Mechanics/material
| Enclosure material (front) – Plastic | Yes |
| Enclosure material (front) – Aluminum | No |
| Enclosure material (front) – Stainless steel | No |

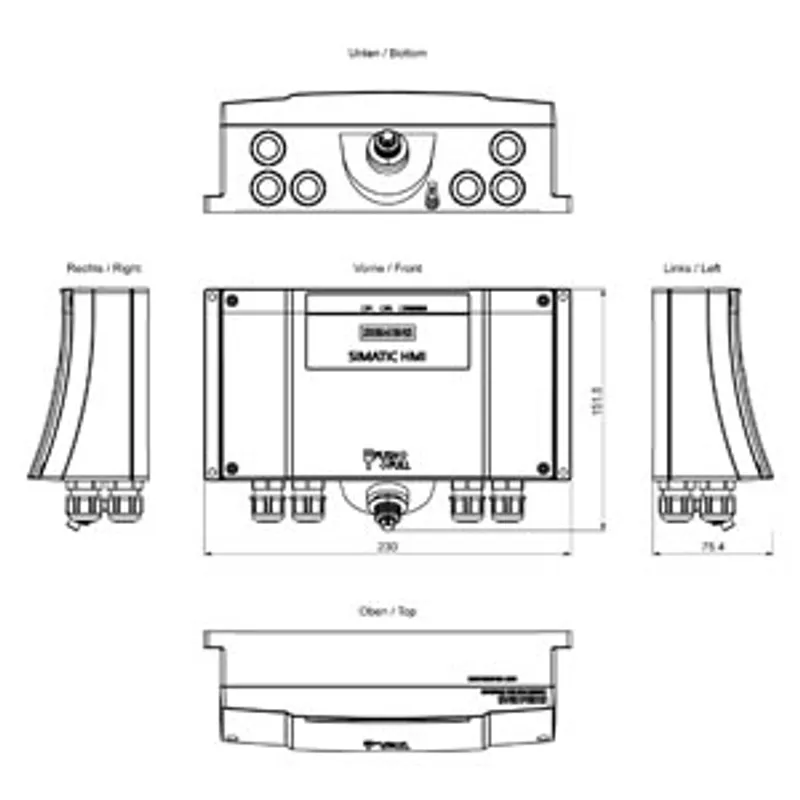

Dimensions
| Width | 230 mm |
| Height | 151.5 mm |
| Depth | 75.4 mm |
Weights
| Weight (without packaging) | 0.72 kg |
| Weight (with packaging) | 0.8 kg |
