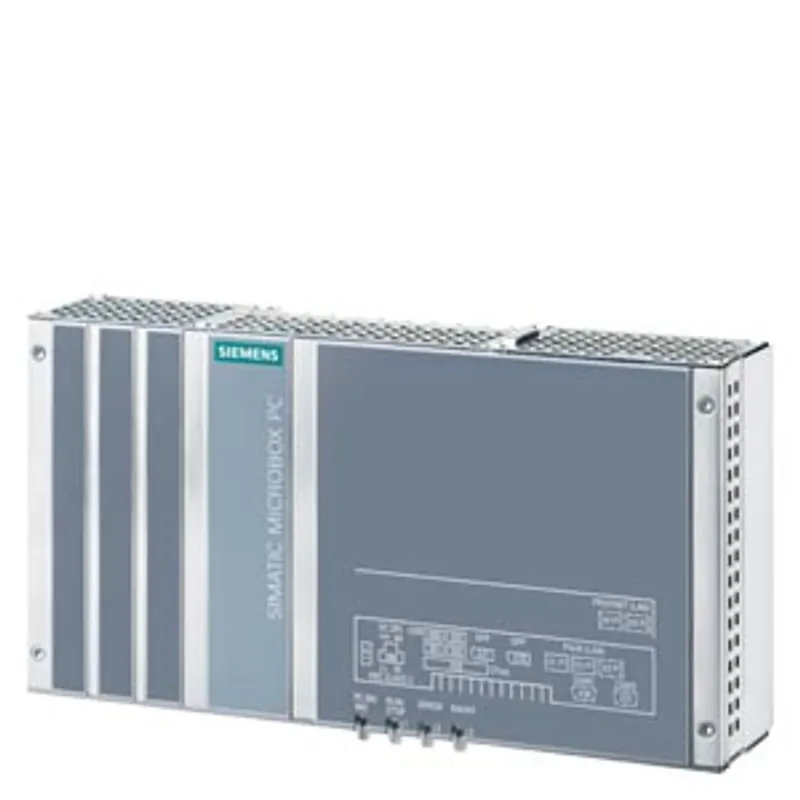

Siemens 6AG4141-5BC30-0FW8
SIMATIC IPC427E (Microbox PC), HD graphic onboard, 4x USB V3.0 (high current), PCIe (optional)
- MPN
- 6AG4141-5BC30-0FW8
- Category
- SIMATIC IPC427E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG4141-5BC30-0FW8?
SIMATIC IPC427E (Microbox PC), HD graphic onboard, 4x USB V3.0 (high current), PCIe (optional), Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); mounting onto standard rail; 16 GB; 2x RS232/485; without PCIe; without operating system, without exchangeable mass storage; 240 GB solid-state drive SATA; Industrial Edge – SIMATIC; 24 V DC industrial power supply and TPM
Specifications
General information
| Product type designation | IPC427E |
Installation type/mounting
| Mounting | standard rail |
| Design | Box PC, built-in unit |
Supply voltage
| Type of supply voltage | 24 V DC |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
Processor
| Processor type | Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB cache) |
| Chipset | Intel C236 / Intel H110 |
Graphic
| Graphics controller | Intel HD graphics controller |
Drives
| SSD | Yes; ≥ 240 GB optional |
Storage
| Type of memory | DDR4-2400 SO-DIMM |
| Capacity of main memory, max. | 16 Gbyte |
Hardware configuration
| Slots — Number of PCI slots | 0 |
| Slots — Number of compact flash slots | 1; CFast |
Interfaces
| Number of industrial Ethernet interfaces | 3; Ethernet (2x RJ45, optional 3x RJ45) |
| serial interface | 2x COM (1x RS 232; 1x RS 232 / 422 / 485) |
| Video interfaces — Graphics interface | 2x DisplayPort |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes |
Interrupts/diagnostics/status information
| LED status display | 1x power, 3x user |
| Bus diagnostics | Yes |
Integrated Functions
| Monitoring functions — Temperature monitoring | Yes |
| Monitoring functions — Fan | No |
| Monitoring functions — Monitoring function via network | Optional |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| UL approval | Yes |
| UL approval — UL 508 | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| FCC | Yes |
| Use in hazardous areas — ATEX Zone 2 | Yes; Optional |
| Use in hazardous areas — IECEx Zone 2 | Yes; Optional |
| Use in hazardous areas — cULus Class I Zone 2, Division 2 | Yes; Optional |
| Marine approval — Germanischer Lloyd (GL) | Yes |
| Marine approval — American Bureau of Shipping (ABS) | Yes |
| Marine approval — Bureau Veritas (BV) | Yes |
| Marine approval — Det Norske Veritas (DNV) | Yes |
| Marine approval — Korean Register of Shipping (KRS) | Yes |
| Marine approval — Lloyds Register of Shipping (LRS) | Yes |
| Marine approval — Nippon Kaiji Kyokai (Class NK) | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 55 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Operating systems
| pre-installed operating system | SIMATIC Industrial OS |
Dimensions
| Width | 262 mm |
| Height | 139.7 mm |
| Depth | 55.5 mm; without PCIe |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG4141-5BC30-0FW8: frequently asked questions
When can 6AG4141-5BC30-0FW8 be shipped?
6AG4141-5BC30-0FW8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG4141-5BC30-0FW8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG4141-5BC30-0FW8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG4141-5BC30-0FW8, subject to availability and destination.
