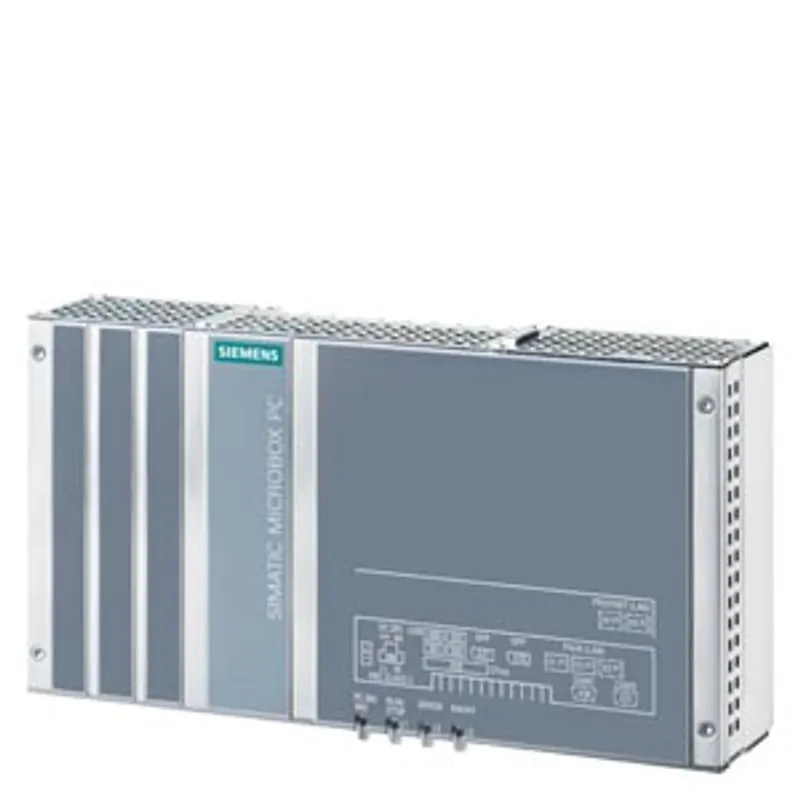

Siemens 6AG4141-5AB17-0FA0
SIMATIC IPC427E (Microbox PC); HD graphic onboard, 4x USB V3.0 (high current); PCIE (optional)
- MPN
- 6AG4141-5AB17-0FA0
- Category
- SIMATIC IPC427E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG4141-5AB17-0FA0?
SIMATIC IPC427E (Microbox PC); HD graphic onboard, 4x USB V3.0 (high current); PCIE (optional); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); w/o mounting accessories; working memory 8GB; w/o RS232/485; 1x PCIe (x4); Windows 10 IoT Enterprise 2016 LTSB (64Bit) f. Celeron, I3/I5; w/o replaceable mass storage; Internal mass storage: 240 GB Solid-State Drive SATA; w/o SIMATIC Software; 24 V DC industrial power supply
Specifications
General information
| Product type designation | IPC427E |
Supply voltage
| Type of supply voltage | 24 V DC |
Processor
| Processor type | Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB cache) |
Storage
| Capacity of main memory, max. | 8 Gbyte |
Hardware configuration
| Slots — Number of PCI slots | 0 |
| Slots — Number of PCI slots | 1 |
Interfaces
| Number of industrial Ethernet interfaces | 3 |
| Number of PROFINET interfaces | 3 |
Degree and class of protection
| IP degree of protection | IP20 |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 45 °C |
Operating systems
| pre-installed operating system | Windows 10 IoT Enterprise 2016 LTSB, 64bit, MUI |
Dimensions
| Width | 262 mm |
| Height | 133 mm |
| Depth | 55.5 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG4141-5AB17-0FA0: frequently asked questions
When can 6AG4141-5AB17-0FA0 be shipped?
6AG4141-5AB17-0FA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG4141-5AB17-0FA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG4141-5AB17-0FA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG4141-5AB17-0FA0, subject to availability and destination.
