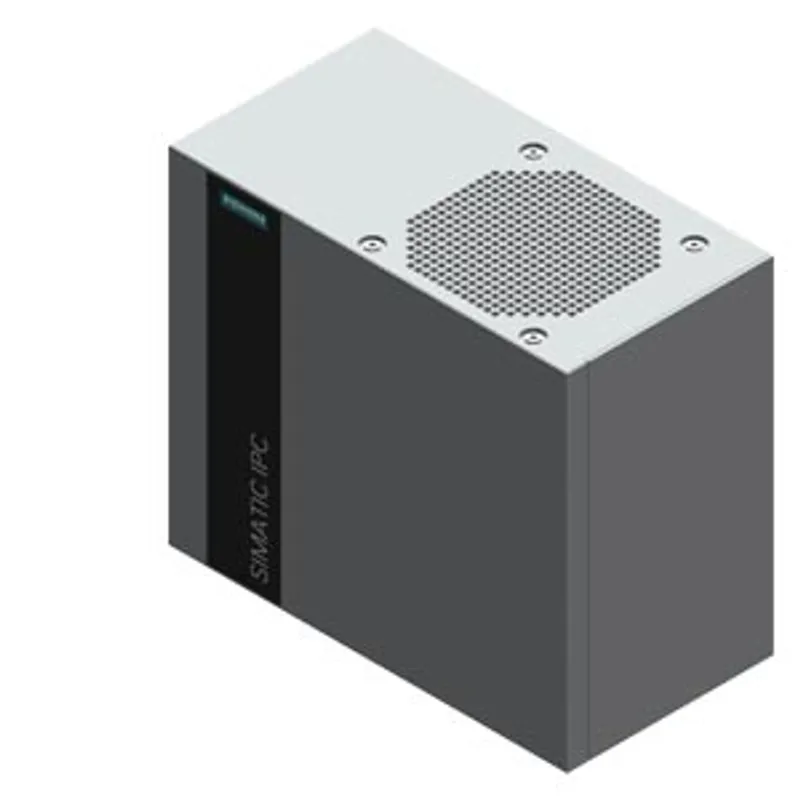

Siemens 6AG4025-0DE20-6CA0
SIMATIC IPC527G (Box PC); Core i7-6700 (4C/8T, 3,4 (4,0) GHz); 256 GB SSD, internal; 8 GB DDR4
- MPN
- 6AG4025-0DE20-6CA0
- Category
- SIMATIC IPC527G
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG4025-0DE20-6CA0?
SIMATIC IPC527G (Box PC); Core i7-6700 (4C/8T, 3,4 (4,0) GHz); 256 GB SSD, internal; 8 GB DDR4; Windows 10 IoT Enterprise LTSC 2019 64 bit, MUI; 2x Gigabit Ethernet (IE/PN); 1x display port, 1x VGA; 4x USB 3.0, 2x USB 2.0; 2x RS232/485/422 (can be selected); 2x RS232, 1x 8bit DIO, 1xPCIex16,1x PCIex4; 2xPCIex1; 100/240 V AC power supply without line cable
Specifications
General information
| Product type designation | IPC527G |
Installation type/mounting
| Mounting | Wall mounting, portrait mounting, desktop mounting |
| Design | Box PC, built-in unit |
Supply voltage
| Type of supply voltage | 100/240V AC (autorange) 50/60 Hz |
| Line frequency — Rated value 50 Hz | Yes |
| Line frequency — Rated value 60 Hz | Yes |
Processor
| Processor type | Core i7-6700 (4C/4T, 3.6 (4.0) GHz, 8 MB Cache) |
| Chipset | Intel H110 |
Graphic
| Graphics controller | Onboard Intel HD graphics 530/510 integrated in processor |
| Graphics card | Yes |
Drives
| SSD | Yes; 256 GB SSD |
Storage
| Type of memory | DDR4-2666 SO-DIMM |
| Main memory | 8 GB RAM |
| Capacity of main memory, max. | 32 Gbyte |
Hardware configuration
| Slots — Number of PCI slots | 2 |
| Slots — Number of PCI slots | 2 |
Interfaces
| Number of industrial Ethernet interfaces | 2; 2x Gigabit Ethernet (IE/PN), RJ45 |
| Number of PROFINET interfaces | 2 |
| serial interface | 2x RS 232 / 485 / 422, 2x RS 232 |
| Video interfaces — Graphics interface | 1x DisplayPort, 1x VGA |
| Industrial Ethernet — Industrial Ethernet interface — 100 Mbps | Yes |
| Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps | Yes |
Interrupts/diagnostics/status information
| LED status display | POWER, HDD |
Degree and class of protection
| IP degree of protection | IP20 |
| IP (at the front) | IP20 |
| IP (rear) | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes; No. 61010-1-12, No. 61010-2-201 |
| UL approval | Yes |
| cULus | Yes; UL 61010-1, UL 61010-2-201 |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| FCC | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 45 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | tested according to IEC 60068-2-6: 10 Hz to 58 Hz: 0.0375 mm, 58 Hz to 200 Hz: 4.9 m/s² |
Operating systems
| pre-installed operating system | Windows 10 IoT Enterprise 2019 LTSC, 64 bit, MUI |
| pre-installed operating system — Windows 10 Enterprise | Yes; Windows 10 IoT Enterprise 2019 LTSC, 64 bit, MUI |
Dimensions
| Width | 260 mm |
| Height | 135 mm |
| Depth | 225 mm |
