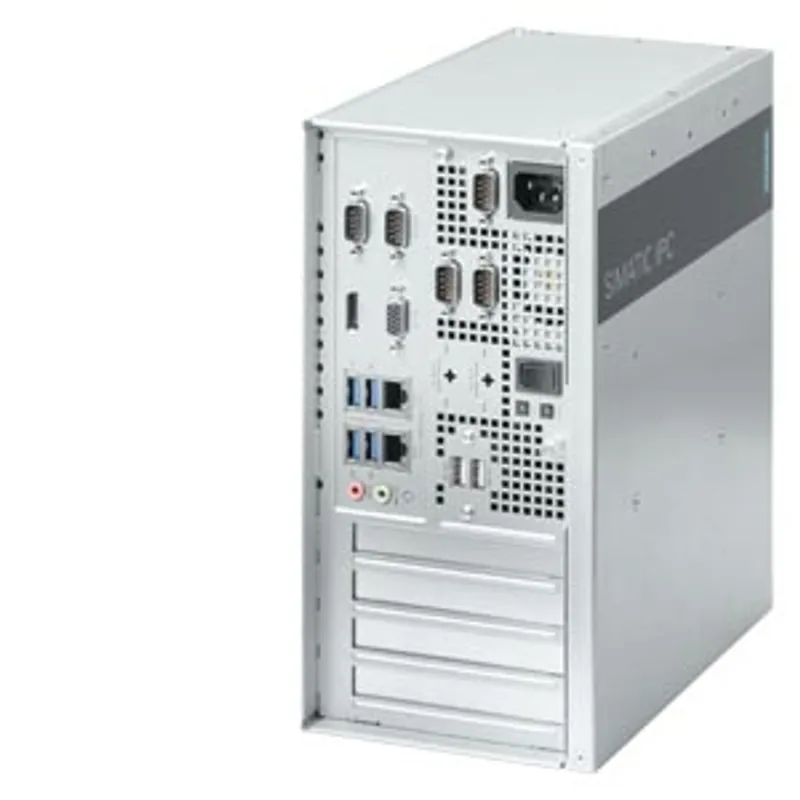

Siemens 6AG4025-0CE20-2BB0

SIMATIC IPC527G (Box PC); Core i5-6500 (4C/4T, 3.2 (3.6) GHz); 256 GB SSD, internal; 8 GB DDR4

MPN: 6AG4025-0CE20-2BB0
Category: SIMATIC IPC527G

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG4025-0CE20-2BB0?

SIMATIC IPC527G (Box PC); Core i5-6500 (4C/4T, 3.2 (3.6) GHz); 256 GB SSD, internal; 8 GB DDR4; Windows 7 Ultimate 64 bit, MUI; 2x Gigabit Ethernet (IE/PN); 1x display port, 1x VGA; 4x USB 3.0, 2x USB 2.0; 2x RS232/485/422 (can be selected); 2x RS232, 1x 8bit DIO, 2x PCI; 1xPCIex16,1x PCIe x1; 100/240 V AC power power supply without line cable

Specifications

General information

Product type designation

IPC527G

Installation type/mounting

Mounting	Wall mounting, portrait mounting, desktop mounting
Design	Box PC, built-in unit

Supply voltage

Type of supply voltage	100/240V AC (autorange) 50/60 Hz
Line frequency — Rated value 50 Hz	Yes
Line frequency — Rated value 60 Hz	Yes

Processor

Processor type	Core i5-6500 (4C/4T, 3.2 (3.6) GHz, 6 MB Cache)
Chipset	Intel H110

Graphic

Graphics controller	Onboard Intel HD graphics 530/510 integrated in processor
Graphics card	Yes

Drives

Hard disk

1 TB HDD

Storage

Type of memory	DDR4-2666 SO-DIMM
Main memory	8 GB RAM
Capacity of main memory, max.	32 Gbyte

Hardware configuration

Slots — Number of PCI slots	2
Slots — Number of PCI slots	2

Interfaces

Number of industrial Ethernet interfaces	2; 2x Gigabit Ethernet (IE/PN), RJ45
Number of PROFINET interfaces	2
serial interface	2x RS 232 / 485 / 422, 2x RS 232
Video interfaces — Graphics interface	1x DisplayPort, 1x VGA
Industrial Ethernet — Industrial Ethernet interface — 100 Mbps	Yes
Industrial Ethernet — Industrial Ethernet interface — 1000 Mbps	Yes

Interrupts/diagnostics/status information

LED status display

POWER, HDD

Degree and class of protection

IP degree of protection	IP20
IP (at the front)	IP20
IP (rear)	IP20

Standards, approvals, certificates

CE mark	Yes
CSA approval	Yes; No. 61010-1-12, No. 61010-2-201
UL approval	Yes
cULus	Yes; UL 61010-1, UL 61010-2-201
RCM (formerly C-TICK)	Yes
KC approval	Yes
EAC (formerly Gost-R)	Yes
FCC	Yes

Ambient conditions

Ambient temperature during operation — min.	0 °C
Ambient temperature during operation — max.	45 °C
Ambient temperature during storage/transportation — min.	-20 °C
Ambient temperature during storage/transportation — max.	60 °C
Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6	tested according to IEC 60068-2-6: 10 Hz to 58 Hz: 0.0375 mm, 58 Hz to 200 Hz: 4.9 m/s²

Operating systems

pre-installed operating system	Windows 7 Ultimate (Multi-Language) 64-bit
pre-installed operating system — Windows 7	Yes; Ultimate 64 bit

Dimensions

Width	260 mm
Height	135 mm
Depth	225 mm
