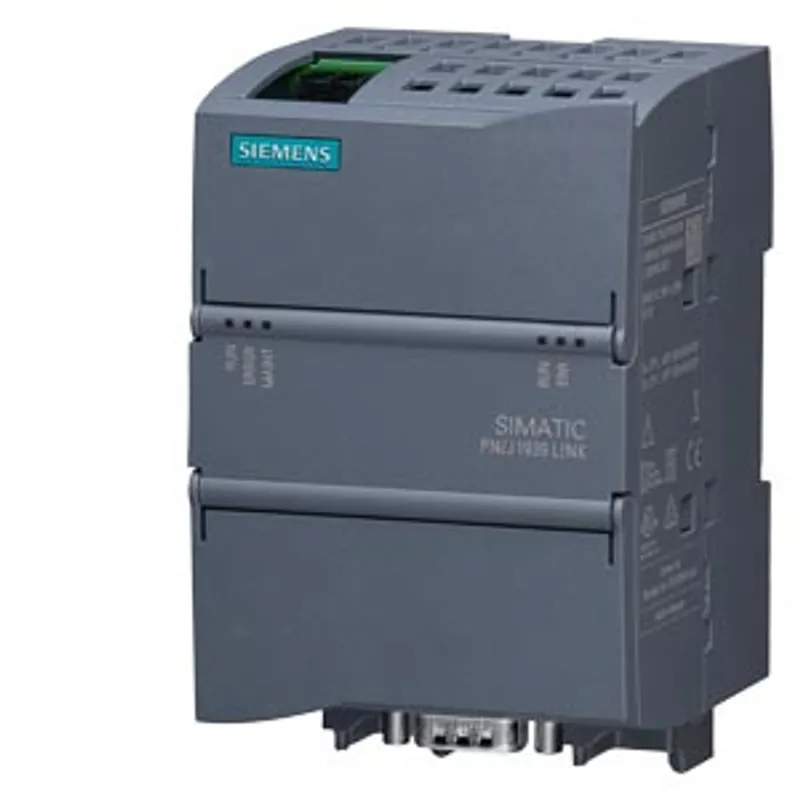

SIPLUS PN/J1939 link TX rail based on 6BK1623-0AA00-0AA0 with conformal coating, -40…+70 °C

MPN: 6AG2623-0AA00-4AA0
Category: SIPLUS PN/J1939 LINK TX RAIL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG2623-0AA00-4AA0?

SIPLUS PN/J1939 link TX rail based on 6BK1623-0AA00-0AA0 with conformal coating, -40…+70 °C, ST1/2: +85 °C for 10 minutes, gateway from Profinet to J1939 networks, IP20

Specifications

General information

Product type designation	PN/J1939 LINK
Firmware version — FW update possible	Yes
Vendor identification (VendorID)	0x002A
based on	6BK1623-0AA00-0AA0
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Engineering with — STEP 7 TIA Portal configurable/integrated from version	see entry ID: 109746275
Engineering with — PROFINET from GSD version/GSD revision	GSDML V2.3.x

Installation type/mounting

Mounting	DIN rail, wall mounting, portrait mounting
Mounting position	any
Recommended mounting position	Horizontal
Rail mounting	Yes
Control cabinet installation	Yes

Supply voltage

Type of supply voltage	DC
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes
Overvoltage protection	Yes
Short-circuit protection	Yes
Mains buffering — Mains/voltage failure stored energy time	10 ms; PN side

Input current

Current consumption (rated value)	0.09 A
Current consumption, max.	0.11 A

Power loss

Power loss, typ.

2.2 W

Interfaces

Interfaces/bus type	2x Ethernet (RJ45), 1x Sub-D (9-pin)
Supports protocol for PROFINET IO — automatic detection of transmission rate	No
Supports protocol for PROFINET IO — Transmission rate, max.	100 Mbit/s
Supports protocol for PROFINET IO — Number of RJ45 ports	2
Supports protocol for PROFINET IO — Number of FC (FastConnect) connections	2
PROFINET functions — Assignment of the IP address, supported	Yes
PROFINET functions — Assignment of the device name, supported	Yes

1. Interface

Interface type	J1939 according to the standard "SAE J1939"
Isolated	Yes; 500 V AC or 707 V DC
Interface types — Number of ports	1
Interface types — Design of the connection	9-pin sub D socket
CAN — CAN operating modes	J1939 according to the standard "SAE J1939"
CAN — Transmission rate, min.	100 kbit/s
CAN — Transmission rate, max.	500 kbit/s
CAN — max. number of devices	30
J1939 — Addressable ECUs, max.	30
J1939 — Logical nodes, max.	253
J1939 — PDU 1	Yes
J1939 — PDU 2	Yes
J1939 — DM data	Yes
J1939 — BAM	Yes
J1939 — CMDT	Yes

2. Interface

Interface type	PROFINET
Isolated	Yes; 1 500 V AC or 2 250 V DC
Interface types — RJ 45 (Ethernet)	Yes
Interface types — Number of ports	2
Interface types — integrated switch	Yes
Protocols — PROFINET IO device	Yes
Protocols — Open IE communication	Yes

Interrupts/diagnostics/status information

Status indicator	Yes
Alarms	Yes
Diagnostics function	Yes
Diagnostics indication LED — RUN LED	Yes
Diagnostics indication LED — ERROR LED	Yes
Diagnostics indication LED — MAINT LED	Yes
Diagnostics indication LED — LINK LED	Yes
Diagnostics indication LED — RX/TX LED	Yes

Potential separation

Potential separation exists

Yes

Isolation

Isolation tested with

750 V DC (type test) and according to EN 50155 (routine test)

Degree and class of protection

IP degree of protection

IP20

Standards, approvals, certificates

Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	50.8 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	14.4 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	36.8 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.52 kg
Railway application — EN 50121-3-2	Yes; EMC for rail vehicles
Railway application — EN 50121-4	Yes; EMC for signal and telecommunications systems
Railway application — EN 50124-1	Yes; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0.5 kV; UNm = 24 V DC
Railway application — EN 50125-1	Yes; Rail vehicles - see ambient conditions
Railway application — EN 50125-2	Yes; Stationary electrical equipment - see ambient conditions
Railway application — EN 50125-3	Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track)
Railway application — EN 50155	Yes; Rail vehicles - temperature class OT4, ST1/ST2, horizontal mounting position
Railway application — EN 61373	Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B
Railway application — Fire protection acc. to EN 45545-2	Yes; For proof of conformity, see Service & Support

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — horizontal installation, max.	70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155)
Ambient temperature during operation — vertical installation, min.	-40 °C; = Tmin
Ambient temperature during operation — vertical installation, max.	55 °C; = Tmax
Ambient temperature during operation — ceiling installation, min.	-40 °C; = Tmin
Ambient temperature during operation — ceiling installation, max.	45 °C; = Tmax
Ambient temperature during operation — floor installation, min.	-40 °C; = Tmin
Ambient temperature during operation — floor installation, max.	45 °C; = Tmax
Ambient temperature during storage/transportation — min.	-40 °C
Ambient temperature during storage/transportation — max.	85 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	2 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to biologically active substances according to EN 60721-3-5	Yes; Class 5B2 mold, fungus and dry rot spores (with the exception of fauna); Class 5B3 on request
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to chemically active substances according to EN 60721-3-5	Yes; Class 5C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on land craft, rail vehicles and special-purpose vehicles — to mechanically active substances according to EN 60721-3-5	Yes; Class 5S3 incl. sand, dust; *
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Electronic equipment on rolling stock acc. to EN 50155	Yes; Class PC2 protective coating acc. to EN 50155:2017
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

Dimensions

Width	70 mm
Height	112 mm
Depth	75 mm

Weights

Weight, approx.

212 g

Other

Note:

for use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A, Online Support article 109736776
