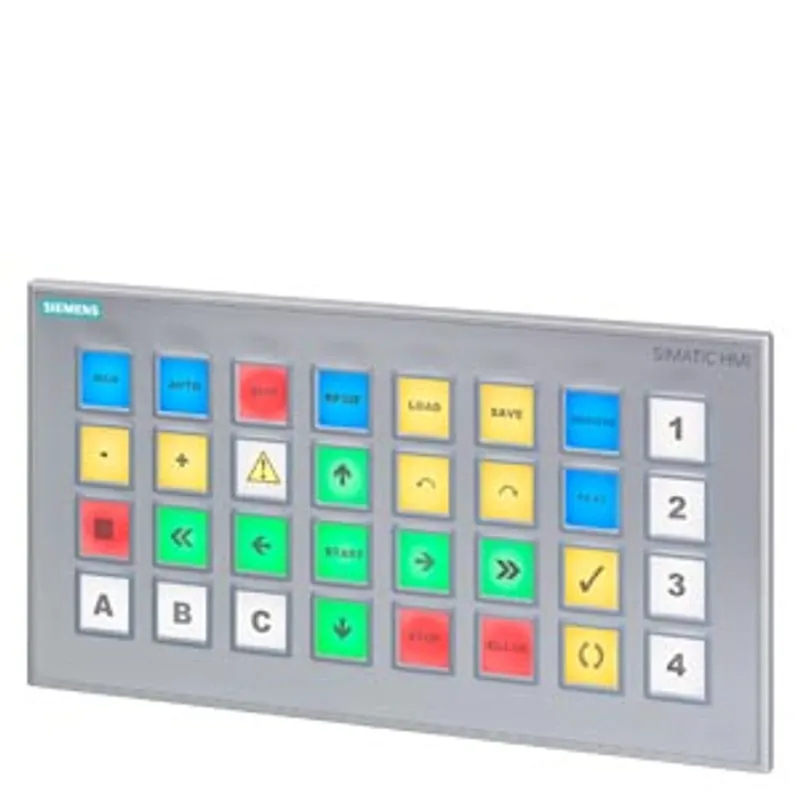

Siemens 6AG1688-3EH47-2AX0
SIPLUS HMI KP32F PN based on 6AV3688-3EH47-0AX0 with conformal coating, -20…+55 °C, Key Panel
- MPN
- 6AG1688-3EH47-2AX0
- Category
- SIPLUS HMI KP8/KP8F/KP32F
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1688-3EH47-2AX0?
SIPLUS HMI KP32F PN based on 6AV3688-3EH47-0AX0 with conformal coating, -20…+55 °C, Key Panel, 32 short-stroke keys with multi-colored LEDs, PROFINET interfaces with PROFIsafe, 16 DI+16 DI/DQ, 4 safety DI pins, 24 V DC can be looped through, parameterizable as of STEP 7 V5.5
Specifications
General information
| Product type designation | KP32F PN |
| based on | 6AV3688-3EH47-0AX0 |
Control elements
| With parameterizable keys | Yes |
| Keyboard — Membrane keyboard — user-definable label membrane keys | Yes |
| Keyboard — Function keys — Number of function keys | 32 |
| Keyboard — Short-stroke keys — Number of short-stroke keys | 32 |
| Expansions for operator control of the process — DP direct LEDs (LEDs as S7 output I/O) | 8; Adjustable brightness |
| Expansions for operator control of the process — Number of color modes for LED | 5; red, green, blue, yellow, white |
| Expansions for operator control of the process — Direct keys (keys as S7 input I/O) | 32 |
Installation type/mounting
| Mounting type | Mounting clip |
| Mounting position | vertical |
| Rack mounting | No |
| Front mounting | Yes |
| Rail mounting | No |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 30°; To the front/rear |
| Number of slots for command devices and signaling units | 0 |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V; 24 V looped through at connector, no interruption on pulling |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 1 A |
Digital inputs
| Number of digital inputs | 32; Total inputs and outputs max. 32 and 2x SIL 2 or 4x SIL 3 |
| Input voltage — Rated value (DC) | 24 V |
Digital outputs
| Number of digital outputs | 16; Max. 32 inputs and outputs (total) |
| Short-circuit protection | Yes |
| Switching capacity of the outputs — with resistive load, max. | 100 mA |
| Output voltage — Rated value (DC) | 24 V; Non-isolated |
| Total current of the outputs — Current per channel, max. | 100 mA |
| Total current of the outputs — Current per group, max. | 800 mA |
Interfaces
| Number of industrial Ethernet interfaces | 2; For the construction of lines and rings without external switch |
| Number of PROFINET interfaces | 2; Incl. switch |
| Industrial Ethernet — Industrial Ethernet status LED | 2; Per port |
| Industrial Ethernet — Number of ports of the integrated switch | 2; Per port |
Protocols
| PROFINET | Yes; incl. shared device, 3rd party PLC |
| PROFINET IO | Yes |
| PROFINET CBA | No |
| IRT | Yes |
| PROFIsafe | Yes; 2x SIL 3 (two-channel) or 4x SIL 2 (single-channel) emergency stop sensors |
| PROFIBUS | No |
| EtherNet/IP | No |
| MPI | No |
| AS-Interface | No |
| EIB/KNX | No |
| Protocols (Ethernet) — TCP/IP | No |
| Redundancy mode — Media redundancy — MRP | Yes |
| Further protocols — AS-Interface Safety at Work | No |
| Further protocols — CAN | No |
| Further protocols — Data-Highway | No |
| Further protocols — DeviceNet | No |
| Further protocols — DeviceNet Safety | No |
| Further protocols — Foundation Fieldbus | No |
| Further protocols — INTERBUS | No |
| Further protocols — INTERBUS-Safety | No |
| Further protocols — Local Operating Network | No |
| Further protocols — MODBUS | No |
| Further protocols — SafetyBUS p | No |
| Further protocols — SERCOS | No |
| Further protocols — SUCOnet | No |
| Further protocols — other bus systems | No |
Test commissioning functions
| Illuminant test | Yes; During switch on |
| Key and signal lamp test | Yes; automatically when switching on |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas | Yes; Group 1, measured at a distance of 10 m |
| Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas | No |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) — Enclosure Type 4 at the front | No |
| NEMA (front) — Enclosure Type 4x at the front | Yes; Incl. NEMA12 |
Standards, approvals, certificates
| Suitable for safety functions | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 113 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 38.5 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 82.3 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -8.27 kg |
| Marine approval — Germanischer Lloyd (GL) | No |
| Marine approval — American Bureau of Shipping (ABS) | No |
| Marine approval — Bureau Veritas (BV) | No |
| Marine approval — Det Norske Veritas (DNV) | No |
| Marine approval — Lloyds Register of Shipping (LRS) | No |
| Marine approval — Nippon Kaiji Kyokai (Class NK) | No |
| Marine approval — Polski Rejestr Statkow (PRS) | No |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; = Tmin (incl. condensation/frost) |
| Ambient temperature during operation — max. | 55 °C; = Tmax |
| Ambient temperature during operation — Operation (vertical installation) — For vertical installation, min. | -20 °C; = Tmin |
| Ambient temperature during operation — Operation (vertical installation) — For vertical installation, max. | 55 °C; = Tmax |
| Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, min. | -20 °C; = Tmin |
| Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, max. | 45 °C; = Tmax |
| Ambient temperature during operation — Operation (vertical installation, portrait format) — For vertical installation, min. | -20 °C; = Tmin |
| Ambient temperature during operation — Operation (vertical installation, portrait format) — For vertical installation, max. | 55 °C; = Tmax |
| Ambient temperature during operation — Operation (max. tilt angle, portrait format) — At maximum tilt angle, min. | -20 °C; = Tmin |
| Ambient temperature during operation — Operation (max. tilt angle, portrait format) — At maximum tilt angle, max. | 45 °C; = Tmax |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna) |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Configuration
| Configuration software — STEP 7 Basic (TIA Portal) | Yes |
| Configuration software — STEP 7 Professional (TIA Portal) | Yes |
Functionality under WinCC (TIA Portal)
| Process coupling — S7-1200 | Yes; with ET 200pro CPU and ET 200S CPU |
| Process coupling — S7-1500 | Yes |
| Process coupling — S7-200 | No |
| Process coupling — S7-300/400 | Yes; with F-CPU: STEP 7 V11 SP1 or higher and Safety V11 (or higher), without F-CPU STEP 7 or SIMATIC STEP 7 Basic V11 (or higher) |
| Process coupling — LOGO! | No |
| Process coupling — WinAC | Yes |
| Process coupling — SINUMERIK | No |
| Process coupling — SIMOTION | No |
| Process coupling — Allen Bradley (EtherNet/IP) | No |
| Process coupling — Allen Bradley (DF1) | No |
| Process coupling — Mitsubishi (MC TCP/IP) | No |
| Process coupling — Mitsubishi (FX) | No |
| Process coupling — OMRON (FINS TCP) | No |
| Process coupling — OMRON (Host Link) | No |
| Process coupling — Modicon (Modbus TCP/IP) | No |
| Process coupling — Modicon (Modbus RTU) | No |
Mechanics/material
| Enclosure material (front) — Plastic | No |
| Enclosure material (front) — aluminum | Yes |
| Enclosure material (front) — Stainless steel | No |
| Service life — Short-stroke keys (in switching cycles) | 1 500 000 |
| Service life — LEDs (ON period) | 100 % |
Dimensions
| Width of the housing front | 295 mm |
| Height of housing front | 155 mm |
| Mounting cutout, width | 277 mm; Max. thickness of mounting plate 2 - 6 mm |
| Mounting cutout, height | 137 mm |
| mounting depth | 37 mm; Incl. angled SIMATIC Ethernet connector |
Weights
| Weight (without packaging) | 1 220 g |
