SIPLUS HMI KP8/KP8F/KP32F Parts
Compare SIPLUS HMI KP8/KP8F/KP32F
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | Keyboard — Function keys — Number of function keys | Keyboard — Short-stroke keys — Number of short-stroke keys | Mounting cutout, height |
|---|---|---|---|---|---|
| 6AG1688-3EH47-2AX0 | KP32F PN | 6AV3688-3EH47-0AX0 | 32 | 32 | 137 mm |

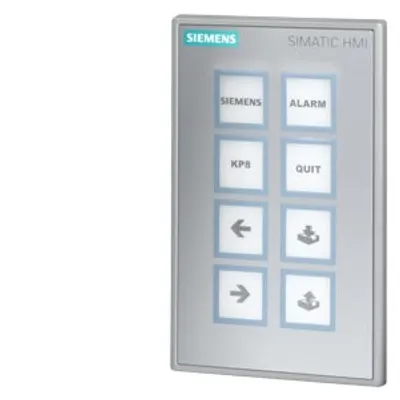

| 6AG1688-3AY36-2AX0 | KP8 PN | 6AV3688-3AY36-0AX0 | 8 | 8 | 129 mm |

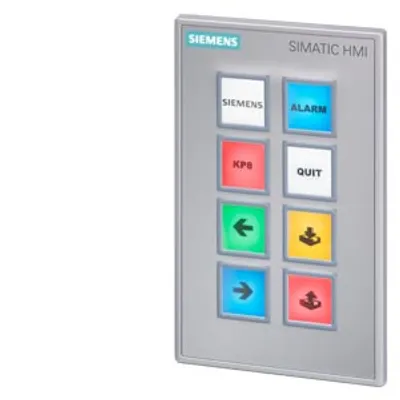

| 6AG1688-3AF37-2AX0 | KP8F PN | 6AV3688-3AF37-0AX0 | 8 | 8 | 129.7 mm |
Common to all listed parts
| With parameterizable keys | Yes |
| Keyboard — Membrane keyboard — user-definable label membrane keys | Yes |
| Expansions for operator control of the process — DP direct LEDs (LEDs as S7 output I/O) | 8; Adjustable brightness |
| Expansions for operator control of the process — Number of color modes for LED | 5; red, green, blue, yellow, white |
| Mounting type | Mounting clip |
| Mounting position | vertical |
| Rack mounting | No |
| Rail mounting | No |
