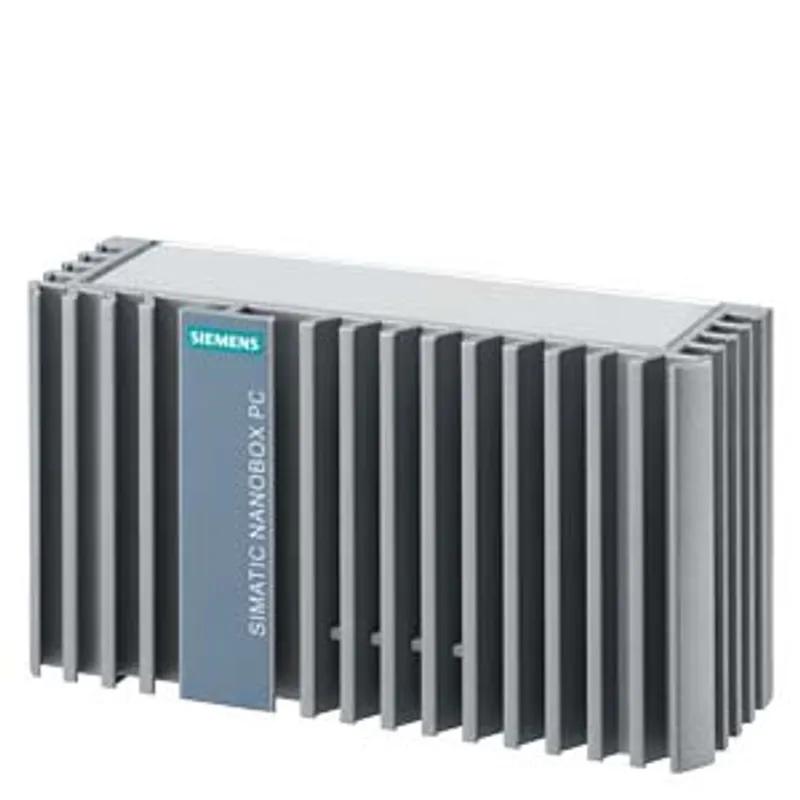

Siemens 6AG1647-8BE72-4HA1
SIPLUS IPC 227E ET based on 6ES7647-8BE72-7HA1 with conformal coating, -25…+60 °C, 1x display port
- MPN
- 6AG1647-8BE72-4HA1
- Category
- SIPLUS IPC227E ET
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1647-8BE72-4HA1?
SIPLUS IPC 227E ET based on 6ES7647-8BE72-7HA1 with conformal coating, -25…+60 °C, 1x display port; 2x 10/100/1000 Mbps Ethernet RJ45; 1x USB3.0, 3x USB2.0; CFast slot; 24 V DC industrial power supply Celeron E3845 ET (4C/4T) with TPM (not for China); 4 GB ET with NVRAM; box: basic with COM 1/2; Windows 10 IoT Enterprise LTSB 2016, 64-bit, MUI (en, de, fr, it, es) 60 GB SSD ET, not exchangeable without SIMATIC software
Specifications
General information
| Product type designation | IPC227E |
| based on | 6ES7647-8BE72-7HA1 |
Supply voltage
| Type of supply voltage | 24 V DC |
Processor
| Processor type | Intel Atom E3845 |
Graphic
| Graphics card | Yes |
Drives
| SSD | Yes |
Storage
| Capacity of main memory, max. | 4 Gbyte |
Hardware configuration
| Slots — Number of PCI slots | 0 |
Interfaces
| Number of industrial Ethernet interfaces | 2; 2x Ethernet (RJ45) |
| Number of PROFINET interfaces | 2 |
Degree and class of protection
| IP degree of protection | IP40 |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
Operating systems
| pre-installed operating system | Windows 10 IoT Enterprise 2016 LTSB, 64bit, MUI |
Dimensions
| Width | 191 mm |
| Height | 100 mm |
| Depth | 60 mm |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG1647-8BE72-4HA1: frequently asked questions
When can 6AG1647-8BE72-4HA1 be shipped?
6AG1647-8BE72-4HA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG1647-8BE72-4HA1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG1647-8BE72-4HA1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1647-8BE72-4HA1, subject to availability and destination.
