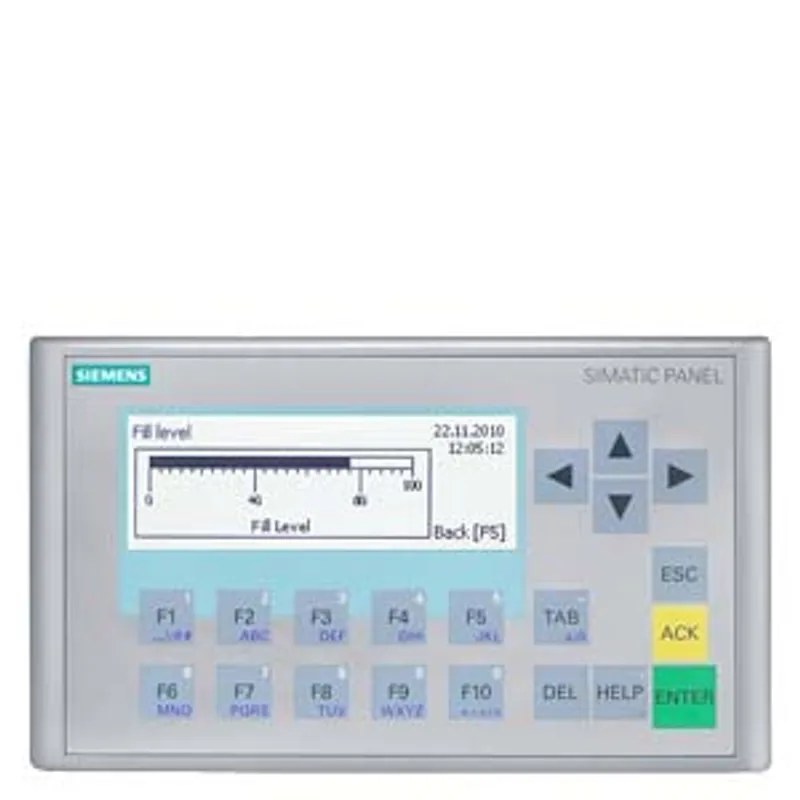

Siemens 6AG1647-0AH11-2AX1
SIPLUS HMI KP300 Basic mono PN, based on 6AV6647-0AH11-3AX1 with conformal coating, -25...+60 °C
- MPN
- 6AG1647-0AH11-2AX1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1647-0AH11-2AX1?
SIPLUS HMI KP300 Basic mono PN, based on 6AV6647-0AH11-3AX1 with conformal coating, -25...+60 °C
Specifications
General information
| Product type designation | KP300 Basic mono PN |
| based on | 6AV6647-0AH11-3AX1 |
Display
| Design of display | FSTN |
| Screen diagonal | 3.6 in |
| Display width | 87 mm |
| Display height | 31 mm |
| Number of colors | 4; backlit display only (white, red, green, yellow) |
| Resolution (pixels) — Horizontal image resolution | 240 pixel |
| Resolution (pixels) — Vertical image resolution | 80 pixel |
| Backlighting — MTBF backlighting (at 25 °C) | 50 000 h |
| Backlighting — Backlight dimmable | No |
Control elements
| Keyboard — Function keys — Number of function keys | 10 |
| Keyboard — Function keys — Number of function keys with LEDs | 0 |
| Keyboard — Keys with LED | No |
| Keyboard — System keys | Yes |
| Keyboard — Numeric keyboard | Yes; Keyboard |
| Keyboard — alphanumeric keyboard | Yes; Keyboard |
| Touch operation — Design as touch screen | No; without |
Installation type/mounting
| Mounting position | vertical |
| Rack mounting | No |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | No |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 0.1 A |
| Starting current inrush I²t | 0.5 A²·s |
Power
| Active power input, typ. | 3 W |
Processor
| Processor type | RISC 32 bit |
Storage
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 1 Mbyte |
Type of output
| Acoustics — Buzzer | No |
| Acoustics — Speaker | No |
Time of day
| Clock — Hardware clock (real-time) | No |
| Clock — Software clock | Yes |
| Clock — retentive | No |
| Clock — synchronizable | Yes |
Interfaces
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 0 |
| Number of RS 422 interfaces | 0 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 0 |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 0 |
| With software interfaces | No |
| Industrial Ethernet — Industrial Ethernet status LED | 2 |
Protocols
| PROFINET | Yes |
| Supports protocol for PROFINET IO | No |
| IRT | No |
| PROFIBUS | No |
| EtherNet/IP | Yes |
| MPI | No |
| Protocols (Ethernet) — TCP/IP | Yes |
| Protocols (Ethernet) — DHCP | Yes |
| Protocols (Ethernet) — SNMP | Yes |
| Protocols (Ethernet) — DCP | Yes |
| Protocols (Ethernet) — LLDP | Yes |
| WEB characteristics — HTTP | No |
| WEB characteristics — HTML | No |
| Redundancy mode — Media redundancy — MRP | No |
| Further protocols — CAN | No |
| Further protocols — MODBUS | Yes; Modicon (MODBUS TCP/IP) |
Interrupts/diagnostics/status information
| Diagnoses — Diagnostic information readable | No |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas | Yes |
| Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas | No |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) — Enclosure Type 4 at the front | Yes |
| NEMA (front) — Enclosure Type 4x at the front | Yes |
Ambient conditions
| Ambient temperature during operation — Operation (vertical installation) — For vertical installation, min. | -25 °C; = Tmin |
| Ambient temperature during operation — Operation (vertical installation) — For vertical installation, max. | 60 °C; = Tmax |
| Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, min. | -25 °C; = Tmin |
| Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, max. | 40 °C; = Tmax |
| Ambient temperature during storage/transportation — min. | -25 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning when condensation present), horizontal at vertical mounting position |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna) |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Operating systems
| proprietary | Yes |
| pre-installed operating system — Windows CE | No |
Configuration
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration software — STEP 7 Basic (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| Configuration software — STEP 7 Professional (TIA Portal) | Yes; via integrated WinCC Basic (TIA Portal) |
| Configuration software — WinCC flexible Compact | No |
| Configuration software — WinCC flexible Standard | No |
| Configuration software — WinCC flexible Advanced | No |
| Configuration software — WinCC Basic (TIA Portal) | Yes |
| Configuration software — WinCC Comfort (TIA Portal) | Yes |
| Configuration software — WinCC Advanced (TIA Portal) | Yes |
| Configuration software — WinCC Professional (TIA Portal) | Yes |
Languages
| Online languages — Number of online/runtime languages | 5 |
| Project languages — Languages per project | 32 |
Functionality under WinCC (TIA Portal)
| Libraries | Yes |
| Applications/options | none |
| Applications/options — Web browser | No |
| Applications/options — SIMATIC WinCC Sm@rtServer | No |
| Task planner — time-controlled | No |
| Task planner — task-controlled | Yes |
| Help system | Yes |
| Help system — Number of characters per info text | 320 |
| Message system — Number of alarm classes | 32 |
| Message system — Bit messages | Yes |
| Message system — Bit messages — Number of bit messages | 200 |
| Message system — Analog messages | Yes |
| Message system — Analog messages — Number of analog messages | 15 |
| Message system — System messages HMI | Yes |
| Message system — System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | No |
| Message system — Number of characters per message | 80 |
| Message system — Number of process values per message | 8 |
| Message system — Message indicator | Yes |
| Message system — Message buffer — Number of entries | 256 |
| Message system — Message buffer — Circulating buffer | Yes |
| Message system — Message buffer — retentive | Yes |
| Message system — Message buffer — maintenance-free | Yes |
| Recipe management — Number of recipes | 5 |
| Recipe management — Data records per recipe | 20 |
| Recipe management — Entries per data record | 20 |
| Recipe management — Size of internal recipe memory | 40 kbyte |
| Recipe management — Recipe memory expandable | No |
| Variables — Number of variables per device | 250 |
| Variables — Number of variables per screen | 30 |
| Variables — Limit values | Yes |
| Variables — Multiplexing | Yes |
| Variables — Structures | No |
| Variables — Arrays | Yes |
| Images — Number of configurable images | 50 |
| Images — Permanent window/default | Yes |
| Images — Global image | Yes |
| Images — Image selection by PLC | Yes |
| Images — Image number in the PLC | Yes |
| Image objects — Number of objects per image | 30 |
| Image objects — Text fields | Yes |
| Image objects — I/O fields | Yes |
| Image objects — Graphic I/O fields (graphics list) | Yes |
| Image objects — Symbolic I/O fields (text list) | Yes |
| Image objects — Date/time fields | Yes |
| Image objects — Switches | Yes |
| Image objects — Buttons | Yes |
| Image objects — Graphic display | Yes |
| Image objects — Icons | Yes |
| Image objects — Geometric objects | Yes |
| Complex image objects — Number of complex objects per screen | 5 |
| Complex image objects — Alarm view | Yes |
| Complex image objects — Trend view | Yes |
| Complex image objects — User view | Yes |
| Complex image objects — Status/control | No |
| Complex image objects — Sm@rtClient view | No |
| Complex image objects — Recipe view | Yes |
| Complex image objects — f(x) trend view | No |
| Complex image objects — System diagnostics view | No |
| Complex image objects — Media Player | No |
| Complex image objects — Bar graphs | Yes |
| Complex image objects — Sliders | No |
| Complex image objects — Pointer instruments | No |
| Complex image objects — Analog/digital clock | No |
| Lists — Number of text lists per project | 150 |
| Lists — Number of entries per text list | 30 |
| Lists — Number of graphics lists per project | 100 |
| Lists — Number of entries per graphics list | 30 |
| Archiving — Number of archives per device | 0 |
| Security — Number of user groups | 50 |
| Security — Number of user rights | 32 |
| Security — Number of users | 50 |
| Security — Password export/import | No |
| Security — SIMATIC Logon | No |
| Character sets — Keyboard fonts — US English | Yes |
| Transfer (upload/download) — MPI/PROFIBUS DP | No |
| Transfer (upload/download) — USB | No |
| Transfer (upload/download) — Ethernet | Yes |
| Transfer (upload/download) — using external storage medium | No |
| Process coupling — S7-1200 | Yes |
| Process coupling — S7-1500 | Yes |
| Process coupling — S7-200 | Yes |
| Process coupling — S7-300/400 | Yes |
| Process coupling — LOGO! | Yes |
| Process coupling — WinAC | Yes |
| Process coupling — SINUMERIK | No |
| Process coupling — SIMOTION | No |
| Process coupling — Allen Bradley (EtherNet/IP) | Yes |
| Process coupling — Allen Bradley (DF1) | No |
| Process coupling — Mitsubishi (MC TCP/IP) | Yes |
| Process coupling — Mitsubishi (FX) | No |
| Process coupling — OMRON (FINS TCP) | No |
| Process coupling — OMRON (Host Link) | No |
| Process coupling — Modicon (Modbus TCP/IP) | Yes |
| Process coupling — Modicon (Modbus RTU) | No |
| Service tools/configuration aids — Backup/Restore manually | Yes |
| Service tools/configuration aids — Backup/Restore automatically | No |
| Service tools/configuration aids — Simulation | Yes |
| Service tools/configuration aids — Device switchover | Yes |
Peripherals/Options
| Printer | No |
| SIMATIC HMI MM memory card: Multi Media Card | No |
| SIMATIC HMI SD memory card: Secure Digital memory card | No |
| USB memory | No |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |
| Enclosure material (front) — Aluminum | No |
| Enclosure material (front) — Stainless steel | No |
Dimensions
| Width of the housing front | 165 mm |
| Height of housing front | 97 mm |
| Mounting cutout, width | 149 mm |
| Mounting cutout, height | 82 mm |
| mounting depth | 30 mm |
Weights
| Weight (without packaging) | 0.25 kg |
| Weight (with packaging) | 0.38 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG1647-0AH11-2AX1: frequently asked questions
When can 6AG1647-0AH11-2AX1 be shipped?
6AG1647-0AH11-2AX1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG1647-0AH11-2AX1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG1647-0AH11-2AX1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1647-0AH11-2AX1, subject to availability and destination.
More Siemens parts
Siemens 6AG1647-0AH11-2AX1Price and lead time confirmed within 1 business day
Request a Quote
