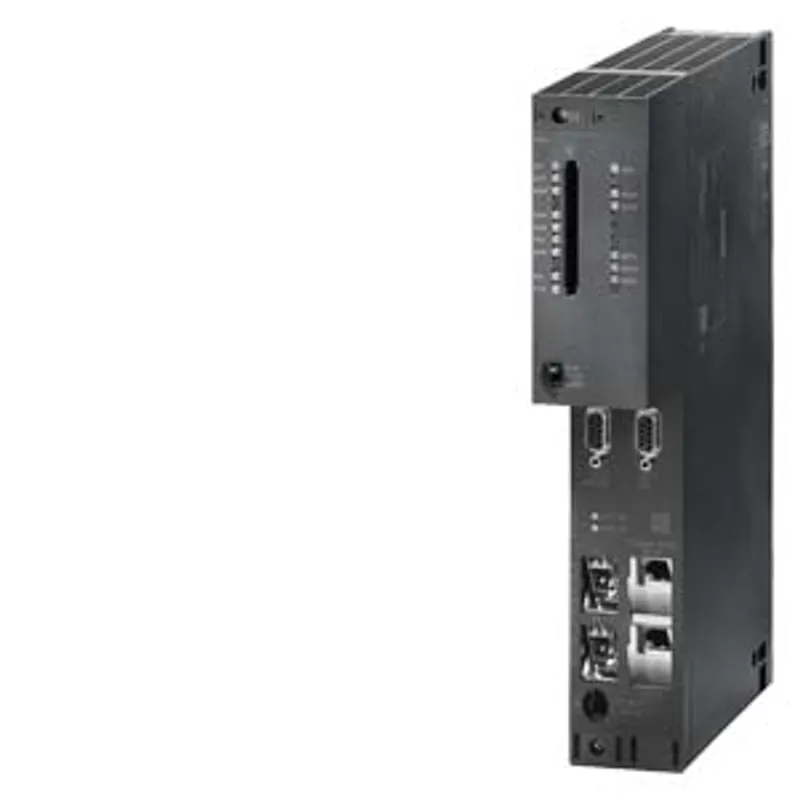

Siemens 6AG1416-5HS06-7AB0
SIPLUS S7-400 CPU 416-5H based on 6ES7416-5HS06-0AB0 with conformal coating, -25…+70 °C
- MPN
- 6AG1416-5HS06-7AB0
- Category
- SIPLUS S7-400 CPU 416H
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1416-5HS06-7AB0?
SIPLUS S7-400 CPU 416-5H based on 6ES7416-5HS06-0AB0 with conformal coating, -25…+70 °C, central processing unit for S7-400H and S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for SYNC modules, 16 MB memory (512 KB data/512 KB program)
Specifications
General information
| Product type designation | CPU 416-5H PN/DP |
| HW functional status | 1 |
| Firmware version | V6.0 |
| based on | 6ES7416-5HS06-0AB0 |
| Product function — Isochronous mode | No |
| Engineering with — Programming package | As of STEP 7 V5.5 SP2 with HF1 |
CiR - Configuration in RUN
| CiR synchronization time, basic load | 100 ms |
| CiR synchronization time, time per I/O byte | 0 µs |
Supply voltage
| Rated value (DC) | Power supply via system power supply |
Input current
| from backplane bus 5 V DC, typ. | 1.6 A |
| from backplane bus 5 V DC, max. | 1.9 A |
| from backplane bus 24 V DC, max. | 150 mA; 150 mA per DP interface |
| from interface 5 V DC, max. | 90 mA; At each DP interface |
Power loss
| Power loss, typ. | 7.5 W |
Storage
| Type of memory | RAM |
| Work memory — Integrated | 16 Mbyte |
| Work memory — integrated (for program) | 6 kbyte |
| Work memory — integrated (for data) | 10 kbyte |
| Work memory — expandable | No |
| Load memory — expandable FEPROM | Yes; with Memory Card (FLASH) |
| Load memory — expandable FEPROM, max. | 64 Mbyte |
| Load memory — integrated RAM, max. | 1 Mbyte |
| Load memory — expandable RAM | Yes |
| Load memory — expandable RAM, max. | 64 Mbyte |
| Backup — present | Yes |
| Backup — with battery | Yes; all data |
| Backup — Without battery | No |
Battery
| Backup battery — Backup current, typ. | 180 µA; Valid up to 40°C |
| Backup battery — Backup current, max. | 1 000 µA |
| Backup battery — Backup time, max. | Dealt with in the module data manual with the secondary conditions and the factors of influence |
| Backup battery — Feeding of external backup voltage to CPU | 5 V DC to 15 V DC |
CPU processing times
| for bit operations, typ. | 12.5 ns |
| for word operations, typ. | 12.5 ns |
| for fixed point arithmetic, typ. | 12.5 ns |
| for floating point arithmetic, typ. | 25 ns |
CPU-blocks
| DB — Number, max. | 16 000; Number range: 1 to 16000 |
| DB — Size, max. | 64 kbyte |
| FB — Number, max. | 8 000; Number range: 0 to 7999 |
| FB — Size, max. | 64 kbyte |
| FC — Number, max. | 8 000; Number range: 0 to 7999 |
| FC — Size, max. | 64 kbyte |
| OB — Number, max. | see instruction list |
| OB — Size, max. | 64 kbyte |
| OB — Number of free cycle OBs | 1; OB 1 |
| OB — Number of time alarm OBs | 8; OB 10-17 |
| OB — Number of delay alarm OBs | 4; OB 20-23 |
| OB — Number of cyclic interrupt OBs | 9; OB 30-38 |
| OB — Number of process alarm OBs | 8; OB 40-47 |
| OB — Number of DPV1 alarm OBs | 3; OB 55-57 |
| OB — Number of startup OBs | 2; OB 100, 102 |
| OB — Number of asynchronous error OBs | 9; OB 80-88 |
| OB — Number of synchronous error OBs | 2; OB 121, 122 |
| Nesting depth — per priority class | 24 |
| Nesting depth — additional within an error OB | 2 |
Counters, timers and their retentivity
| S7 counter — Number | 2 048 |
| S7 counter — Retentivity — can be set | Yes |
| S7 counter — Retentivity — preset | Z 0 to Z 7 |
| S7 counter — Counting range — lower limit | 0 |
| S7 counter — Counting range — upper limit | 999 |
| IEC counter — present | Yes |
| IEC counter — Type | SFB |
| IEC counter — Number | Unlimited (limited only by RAM capacity) |
| S7 timer — Number | 2 048 |
| S7 timer — Retentivity — can be set | Yes |
| S7 timer — Retentivity — preset | No times retentive |
| S7 timer — Time range — lower limit | 10 ms |
| S7 timer — Time range — upper limit | 9 990 s |
| IEC timer — present | Yes |
| IEC timer — Type | SFB |
| IEC timer — Number | Unlimited (limited only by RAM capacity) |
Data areas and their retentivity
| Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) |
| Flag — Size, max. | 16 384 byte |
| Flag — Retentivity available | Yes |
| Flag — Retentivity preset | MB 0 to MB 15 |
| Flag — Number of clock memories | 8; in 1 memory byte |
| Local data — adjustable, max. | 64 kbyte |
| Local data — preset | 32 kbyte |
Address area
| I/O address area — Inputs | 16 kbyte |
| I/O address area — Outputs | 16 kbyte |
| Process image — Inputs, adjustable | 8 kbyte |
| Process image — Outputs, adjustable | 8 kbyte |
| Process image — Inputs, default | 1 024 byte |
| Process image — Outputs, default | 1 024 byte |
| Process image — consistent data, max. | 244 byte |
| Process image — Access to consistent data in process image | Yes |
| Subprocess images — Number of subprocess images, max. | 15 |
| Digital channels — Inputs | 131 072 |
| Digital channels — Inputs — of which central | 131 072 |
| Digital channels — Outputs | 131 072 |
| Digital channels — Outputs — of which central | 131 072 |
| Analog channels — Inputs | 8 192 |
| Analog channels — Inputs — of which central | 8 192 |
| Analog channels — Outputs | 8 192 |
| Analog channels — Outputs — of which central | 8 192 |
Hardware configuration
| Number of expansion units, max. | 21 |
| connectable OPs | 95 |
| Multicomputing | No |
| Interface modules — Number of connectable IMs (total), max. | 6 |
| Interface modules — Number of connectable IM 460s, max. | 6 |
| Interface modules — Number of connectable IM 463s, max. | 4; Single mode only |
| Number of DP masters — Integrated | 2 |
| Number of DP masters — Via CP | 10; CP 443-5 Extended |
| Number of DP masters — Mixed mode IM + CP permitted | No |
| Number of DP masters — via interface module | 0 |
| Number of IO Controllers — Integrated | 1 |
| Number of IO Controllers — Via CP | 0 |
| Number of operable FMs and CPs (recommended) — FM | See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections |
| Number of operable FMs and CPs (recommended) — CP, PtP | See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections |
| Number of operable FMs and CPs (recommended) — PROFIBUS and Ethernet CPs | 14; Of which max. 10 CP as DP master |
| Slots — required slots | 2 |
Time of day
| Clock — Hardware clock (real-time) | Yes |
| Clock — retentive and synchronizable | Yes |
| Clock — Resolution | 1 ms |
| Clock — Deviation per day (buffered), max. | 1.7 s; Power off |
| Clock — Deviation per day (unbuffered), max. | 8.6 s; Power on |
| Operating hours counter — Number | 16 |
| Operating hours counter — Number/Number range | 0 to 15 |
| Operating hours counter — Range of values | SFCs 2, 3 and 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours |
| Operating hours counter — Granularity | 1 h |
| Operating hours counter — retentive | Yes |
| Clock synchronization — supported | Yes |
| Clock synchronization — to MPI, master | Yes |
| Clock synchronization — on MPI, device | Yes |
| Clock synchronization — to DP, master | Yes |
| Clock synchronization — on DP, device | Yes |
| Clock synchronization — in AS, master | Yes |
| Clock synchronization — in AS, device | Yes |
| Clock synchronization — on Ethernet via NTP | Yes; As client |
| Time difference in system when synchronizing via — Ethernet, max. | 10 ms; Via NTP |
| Time difference in system when synchronizing via — MPI, max. | 200 ms |
Interfaces
| Number of RS 485 interfaces | 2 |
| Number of other interfaces | 2; Fiber-optic interface |
| Optical interface | No |
1. Interface
| Interface type | MPI/PROFIBUS DP |
| Isolated | Yes |
| Interface types — RS 485 | Yes |
| Interface types — Output current of the interface, max. | 150 mA |
| Protocols — MPI | Yes |
| Protocols — PROFIBUS DP master | Yes |
| Protocols — PROFIBUS DP device | No |
| MPI — Number of connections | 44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1 |
| MPI — Transmission rate, max. | 12 Mbit/s |
| MPI — Services — PG/OP communication | Yes |
| MPI — Services — Routing | Yes |
| MPI — Services — Global data communication | No |
| MPI — Services — S7 basic communication | No |
| MPI — Services — S7 communication | Yes |
| MPI — Services — S7 communication, as client | Yes |
| MPI — Services — S7 communication, as server | Yes |
| PROFIBUS DP master — Number of connections, max. | 32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1 |
| PROFIBUS DP master — Transmission rate, max. | 12 Mbit/s |
| PROFIBUS DP master — max. number of DP devices | 32 |
| PROFIBUS DP master — Services — PG/OP communication | Yes |
| PROFIBUS DP master — Services — Routing | Yes |
| PROFIBUS DP master — Services — Global data communication | No |
| PROFIBUS DP master — Services — S7 basic communication | No |
| PROFIBUS DP master — Services — S7 communication | Yes |
| PROFIBUS DP master — Services — S7 communication, as client | Yes |
| PROFIBUS DP master — Services — S7 communication, as server | Yes |
| PROFIBUS DP master — Services — Equidistance | No |
| PROFIBUS DP master — Services — Isochronous mode | No |
| PROFIBUS DP master — Services — SYNC/FREEZE | No |
| PROFIBUS DP master — Services — activation/deactivation of DP devices | No |
| PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication) | No |
| PROFIBUS DP master — Services — DPV1 | Yes |
| PROFIBUS DP master — Address area — Inputs, max. | 2 kbyte |
| PROFIBUS DP master — Address area — Outputs, max. | 2 kbyte |
| PROFIBUS DP master — User data per DP device — user data per DP device, max. | 244 byte |
| PROFIBUS DP master — User data per DP device — Inputs, max. | 244 byte |
| PROFIBUS DP master — User data per DP device — Outputs, max. | 244 byte |
| PROFIBUS DP master — User data per DP device — Slots, max. | 244 |
| PROFIBUS DP master — User data per DP device — per slot, max. | 128 byte |
| PROFIBUS DP device — Number of connections | No configuration of CPU as DP slave |
2. Interface
| Interface type | PROFINET |
| Isolated | Yes |
| automatic detection of transmission rate | Yes; Autosensing |
| Autonegotiation | Yes |
| Autocrossing | Yes |
| Change of IP address at runtime, supported | No |
| Interface types — RJ 45 (Ethernet) | Yes |
| Interface types — Number of ports | 2 |
| Interface types — integrated switch | Yes |
| Protocols — PROFINET IO Controller | Yes |
| Protocols — PROFINET IO device | No |
| Protocols — PROFINET CBA | No |
| Protocols — PROFIBUS DP master | No |
| Protocols — PROFIBUS DP device | No |
| Protocols — Open IE communication | Yes |
| Protocols — Web server | No |
| Protocols — Point-to-point connection | No |
| Protocols — Media redundancy | Yes |
| PROFINET IO Controller — Transmission rate, max. | 100 Mbit/s |
| PROFINET IO Controller — Services — PG/OP communication | Yes |
| PROFINET IO Controller — Services — S7 communication | Yes |
| PROFINET IO Controller — Services — Isochronous mode | No |
| PROFINET IO Controller — Services — Shared device | Yes; Single mode only |
| PROFINET IO Controller — Services — Prioritized startup | No |
| PROFINET IO Controller — Services — Number of connectable IO Devices, max. | 256; In redundant mode via both interfaces |
| PROFINET IO Controller — Services — Number of connectable IO Devices for RT, max. | 256 |
| PROFINET IO Controller — Services — of which in line, max. | 256 |
| PROFINET IO Controller — Services — Activation/deactivation of IO Devices | No |
| PROFINET IO Controller — Services — IO Devices changing during operation (partner ports), supported | No |
| PROFINET IO Controller — Services — Device replacement without swap medium | Yes |
| PROFINET IO Controller — Services — Send cycles | 250 µs, 500 µs, 1 ms, 2 ms, 4 ms |
| PROFINET IO Controller — Services — Updating time | 250 µs to 512 ms, minimum value depends on the number of configured user data and the configured single or redundant mode |
| PROFINET IO Controller — Address area — Inputs, max. | 8 kbyte |
| PROFINET IO Controller — Address area — Outputs, max. | 8 kbyte |
| PROFINET IO Controller — Address area — User data consistency, max. | 1 024 byte |
| Open IE communication — Number of connections, max. | 46 |
| Open IE communication — Local port numbers used at the system end | 0, 20, 21, 25, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535 |
| Open IE communication — Keep-alive function, supported | Yes |
3. Interface
| Interface type | PROFIBUS DP |
| Interface types — RS 485 | Yes |
| Interface types — Output current of the interface, max. | 150 mA |
| Protocols — PROFIBUS DP master | Yes |
| Protocols — PROFIBUS DP device | No |
| PROFIBUS DP master — Number of connections, max. | 32 |
| PROFIBUS DP master — Transmission rate, max. | 12 Mbit/s |
| PROFIBUS DP master — max. number of DP devices | 125 |
| PROFIBUS DP master — Services — PG/OP communication | Yes |
| PROFIBUS DP master — Services — Routing | Yes |
| PROFIBUS DP master — Services — Global data communication | No |
| PROFIBUS DP master — Services — S7 basic communication | No |
| PROFIBUS DP master — Services — S7 communication | Yes |
| PROFIBUS DP master — Services — S7 communication, as client | Yes |
| PROFIBUS DP master — Services — S7 communication, as server | Yes |
| PROFIBUS DP master — Services — Equidistance | No |
| PROFIBUS DP master — Services — Isochronous mode | No |
| PROFIBUS DP master — Services — SYNC/FREEZE | No |
| PROFIBUS DP master — Services — activation/deactivation of DP devices | No |
| PROFIBUS DP master — Services — Direct data exchange (slave-to-slave communication) | No |
| PROFIBUS DP master — Services — DPV0 | Yes |
| PROFIBUS DP master — Services — DPV1 | Yes |
| PROFIBUS DP master — Address area — Inputs, max. | 8 kbyte |
| PROFIBUS DP master — Address area — Outputs, max. | 8 kbyte |
| PROFIBUS DP master — User data per DP device — user data per DP device, max. | 244 byte |
| PROFIBUS DP master — User data per DP device — Inputs, max. | 244 byte |
| PROFIBUS DP master — User data per DP device — Outputs, max. | 244 byte |
| PROFIBUS DP master — User data per DP device — Slots, max. | 244 |
| PROFIBUS DP master — User data per DP device — per slot, max. | 128 byte |
4. Interface
| Interface type | Pluggable synchronization submodule (FO) |
| Plug-in interface modules | Synchronization modules 6AG1960-1AA06-7XA0 or 6AG1960-1AB06-7XA0 |
5. Interface
| Interface type | Pluggable synchronization submodule (FO) |
| Plug-in interface modules | Synchronization modules 6AG1960-1AA06-7XA0 or 6AG1960-1AB06-7XA0 |
Protocols
| Redundancy mode — Media redundancy — Switchover time on line break, typ. | 200 ms |
| Redundancy mode — Media redundancy — Number of stations in the ring, max. | 50 |
| SIMATIC communication — S7 routing | Yes |
| Open IE communication — TCP/IP | Yes; via integrated PROFINET interface and loadable FBs |
| Open IE communication — TCP/IP — Number of connections, max. | 94 |
| Open IE communication — TCP/IP — Data length, max. | 32 kbyte |
| Open IE communication — TCP/IP — several passive connections per port, supported | Yes |
| Open IE communication — ISO-on-TCP (RFC1006) | Yes; Via integrated PROFINET interface or CP 443-1 and loadable FBs |
| Open IE communication — ISO-on-TCP (RFC1006) — Number of connections, max. | 94 |
| Open IE communication — ISO-on-TCP (RFC1006) — Data length, max. | 32 kbyte; 1 452 bytes via CP 443-1 Adv. |
| Open IE communication — UDP | Yes; via integrated PROFINET interface and loadable FBs |
| Open IE communication — UDP — Number of connections, max. | 94 |
| Open IE communication — UDP — Data length, max. | 1 472 byte |
| Web server — supported | No |
Isochronous mode
| Equidistance | No |
Communication functions
| PG/OP communication | Yes |
| PG/OP communication — Number of connectable OPs with message processing | 95; When using Alarm_S/SQ and Alarm_D/DQ |
| PG/OP communication — Number of connectable OPs without message processing | 95 |
| Data record routing | Yes |
| Global data communication — supported | No |
| S7 basic communication — supported | No |
| S7 communication — supported | Yes |
| S7 communication — as server | Yes |
| S7 communication — As client | Yes |
| S7 communication — User data per job, max. | 64 kbyte |
| S7 communication — User data per job (of which consistent), max. | 462 byte; 1 variable |
| S5 compatible communication — supported | Yes; (via CP max. 10 and FC AG_SEND and FC AG_RECV) |
| S5 compatible communication — User data per job, max. | 8 kbyte |
| S5 compatible communication — User data per job (of which consistent), max. | 240 byte |
| S5 compatible communication — Number of simultaneous AG-SEND/AG-RECV orders per CPU, max. | 64/64 |
| Standard communication (FMS) — supported | Yes; Via CP and loadable FB |
| Number of connections — overall | 96 |
| Number of connections — usable for PG communication — reserved for PG communication | 1 |
| Number of connections — usable for PG communication — adjustable for PG communication, max. | 0 |
| Number of connections — usable for OP communication — reserved for OP communication | 1 |
| Number of connections — usable for OP communication — adjustable for OP communication, max. | 0 |
| Number of connections — usable for S7 basic communication — reserved for S7 basic communication | 0 |
| Number of connections — usable for S7 basic communication — adjustable for S7 basic communication, max. | 0 |
| Number of connections — usable for S7 communication — reserved for S7 communication | 0 |
| Number of connections — usable for S7 communication — adjustable for S7 communication, max. | 0 |
| Number of connections — usable for routing — reserved for routing | 0 |
| Number of connections — usable for routing — adjustable for routing, max. | 0 |
S7 message functions
| Number of login stations for message functions, max. | 95; Max. 47 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 8 with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC) |
| Symbol-related messages | No |
| SCAN procedure | No |
| Program alarms | Yes |
| Process diagnostic messages | Yes |
| simultaneously active Alarm_S blocks, max. | 1 000; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ blocks |
| Alarm 8-blocks | Yes |
| Alarm 8-blocks — Number of instances for alarm 8 and S7 communication blocks, max. | 10 000 |
| Alarm 8-blocks — preset, max. | 1 200 |
| Process control messages | Yes |
| Number of archives that can log on simultaneously (SFB 37 AR_SEND) | 64 |
Test commissioning functions
| Status block | Yes |
| Single step | Yes |
| Number of breakpoints | 16 |
| Status/control — Status/control variable | Yes; Up to 16 variable tables |
| Status/control — Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Status/control — Number of variables, max. | 70 |
| Forcing — Forcing | Yes |
| Forcing — Forcing, variables | Inputs/outputs, bit memories, distributed I/Os |
| Forcing — Number of variables, max. | 512 |
| Diagnostic buffer — present | Yes |
| Diagnostic buffer — Number of entries, max. | 3 200 |
| Diagnostic buffer — Number of entries, max. — can be set | Yes |
| Diagnostic buffer — Number of entries, max. — preset | 120 |
| Service data — Can be read out | Yes |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas | Yes |
| Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas | No |
Ambient conditions
| Ambient temperature during operation — min. | -25 °C; = Tmin |
| Ambient temperature during operation — max. | 70 °C; = Tmax; @ 60°C for UL/ATEX/FM and safety-related application |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m); with "F-System" applications max. +2 000 m above sea level permissible |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Configuration
| Configuration software — STEP 7 | Yes |
| Programming — Command set | see instruction list |
| Programming — Nesting levels | 7 |
| Programming — Access to consistent data in process image | Yes |
| Programming — System functions (SFC) | see instruction list |
| Programming — System function blocks (SFB) | see instruction list |
| Programming — Programming language — LAD | Yes |
| Programming — Programming language — FBD | Yes |
| Programming — Programming language — STL | Yes |
| Programming — Programming language — SCL | Yes |
| Programming — Programming language — CFC | Yes |
| Programming — Programming language — GRAPH | Yes |
| Programming — Programming language — HiGraph® | Yes |
| Programming — Number of simultaneously active SFCs — RD_REC | 8 |
| Programming — Number of simultaneously active SFCs — WR_REC | 8 |
| Programming — Number of simultaneously active SFCs — WR_PARM | 8 |
| Programming — Number of simultaneously active SFCs — PARM_MOD | 1 |
| Programming — Number of simultaneously active SFCs — WR_DPARM | 2 |
| Programming — Number of simultaneously active SFCs — DPNRM_DG | 8 |
| Programming — Number of simultaneously active SFCs — RDSYSST | 8 |
| Programming — Number of simultaneously active SFCs — DP_TOPOL | 1 |
| Programming — Number of simultaneously active SFBs — RDREC | 8 |
| Programming — Number of simultaneously active SFBs — WRREC | 8 |
| Know-how protection — User program protection/password protection | Yes |
| Know-how protection — Block encryption | Yes; With S7 block Privacy |
Dimensions
| Width | 50 mm |
| Height | 290 mm |
| Depth | 219 mm |
Weights
| Weight, approx. | 995 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG1416-5HS06-7AB0: frequently asked questions
When can 6AG1416-5HS06-7AB0 be shipped?
6AG1416-5HS06-7AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG1416-5HS06-7AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG1416-5HS06-7AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1416-5HS06-7AB0, subject to availability and destination.
More Siemens parts
Siemens 6AG1416-5HS06-7AB0Price and lead time confirmed within 1 business day
Request a Quote
