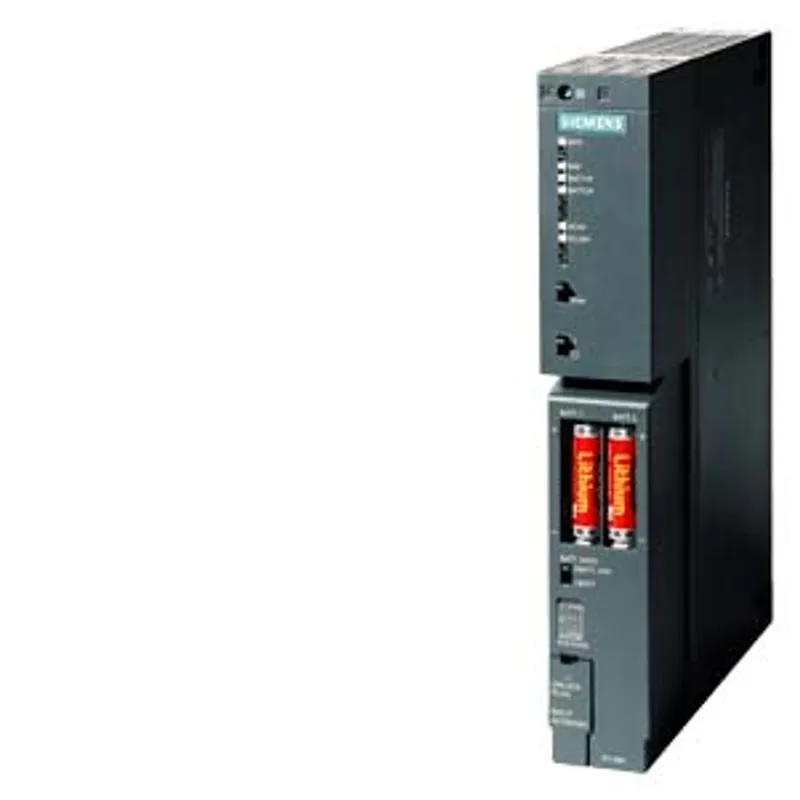

Siemens 6AG1407-0KA02-7AA0
SIPLUS S7-400 PS 407 10 A based on 6ES7407-0KA02-0AA0 with conformal coating, -25…+70 °C, 10 A, wide range
- MPN
- 6AG1407-0KA02-7AA0
- Category
- SIPLUS S7-400 power supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1407-0KA02-7AA0?
SIPLUS S7-400 PS 407 10 A based on 6ES7407-0KA02-0AA0 with conformal coating, -25…+70 °C, 10 A, wide range, 120/230 V UC; 5 V DC/10 A
Specifications
General information
| based on | 6ES7407-0KA02-0AA0 |
Supply voltage
| Rated value (DC) — 120 V DC | Yes |
| Rated value (DC) — 230 V DC | Yes |
| Rated value (AC) — 120 V AC | Yes |
| Rated value (AC) — 230 V AC | Yes |
| Line frequency — Rated value 50 Hz | Yes |
| Line frequency — Rated value 60 Hz | Yes |
| Line frequency — permissible range, lower limit | 47 Hz |
| Line frequency — permissible range, upper limit | 63 Hz |
| Mains buffering — Mains/voltage failure stored energy time | 20 ms |
| Mains buffering — Mains buffering according to NAMUR recommendation | Yes |
Input current
| Rated value at 120 V DC | 1 A |
| Rated value at 230 V DC | 0.5 A |
| Rated value at 120 V AC | 0.9 A |
| Rated value at 230 V AC | 0.5 A |
| Inrush current, max. | 63 A; Full width at half maximum 1 ms |
| Leakage current, max. | 5 mA |
Output voltage
| Type of output voltage | DC |
| Rated value (DC) — 5 V DC | Yes |
| Rated value (DC) — 24 V DC | Yes |
Output current
| for backplane bus (5 V DC), max. | 10 A; no base load required |
| for backplane bus (24 V DC), max. | 1 A; idling-proof |
| Short-circuit protection | Yes |
Power
| Active power input, typ. | 95 W |
Power loss
| Power loss, typ. | 20 W |
Battery
| Backup battery — Backup battery (optional) | Yes; 0 °C to +60 °C: 2x lithium AA; 3.6 V/2.3 Ah // -25 °C to +70 °C and/or 100 % RH: 2x external battery box 6AG1971-0AA00-7AA0 and 2x MONO cell design D |
Hardware configuration
| Slots — required slots | 2 |
Potential separation
| primary/secondary | Yes |
Isolation
| Overvoltage category | II |
EMC
| Compliance with line harmonic distortion limits — Compliance with line harmonic distortion acc. to IEC 61000-3-2, IEC 61000-3-3 | Yes |
Degree and class of protection
| Equipment protection class | I, with protective conductor |
Ambient conditions
| Ambient temperature during operation — min. | -25 °C; using the external battery box SIPLUS 6AG1971-0AA00-7AA0 for buffer mode |
| Ambient temperature during operation — max. | 70 °C; using the external battery box SIPLUS 6AG1971-0AA00-7AA0 for buffer mode |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning if there is condensation). In buffer mode, use battery box SIPLUS 6AG1971-0AA00-7AA0 for high humidity |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Connection method
| Design of electrical connection | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm |
Dimensions
| Width | 50 mm |
| Height | 290 mm |
| Depth | 217 mm |
Weights
| Weight, approx. | 1 200 g |
