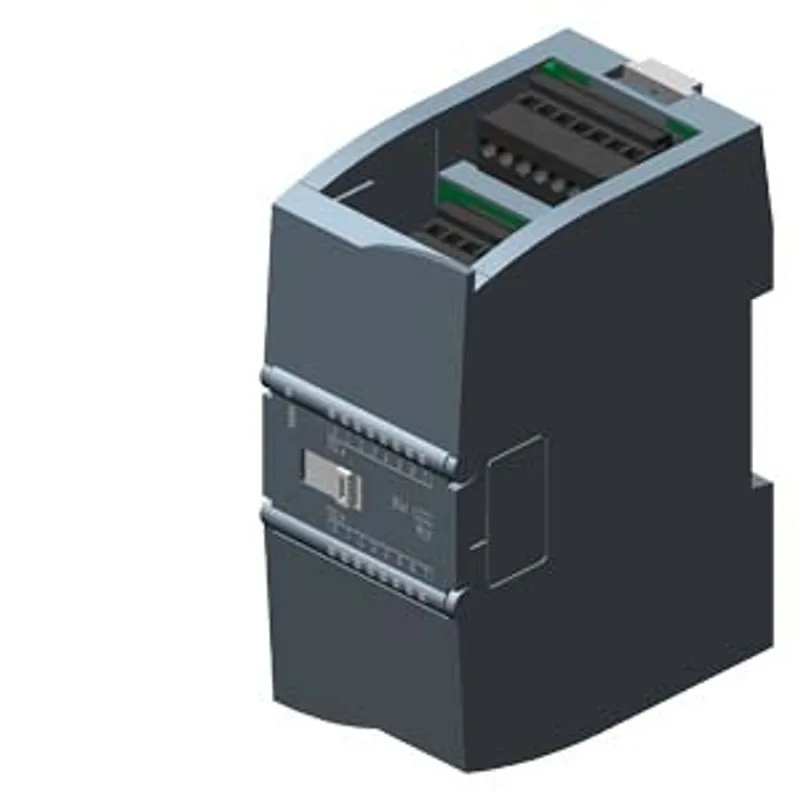

Siemens 6AG1222-1HH32-2XB0
SIPLUS S7-1200 SM 1222 16DQ RLY based on 6ES7222-1HH32-0XB0 with conformal coating, -40…+70 °C
- MPN
- 6AG1222-1HH32-2XB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1222-1HH32-2XB0?
SIPLUS S7-1200 SM 1222 16DQ RLY based on 6ES7222-1HH32-0XB0 with conformal coating, -40…+70 °C, start up -25 °C, digital output 16 DQ, relay 2 A
Specifications
General information
| Product type designation | SM 1222, DQ 16x relay/2 A |
| based on | 6ES7222-1HH32-0XB0 |
Supply voltage
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| from backplane bus 5 V DC, max. | 135 mA |
| Digital outputs — from load voltage L+, max. | 11 mA/relay coil |
Power loss
| Power loss, typ. | 8.5 W |
Digital outputs
| Number of digital outputs | 16 |
| Number of digital outputs — in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| Switching capacity of the outputs — with resistive load, max. | 2 A |
| Switching capacity of the outputs — on lamp load, max. | 30 W with DC, 200 W with AC |
| Output voltage — Rated value (DC) | 5 V DC to 30 V DC |
| Output voltage — Rated value (AC) | 5 V AC to 250 V AC |
| Output current — for signal "1" rated value | 2 A |
| Output delay with resistive load — "0" to "1", max. | 10 ms |
| Output delay with resistive load — "1" to "0", max. | 10 ms |
| Total current of the outputs (per group) — horizontal installation — up to 50 °C, max. | 10 A; Current per mass |
| Relay outputs — Number of relay outputs | 16 |
| Relay outputs — Rated supply voltage of relay coil L+ (DC) | 24 V |
| Relay outputs — Number of operating cycles, max. | mechanically 10 million, at rated load voltage 100 000 |
| Relay outputs — Switching capacity of contacts — with inductive load, max. | 2 A |
| Relay outputs — Switching capacity of contacts — on lamp load, max. | 30 W with DC, 200 W with AC |
| Relay outputs — Switching capacity of contacts — with resistive load, max. | 2 A |
| Cable length — shielded, max. | 500 m |
| Cable length — unshielded, max. | 150 m |
Interrupts/diagnostics/status information
| Alarms — Diagnostic alarm | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Potential separation
| Potential separation digital outputs — between the channels | Relays |
| Potential separation digital outputs — between the channels, in groups of | 4 |
| Potential separation digital outputs — between the channels and backplane bus | 1 500 V AC for 1 minute |
Permissible potential difference
| between different circuits | 750 V AC for 1 minute |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 68.6 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 8.16 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 60.7 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.334 kg |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C |
| Ambient temperature during operation — max. | 70 °C; = Tmax; Tmax > +60 °C number of simultaneously activated outputs 8 (no adjacent points) for horizontal mounting position |
| Ambient temperature during operation — At cold restart, min. | -25 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 2 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m); above 2 000 m max. 132 V AC |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Connection method
| required front connector | Yes |
Mechanics/material
| Enclosure material (front) — plastic | Yes |
Dimensions
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 260 g |
