SIPLUS SM 1222 digital output modules Parts
Compare SIPLUS SM 1222 digital output modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | from backplane bus 5 V DC, max. | Power loss, typ. | Number of digital outputs |
|---|---|---|---|---|---|

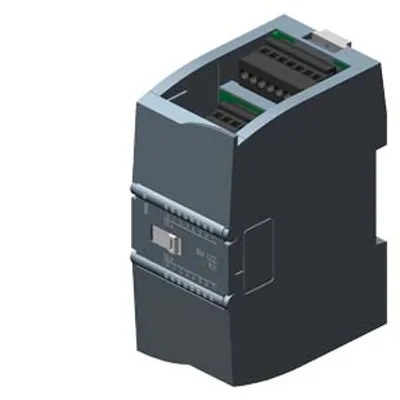

| 6AG1222-1HH32-4XB0 | SM 1222, DQ 16x relay/2 A | 6ES7222-1HH32-0XB0 | 135 mA | 8.5 W | 16 |
| 6AG1222-1HH32-2XB0 | SM 1222, DQ 16x relay/2 A | 6ES7222-1HH32-0XB0 | 135 mA | 8.5 W | 16 |

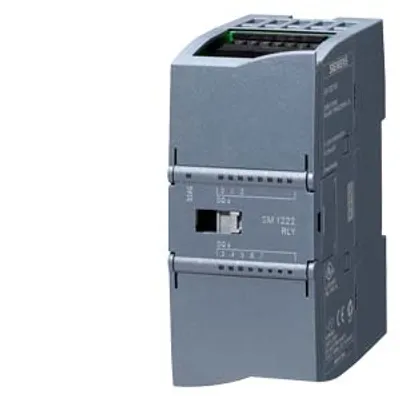

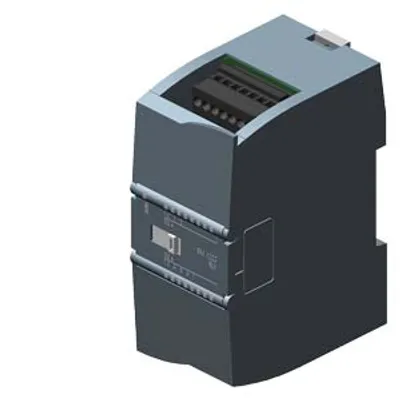

| 6AG1222-1HF32-4XB0 | SM 1222, DQ 8x relay/2 A | 6ES7222-1HF32-0XB0 | 120 mA | 4.5 W | 8 |
| 6AG1222-1HF32-2XB0 | SM 1222, DQ 8x relay/2 A | 6ES7222-1HF32-0XB0 | 120 mA | 4.5 W | 8 |
Common to all listed parts
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| Digital outputs — from load voltage L+, max. | 11 mA/relay coil |
| Short-circuit protection | No; to be provided externally |
| Switching capacity of the outputs — with resistive load, max. | 2 A |
| Switching capacity of the outputs — on lamp load, max. | 30 W with DC, 200 W with AC |
| Output voltage — Rated value (DC) | 5 V DC to 30 V DC |
| Output voltage — Rated value (AC) | 5 V AC to 250 V AC |
