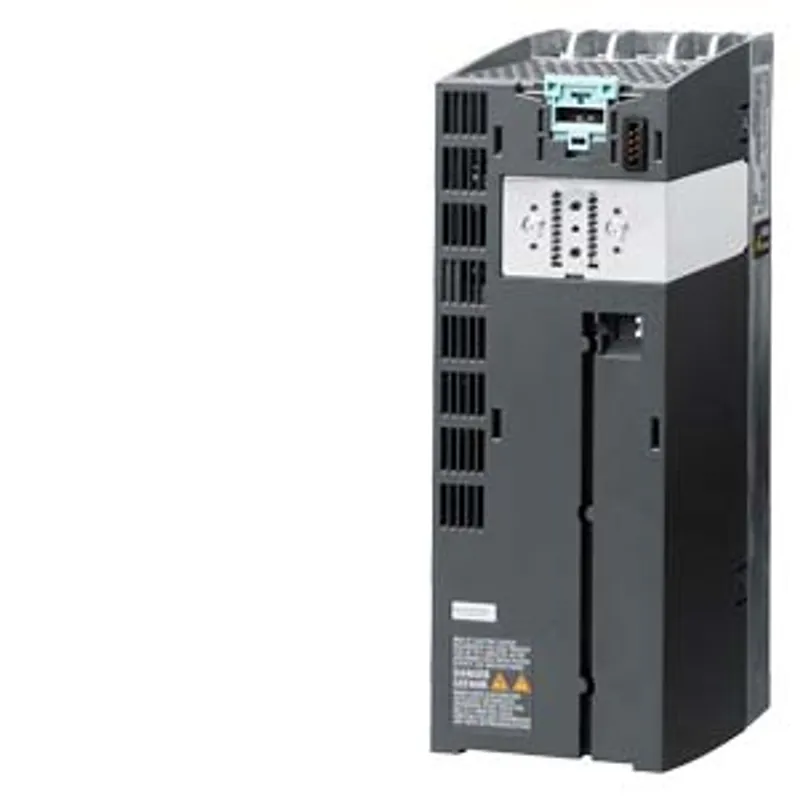

Siemens 6AG1210-1PE21-2UL0
SIPLUS G120 PM240-2 IP20-FSA-U-400V 7.5 kW based on 6SL3210-1PE21-8UL0 with conformal coating, -20…+50 °C
- MPN
- 6AG1210-1PE21-2UL0
- Category
- SIPLUS Power Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1210-1PE21-2UL0?
SIPLUS G120 PM240-2 IP20-FSA-U-400V 7.5 kW based on 6SL3210-1PE21-8UL0 with conformal coating, -20…+50 °C, unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 5.5 kW at 200% 3 s,150% 57 s,100% 240 s power rating low overload: 7.5 kW at 150% 3 s,110% 57 s,100% 240 s 291x 100x 165 (HxWxD), design FSB, degree of protection IP20 without CU and operating unit released as of CU FW version V4.7 HF8
Specifications
General information
| Product type designation | PM240-2 |
| Product version | FSB 7.5 kW |
| Design of the converter | FSB |
| based on | 6SL3210-1PE21-8UL0 |
| Protection function — Undervoltage protection | Yes |
| Protection function — Overvoltage protection | Yes |
| Protection function — Overload protection | Yes |
| Protection function — Ground-fault protection | Yes |
| Protection function — short-circuit protection | Yes |
| Protection function — Stall protection | Yes |
| Protection function — With blocked rotor | Yes |
| Protection function — Temperature monitor for motor | Yes |
| Protection function — Temperature monitor for converter | Yes |
| Protection function — Parameter locking | Yes |
Input voltage
| Type of input voltage | AC |
| Mains filter — present | No |
Input current
| Input current with low overload | 22.2 A |
| Input current with high overload | 19.8 A |
Output voltage
| Output voltage in relation to input voltage, min. | 0 % |
| Output voltage in relation to input voltage, max. | 95 % |
| Pulse frequency | 4 kHz |
Output current
| Output current, max. | 27 A |
| Output current without overload | 18 A |
| Output current with low overload | 18 A |
| Output current with high overload | 13.2 A |
Power loss
| Power loss, max. | 0.2 kW |
Power electronics
| emitted active power with low overload | 7.5 kW |
| emitted active power with high overload | 5.5 kW |
| Efficiency | 0.97 |
| Type of duty cycle duration with low overload | 1.1x rated output current (i.e. 110 % overload) for 57 s with a cycle time of 300 s; 1.5x rated output current (i.e. 150 % overload) for 3 s with a cycle time of 300 s |
| Type of duty cycle duration with high overload | 1.5x output current rating (i.e. 150 % overload) for 57 s with a cycle time of 300 s; 2x output current rating (i.e. 200 % overload) for 3 s with a cycle time of 300 s |
| Cooling method | Internal air cooling |
| Cooling air flow | 0.0092 m³/s |
| Short-time withstand current (SCCR) of the entire control cabinet in accordance with UL 508A | 65 kA |
Isolation
| Degree of pollution | 2 according to EN 61800-5-1 |
Degree and class of protection
| IP degree of protection | IP20 |
| Equipment protection class according to EN 61800-5-1 | Class I (with protective bonding circuit) and Class III (PELV) |
| Touch protection according to EN 61800-5-1 | Assuming use as prescribed |
Standards, approvals, certificates
| Certificate of suitability | CE / TÜV |
| Standard for EMC according to EN 61800-3 | the EMC product standard EN 61800-3 does not apply directly to a frequency inverter but to a PDS (Power Drive System), which comprises the complete circuitry, motor and cables in addition to the inverter |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; = Tmin |
| Ambient temperature during operation — max. | 55 °C; = Tmax |
| Ambient temperature during storage/transportation — Storage, min. | -25 °C |
| Ambient temperature during storage/transportation — Storage, max. | 55 °C |
| Ambient temperature during storage/transportation — Storage, min. [°F] | -13 °F |
| Ambient temperature during storage/transportation — Storage, max. [°F] | 131 °F; Class 1K3 acc. to EN 60721-3-1 |
| Ambient temperature during storage/transportation — Transportation, min. | -40 °C |
| Ambient temperature during storage/transportation — Transportation, max. | 70 °C |
| Ambient temperature during storage/transportation — Transport, min. [°F] | -40 °F |
| Ambient temperature during storage/transportation — Transport, max. [°F] | 158 °F; Class 2K3 according to EN 60721-3-2 |
| Altitude during operation relating to sea level — Installation altitude above sea level without derating, max. | 1 000 m |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Vibrations — Vibration frequency with constant acceleration during operation according to EN 60068-2-6, min. | 58 Hz |
| Vibrations — Vibration frequency with constant acceleration during operation according to EN 60068-2-6, max. | 200 Hz; Constant acceleration = 9.81 m/s² (1 g) |
| Vibrations — Vibration frequency with constant deflection during operation according to EN 60068-2-6, min. | 10 Hz |
| Vibrations — Vibration frequency with constant deflection during operation according to EN 60068-2-6, max. | 58 Hz; Constant deflection 0.075 mm |
| Vibrations — Oscillation frequency during transport in accordance with EN 60721-3-2 | Class 2M3 |
| Shock testing — Shock load during operation | (15x g)/11 ms |
| Shock testing — Shock acceleration during operation according to EN 60068-2-27 | 147 m/s² |
| Shock testing — Shock acceleration during transport according to EN 60721-3-2 | Class 2M3 |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | No |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Cables
| Cable length for motor, shielded, max. | 50 m |
Connection method
| Design of electrical connection of motor | Plug-in screw terminals |
| Design of electrical connection of motor — connectable cable cross-section for motor supply line, min. | 1.5 mm² |
| Design of electrical connection of motor — connectable cable cross-section for motor supply line, max. | 6 mm² |
| Type of electrical connection for mains supply line | Plug-in screw terminals |
| Type of electrical connection for mains supply line — connectable cable cross-section for mains supply line, min. | 1.5 mm² |
| Type of electrical connection for mains supply line — connectable cable cross-section for mains supply line, max. | 6 mm² |
| Design of electrical connection for the PE conductor | Plug-in screw terminals |
Dimensions
| Width | 100 mm |
| Height | 292 mm |
| Depth | 165 mm |
Weights
| Weight (without packaging) | 3 kg |
Other
| Sound pressure level (1 m), max. | 62 dB |
| Brake design | DC braking, compound braking, resistance braking with integrated brake chopper (for size FSGX optional) |
