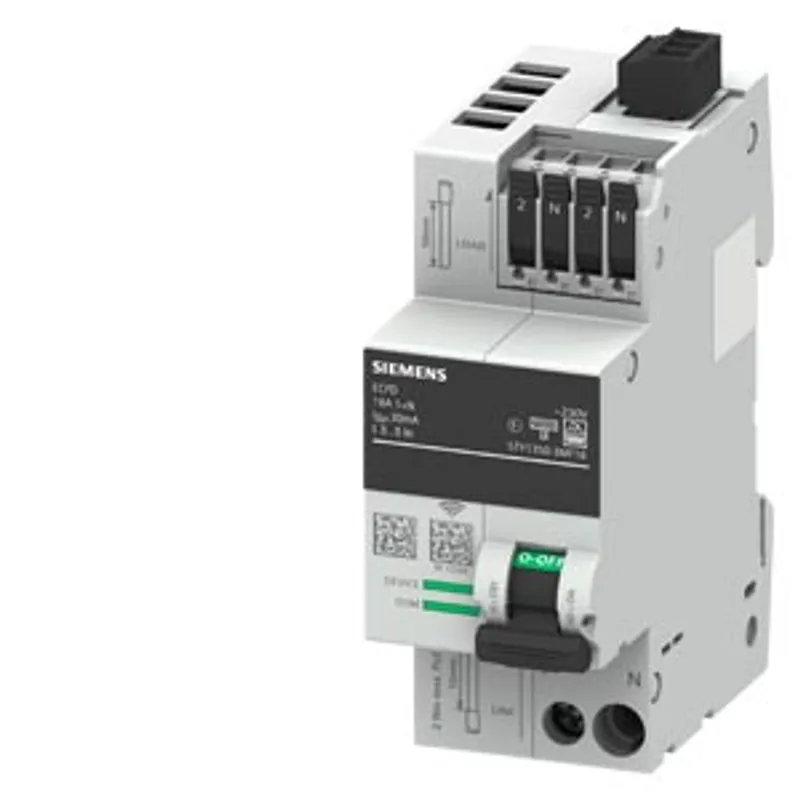

Siemens 5TY1350-3MF16

ECPD with measurement and communication function RCD type F 30 mA In: 16 A, Un: 230 V AC

MPN
5TY1350-3MF16
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TY1350-3MF16?

ECPD with measurement and communication function RCD type F 30 mA In: 16 A, Un: 230 V AC, 75 kA 1+N in 2 MW Please consider wireless approval! list of countries: see certificates

Specifications

Model

product brand nameSENTRON
product designationElectronic Circuit Protection Device
design of the base unitECPD 1+N
type of voltage supplyAC
standardRCBO function conforming to IEC/EN 61009-1 (IEC/EN 62423)

General technical data

number of poles2
design of pole1+N
type of network configurationTN, TT
touch protection against electrical shock according to EN 50274yes
mechanical service life (operating cycles) of the main contacts typical10 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageAC
surge voltage resistance rated value4 000 V
supply voltage between the line conductors at AC maximum permissible325 V

Current

tripping fault current rated value30 mA
operational current — at 30 °C rated value16 A
operational current — at 40 °C rated value16 A
operational current — at 45 °C rated value16 A
operational current — at 50 °C rated value15.2 A
operational current — at 55 °C rated value14.4 A
operational current — at 60 °C rated value13.6 A
operational current — at 65 °C rated value12.8 A
operational current — at 70 °C rated value12 A
operational current — at AC rated value16 A
operational current — at AC-51 rated value12 A
residual current typeF

Protection class

protection class IPIP20

Breaking Capacity

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value75 kA
break time maximum0.5 ms
break time typical0.1 ms
grid spacing1 mm
energy limitation class3
power loss [W] maximum7 W
power loss [V∙A] during standby0.7 W

Main circuit

operating frequency rated value50 Hz
inductivity in the entire shunt circuit maximum500 µH

Control current

type of voltage of control voltageDC

Product details

product descriptionECPD
product feature can be locked into OFF positionYes
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product feature tool-free clamp load sideYes
number of digital inputs1
number of digital outputs1

Connections

stripped length of the cable for auxiliary and control contacts7 mm
stripped length infeed side12 mm
tightening torque with screw-type terminals — minimum infeed side1.2 N·m
tightening torque with screw-type terminals — maximum infeed side2 N·m
stripped length load side10 mm
connectable conductor cross-section stranded — minimum load side0.2 mm²
connectable conductor cross-section stranded — maximum load side4 mm²
connectable conductor cross-section for auxiliary and control contacts — solid minimum0.14 mm²
connectable conductor cross-section for auxiliary and control contacts — solid maximum1.5 mm²
connectable conductor cross-section for auxiliary and control contacts — finely stranded without core end processing minimum0.14 mm²
connectable conductor cross-section for auxiliary and control contacts — finely stranded without core end processing maximum1.5 mm²
connectable conductor cross-section for auxiliary and control contacts — finely stranded with core end processing minimum0.25 mm²
connectable conductor cross-section for auxiliary and control contacts — finely stranded with core end processing maximum0.75 mm²
position of power supply cordbottom

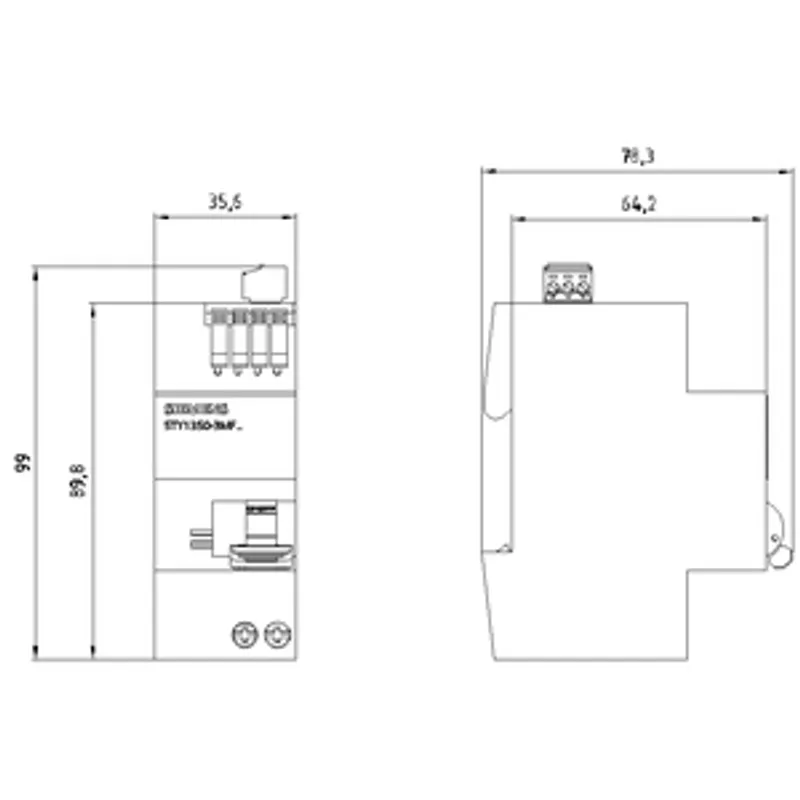

Mechanical Design

height90 mm
width36 mm
depth70 mm
number of modular width units2
fastening methodDIN rail
fastening method rail mountingYes
mounting positionany
Net Weight180 g

Environmental conditions

ambient temperature during operation — minimum-40 °C
ambient temperature during operation — maximum70 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TY1350-3MF16: frequently asked questions

When can 5TY1350-3MF16 be shipped?

5TY1350-3MF16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TY1350-3MF16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TY1350-3MF16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TY1350-3MF16, subject to availability and destination.
