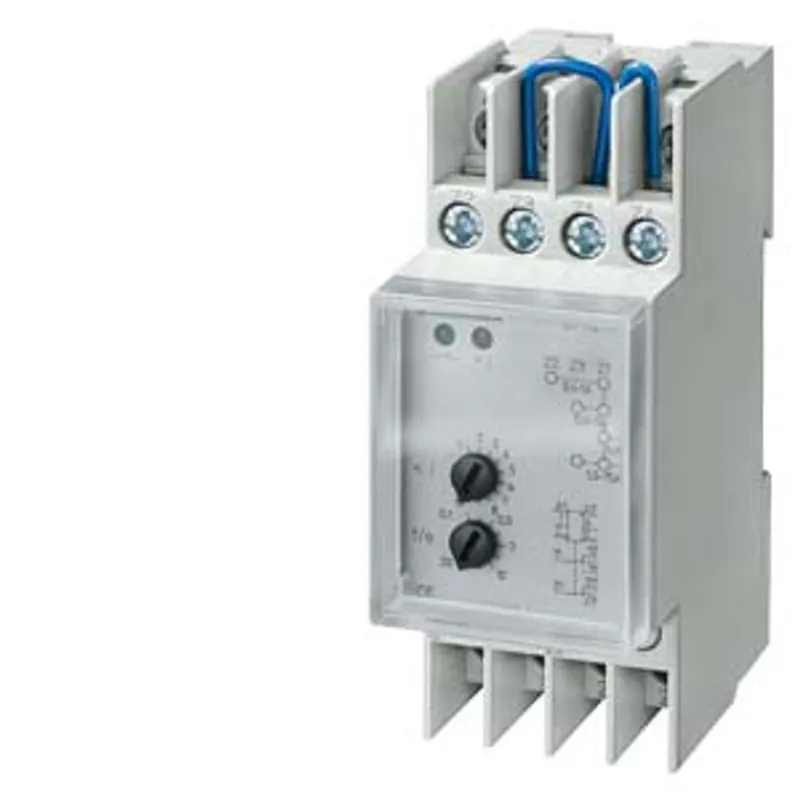

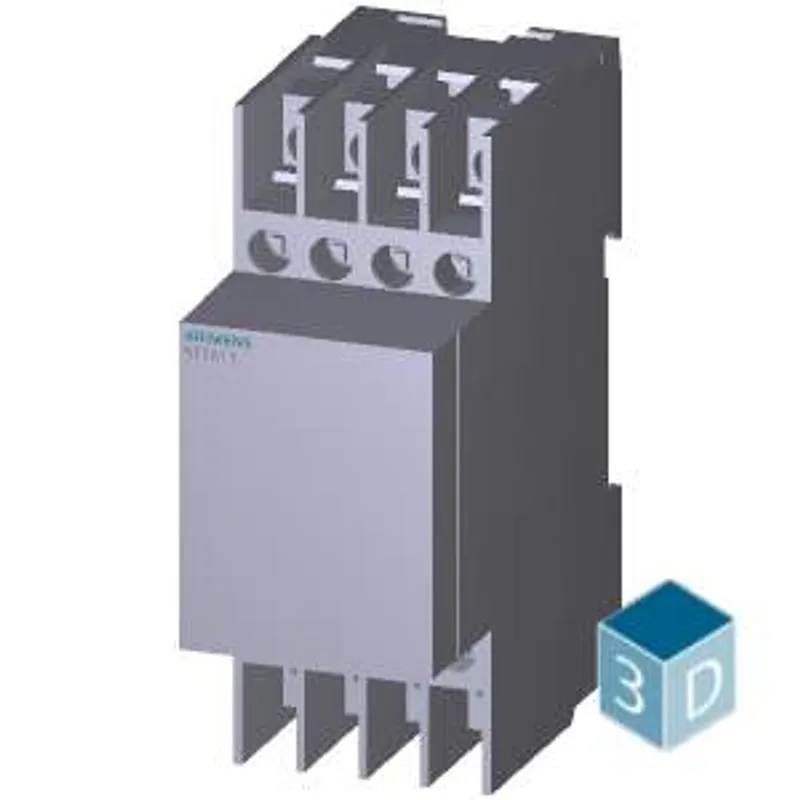

Siemens 5TT6113
Undercurrent relay T5570 230V AC 1/5/10/15A 1-phase with transparent cap
- MPN
- 5TT6113
- Category
- SENTRON 5TT6 Current Relays
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5TT6113?
undercurrent relay T5570 230V AC 1/5/10/15A 1-phase with transparent cap
Specifications
Model
| product brand name | SENTRON |
| product designation | Undercurrent relay |
| design of the product | Undercurrent relay |
General technical data
| adjustable pickup delay time initial value | 0.1 s |
| type of voltage of the operating voltage for actuation | AC |
Control current
| control supply voltage at AC — at 50 Hz rated value minimum | 230 V |
| control supply voltage at AC — at 50 Hz rated value maximum | 230 V |
| control supply voltage at AC — at 60 Hz rated value minimum | 230 V |
| control supply voltage at AC — at 60 Hz rated value maximum | 230 V |
Auxiliary circuit
| number of CO contacts for auxiliary contacts | 2 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
Adjustable parameters
| adjustable pickup delay time full-scale value | 20 s |
| adjustable OFF-delay time — initial value | 0.1 s |
| adjustable OFF-delay time — full-scale value | 20 s |
Product function
| product function — voltage window recognition 1 phase | No |
| product function — voltage window recognition 3 phase | No |
| product function — current window recognition DC | No |
| product function — overcurrent detection 1 phase | No |
| product function — overcurrent detection 3 phase | No |
| product function — overcurrent detection DC | No |
| product function — undercurrent detection 1 phase | Yes |
| product function — undercurrent detection 3 phases | No |
| product function — undercurrent detection DC | No |
Connections
| product component removable terminal for main circuit | No |
| product component removable terminal for auxiliary and control circuit | No |
| type of electrical connection | screw terminal |
| type of electrical connection — plug-in socket | No |

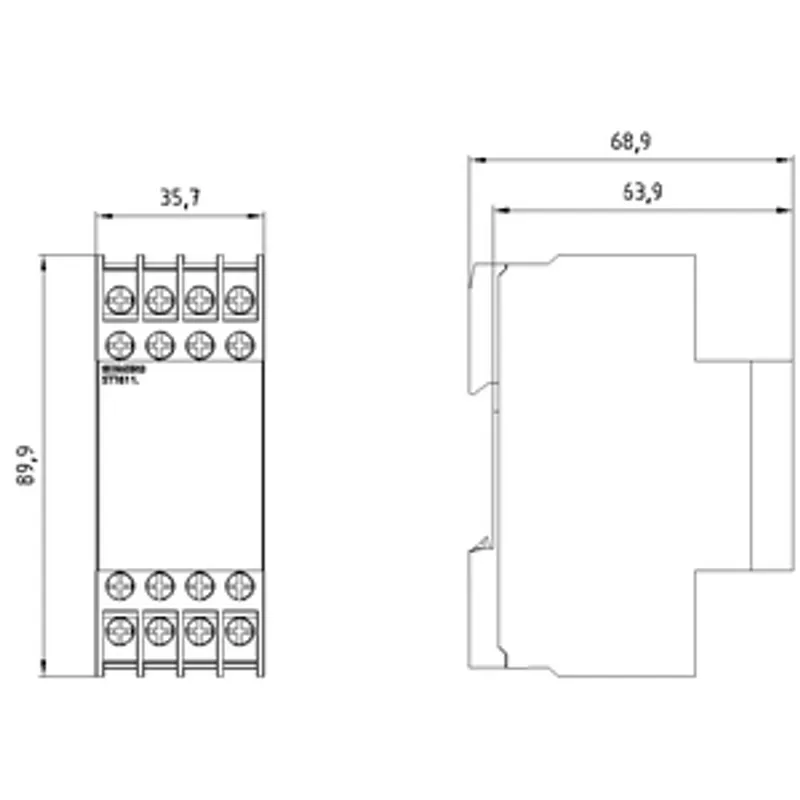

Mechanical Design
| height | 90 mm |
| width | 36 mm |
| depth | 64 mm |
| Net Weight | 144 g |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TT6113: frequently asked questions
When can 5TT6113 be shipped?
5TT6113 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TT6113 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TT6113 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT6113, subject to availability and destination.
