Siemens 5TT5850-6
Insta contactor 0/1-automatic with 4 NO contact for 230 V AC, 400 V 63 A control 230 V AC
- MPN
- 5TT5850-6
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5TT5850-6?
insta contactor 0/1-automatic with 4 NO contact for 230 V AC, 400 V 63 A control 230 V AC
Specifications
Model
| product brand name | SENTRON |
| product designation | Installation contactor |
| design of the product | 4 NO contacts |
General technical data
| relative ON period of magnet coil | 100 % |
| type of voltage of the operating voltage | AC |
| type of voltage of the operating voltage for actuation | AC |
Supply voltage
| operating voltage rated value — minimum | 440 V |
| operating voltage rated value — maximum | 440 V |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity active power with incandescent lamp load | 5 000 W |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 8 W |
Control current
| control supply voltage — rated value | 230 V |
| control supply voltage — rated value maximum | 230 V |
Product details
| product component slide for manual operation | Yes |
| number of NC contacts | 0 |
| number of NO contacts | 4 |
| product extension installable supplementary devices | Yes |
Connections
| installation or assembly note | provision must be made for spacers to ensure heat dissipation |

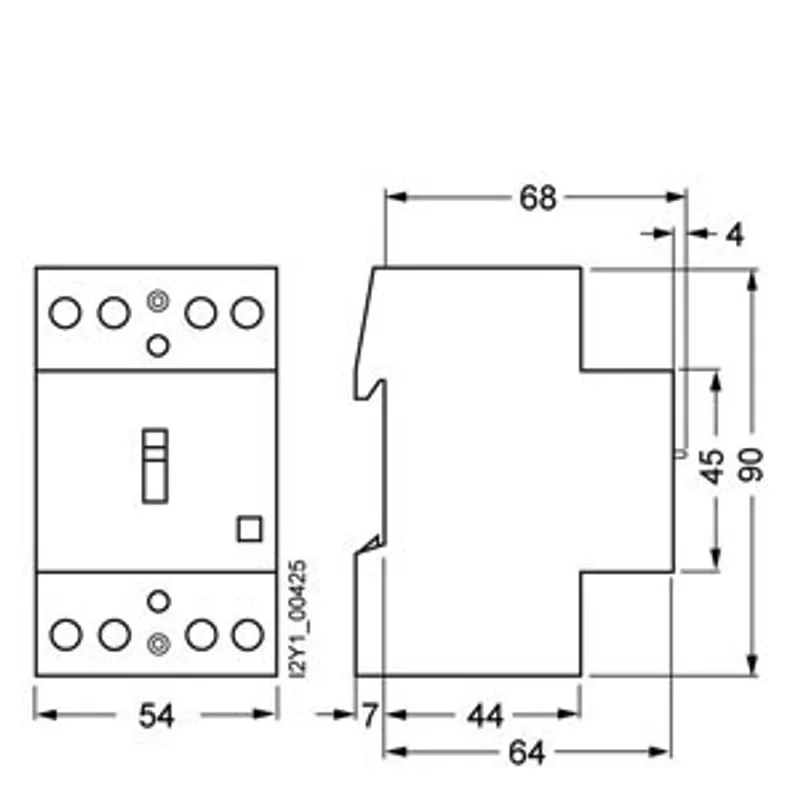

Mechanical Design
| height | 90 mm |
| width | 54 mm |
| depth | 71 mm |
| installation depth | 70 mm |
| number of modular width units | 3 |
| Net Weight | 373 g |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TT5850-6: frequently asked questions
When can 5TT5850-6 be shipped?
5TT5850-6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TT5850-6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TT5850-6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT5850-6, subject to availability and destination.
