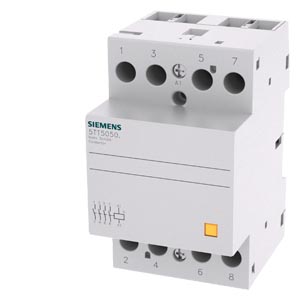

Siemens 5TT5850-2

Insta contactor with 4 NO contact for 230 V AC, 400 V 63 A control 24 V AC

MPN
5TT5850-2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT5850-2?

insta contactor with 4 NO contact for 230 V AC, 400 V 63 A control 24 V AC

Specifications

Model

product brand nameSENTRON
product designationInstallation contactor
design of the product4 NO contacts

General technical data

relative ON period of magnet coil100 %
type of voltage of the operating voltageAC
type of voltage of the operating voltage for actuationAC

Supply voltage

operating voltage rated value — minimum440 V
operating voltage rated value — maximum440 V

Protection class

protection class IPIP20

Breaking Capacity

switching capacity active power with incandescent lamp load5 000 W

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole8 W

Control current

control supply voltage — rated value24 V
control supply voltage — rated value maximum24 V

Product details

product component slide for manual operationNo
number of NC contacts0
number of NO contacts4
product extension installable supplementary devicesYes

Connections

installation or assembly noteprovision must be made for spacers to ensure heat dissipation

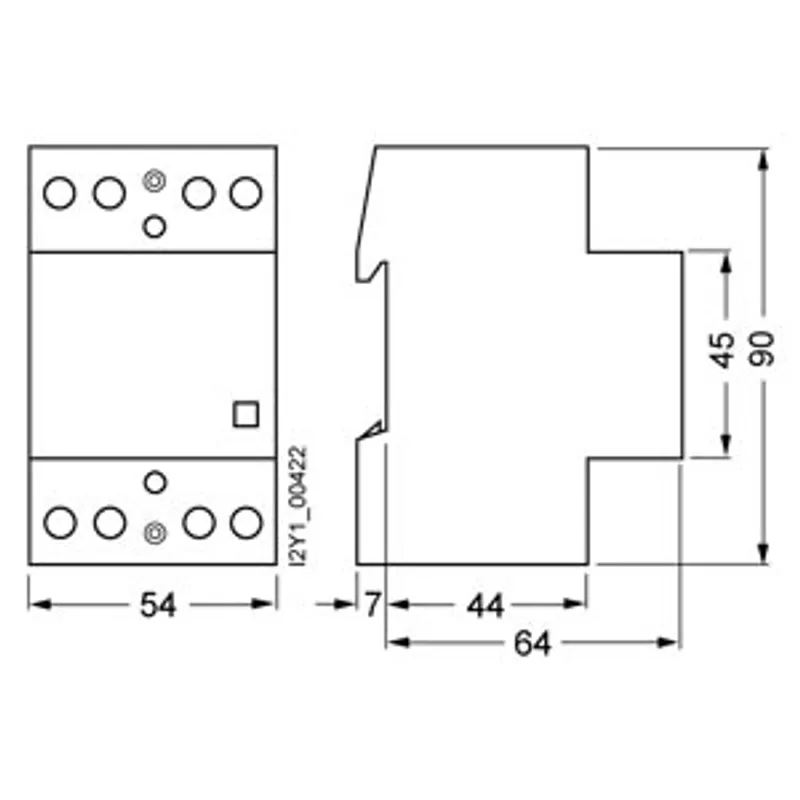

Mechanical Design

height90 mm
width54 mm
depth71 mm
installation depth70 mm
number of modular width units3
Net Weight389 g
