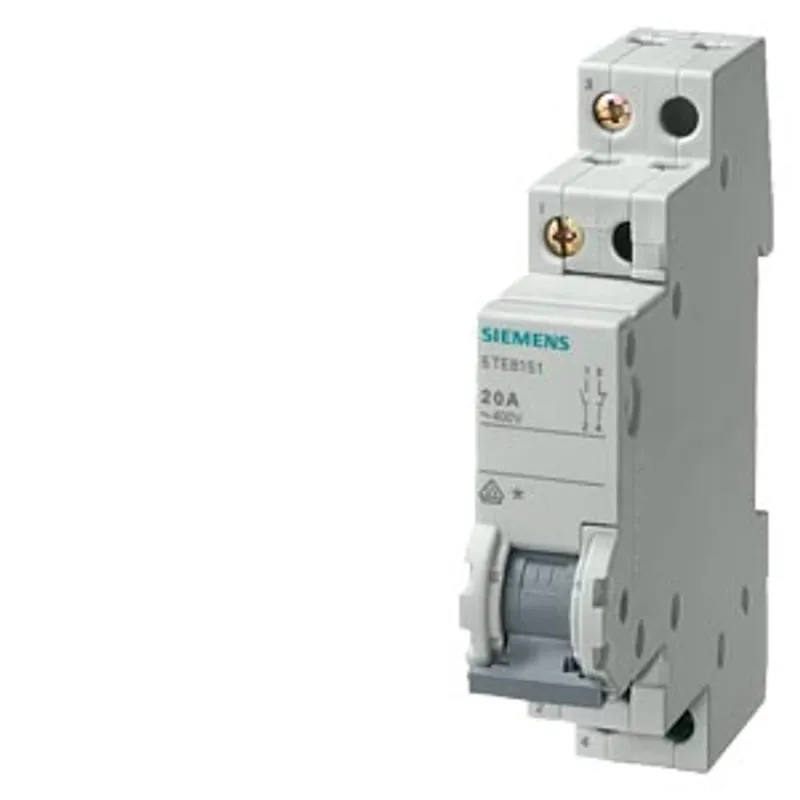

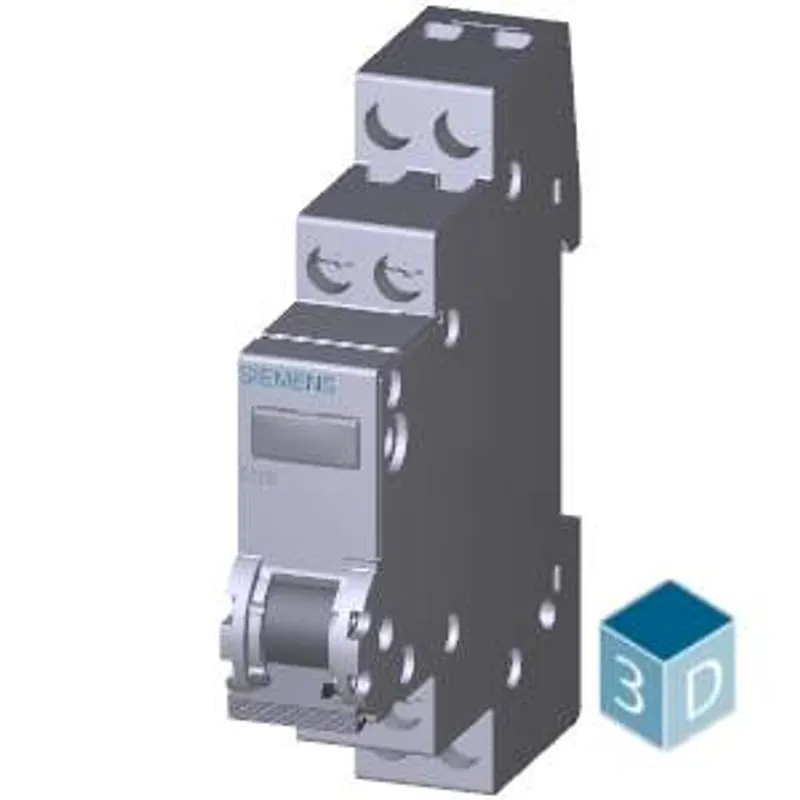

Siemens 5TE8153
Two-way switch 20 A 3 NO 1 NC
- MPN
- 5TE8153
- Category
- SENTRON 5TE8 Control Switches
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5TE8153?
Two-way switch 20 A 3 NO 1 NC
Specifications
Model
| product brand name | SENTRON |
| product designation | Two-way switch |
| design of the product | 3 NO 1NC |
| design of the switching function | two-way switch |
General technical data
| number of poles | 1 |
| short-circuit current rating | 10 kA |
| type of voltage of the operating voltage | AC |
Supply voltage
| operating voltage rated value | 400 V |
| value range of the operating frequency | 50/60 Hz |
Protection class
| protection class IP | other |
Breaking Capacity
| switching capacity current rated value | 0.06 kA |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.7 W |
Main circuit
| operational current rated value | 20 A |
Product details
| product component signal lamp | No |
| number of NC contacts | 1 |
| number of NO contacts | 3 |
Product function
| product function positive opening (acc. to DIN VDE 0113) | No |
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 6 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 6 mm² |
| tightening torque with screw-type terminals — minimum | 0.8 N·m |
| tightening torque with screw-type terminals — maximum | 1 N·m |

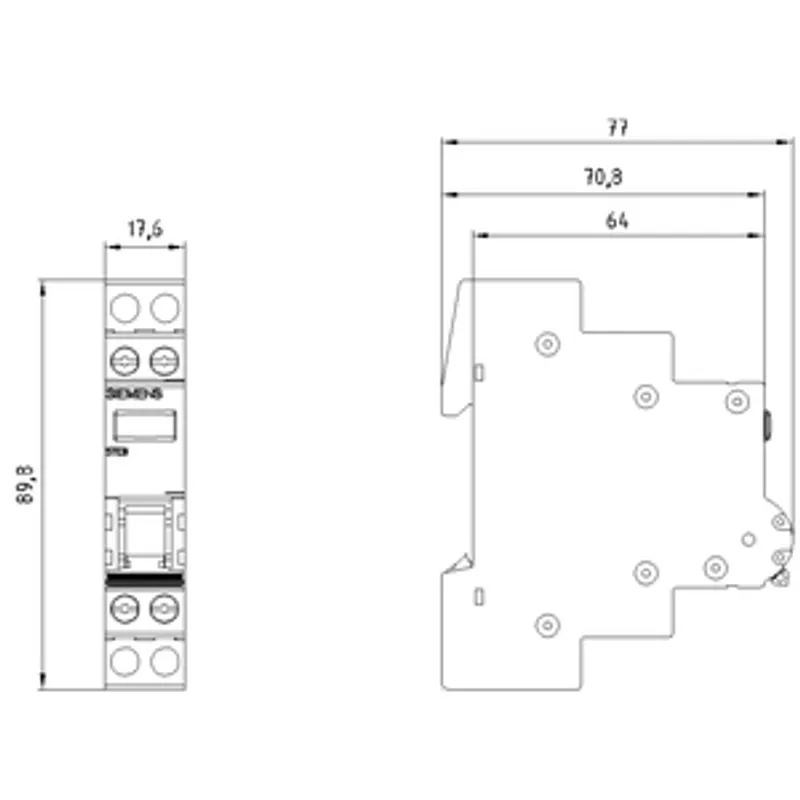

Mechanical Design
| height | 90 mm |
| depth | 64 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| Net Weight | 94 g |
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
| ambient temperature during storage minimum | -25 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TE8153: frequently asked questions
When can 5TE8153 be shipped?
5TE8153 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TE8153 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TE8153 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TE8153, subject to availability and destination.
