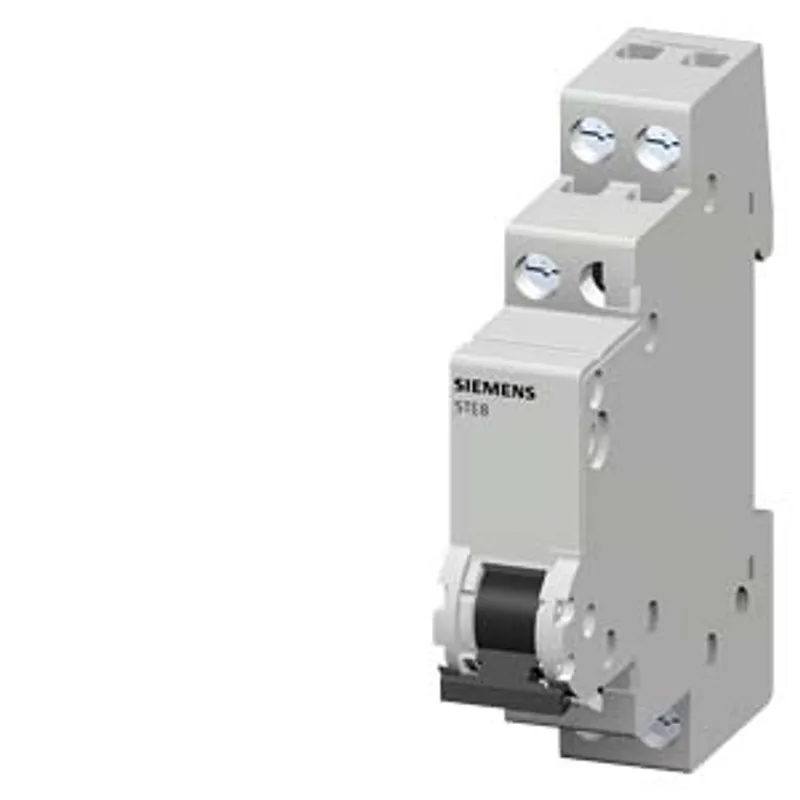

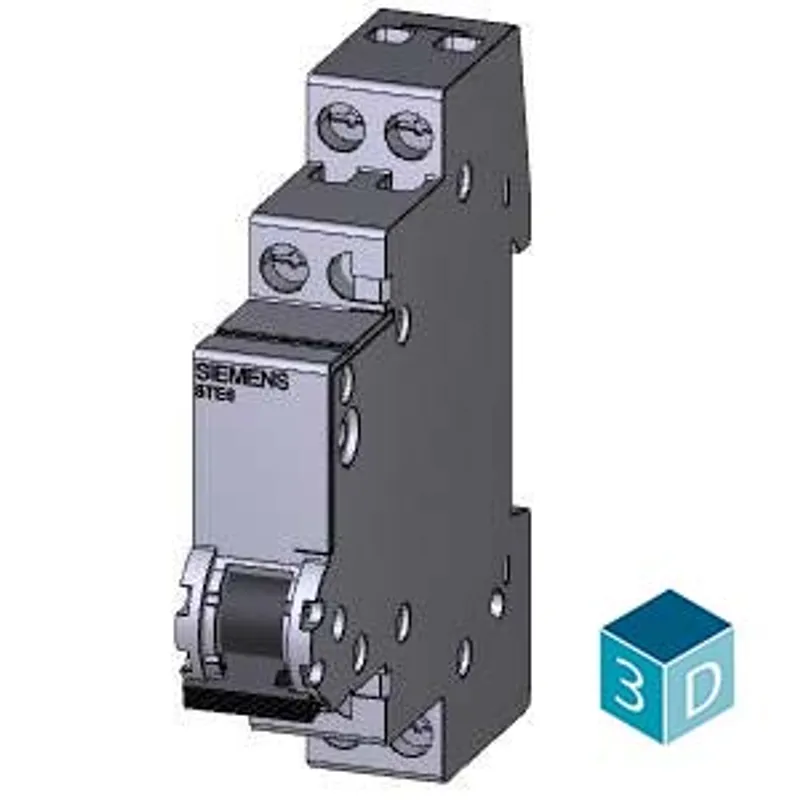

Siemens 5TE8141
Group switch 20 A 1 group
- MPN
- 5TE8141
- Category
- SENTRON 5TE8 Control Switches
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5TE8141?
Group switch 20 A 1 group
Specifications
Model
| product brand name | SENTRON |
| product designation | Group switch |
| design of the product | 1 changing switch |
| design of the switching function | group switch |
General technical data
| number of poles | 1 |
| short-circuit current rating | 10 kA |
| type of voltage of the operating voltage | AC |
Supply voltage
| operating voltage rated value | 230 V |
| value range of the operating frequency | 50/60 Hz |
Protection class
| protection class IP | other |
Breaking Capacity
| switching capacity current rated value | 0.06 kA |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.7 W |
Main circuit
| operational current rated value | 20 A |
Product details
| product component signal lamp | No |
Product function
| product function positive opening (acc. to DIN VDE 0113) | No |
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 6 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 6 mm² |
| tightening torque with screw-type terminals — minimum | 0.8 N·m |
| tightening torque with screw-type terminals — maximum | 1 N·m |

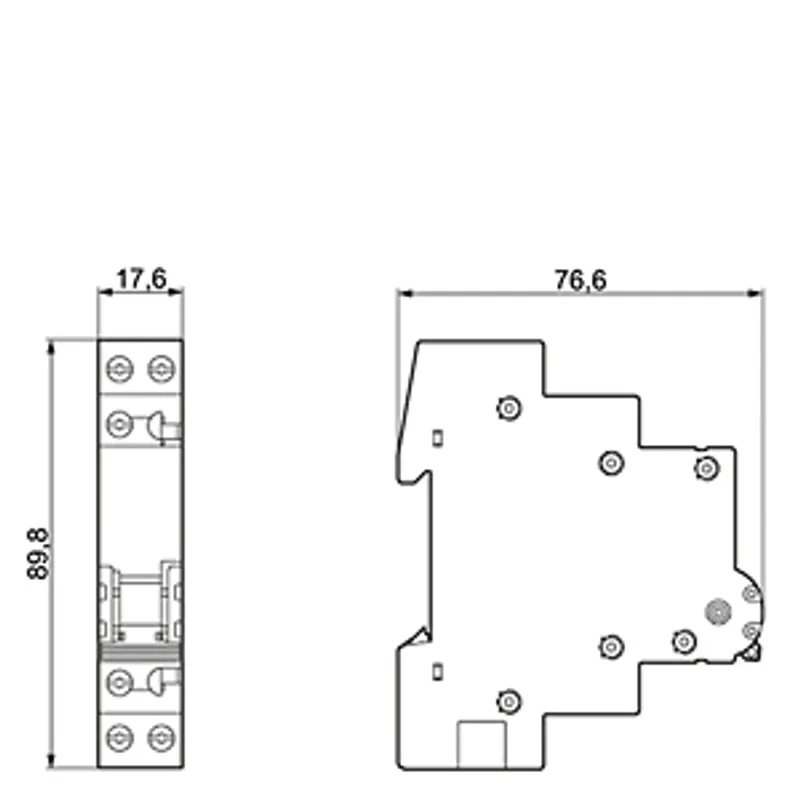

Mechanical Design
| height | 90 mm |
| depth | 77 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| Net Weight | 65 g |
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
| ambient temperature during storage minimum | -25 °C |
