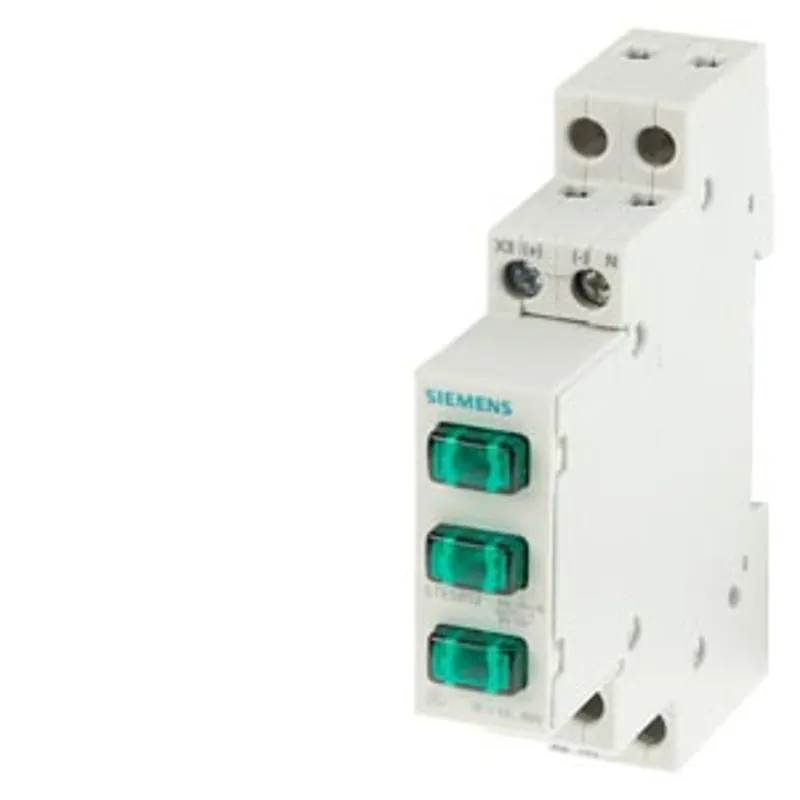

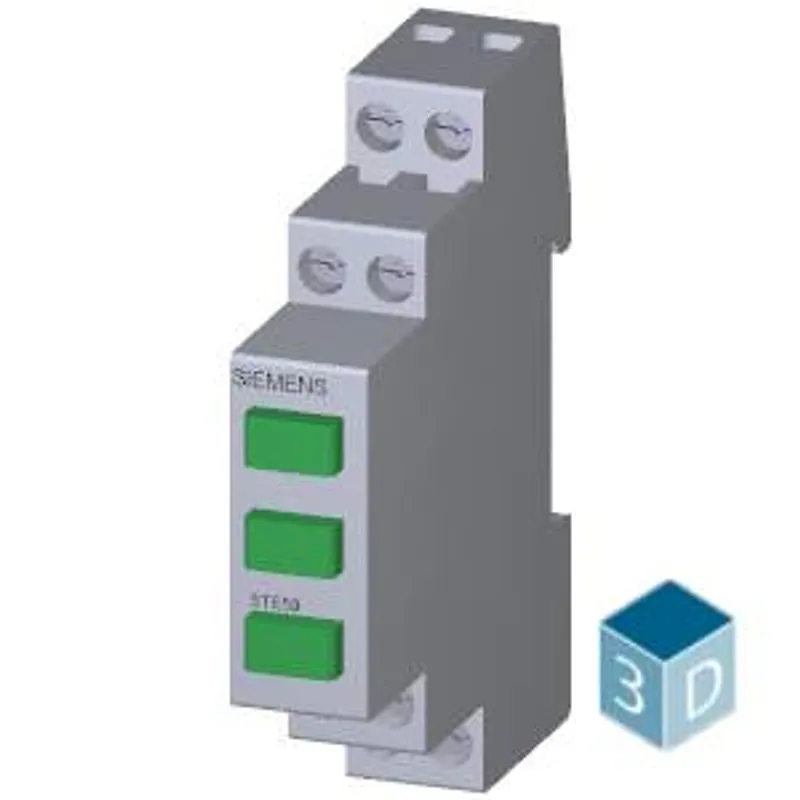

Siemens 5TE5802
Phase signaling device 3 lamps 230 V 3x green
- MPN
- 5TE5802
- Category
- SENTRON 5TE5 Light Indicators
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5TE5802?
Phase signaling device 3 lamps 230 V 3x green
Specifications
Model
| product brand name | SENTRON |
| product designation | 5TE5 indicator lights |
| design of the product | LED signal detector |
| type of light source | LED |
| socket design for light source | others |
| type of voltage of the operating voltage | AC |
Supply voltage
| operating voltage — rated value minimum | 230 V |
| operating voltage — rated value maximum | 230 V |
| operating voltage — at AC rated value | 230 V |
Protection class
| protection class IP | IP20 |
Appearance
| color of the lens | 3x green |
Number
| number of terminals with cross-head screw | 1 |
Connections
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 6 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1.5 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 6 mm² |
| tightening torque with screw-type terminals maximum | 1.2 N·m |

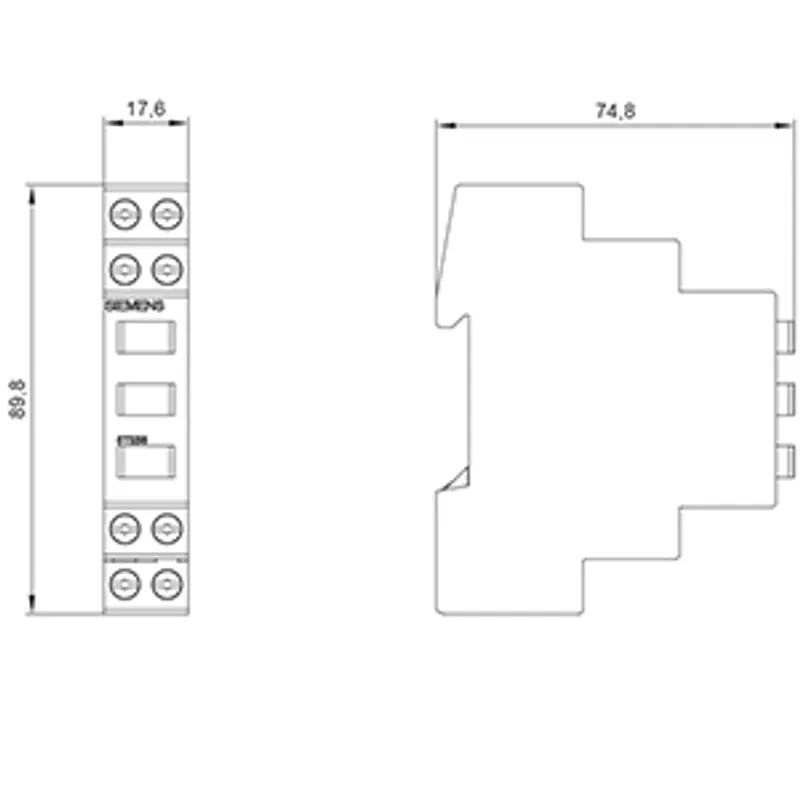

Mechanical Design
| height | 90 mm |
| depth | 64 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| Net Weight | 77 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TE5802: frequently asked questions
When can 5TE5802 be shipped?
5TE5802 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TE5802 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TE5802 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TE5802, subject to availability and destination.
