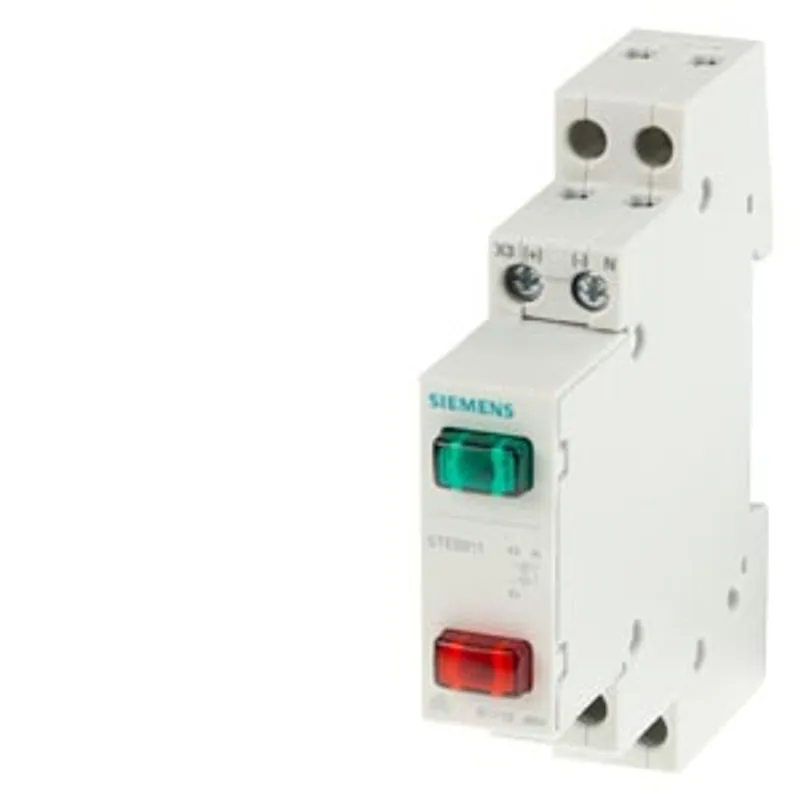

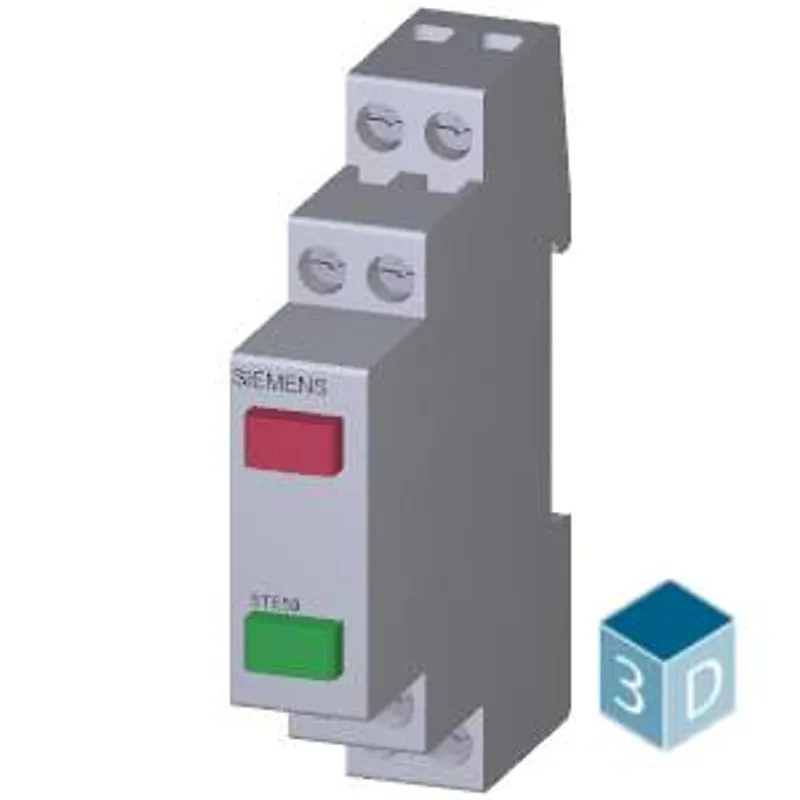

Siemens 5TE5801
Indicator light 2 lamps 230 V red green
- MPN
- 5TE5801
- Category
- SENTRON 5TE5 Light Indicators
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5TE5801?
Indicator light 2 lamps 230 V red green
Specifications
Model
| product brand name | SENTRON |
| product designation | 5TE5 indicator lights |
| design of the product | LED signal detector |
| type of light source | LED |
| socket design for light source | others |
| type of voltage of the operating voltage | AC |
Supply voltage
| operating voltage — rated value minimum | 230 V |
| operating voltage — rated value maximum | 230 V |
| operating voltage — at AC rated value | 230 V |
Protection class
| protection class IP | IP20 |
Appearance
| color of the lens | 1x green, 1x red |
Number
| number of terminals with cross-head screw | 1 |
Connections
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 6 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1.5 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 6 mm² |
| tightening torque with screw-type terminals maximum | 1.2 N·m |

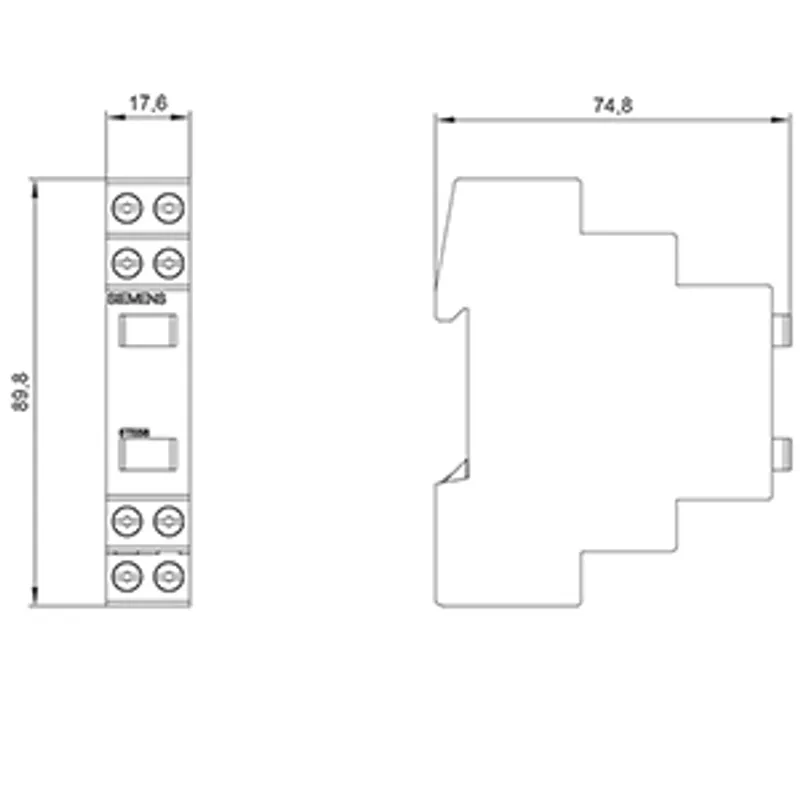

Mechanical Design
| height | 90 mm |
| depth | 64 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| Net Weight | 69 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
