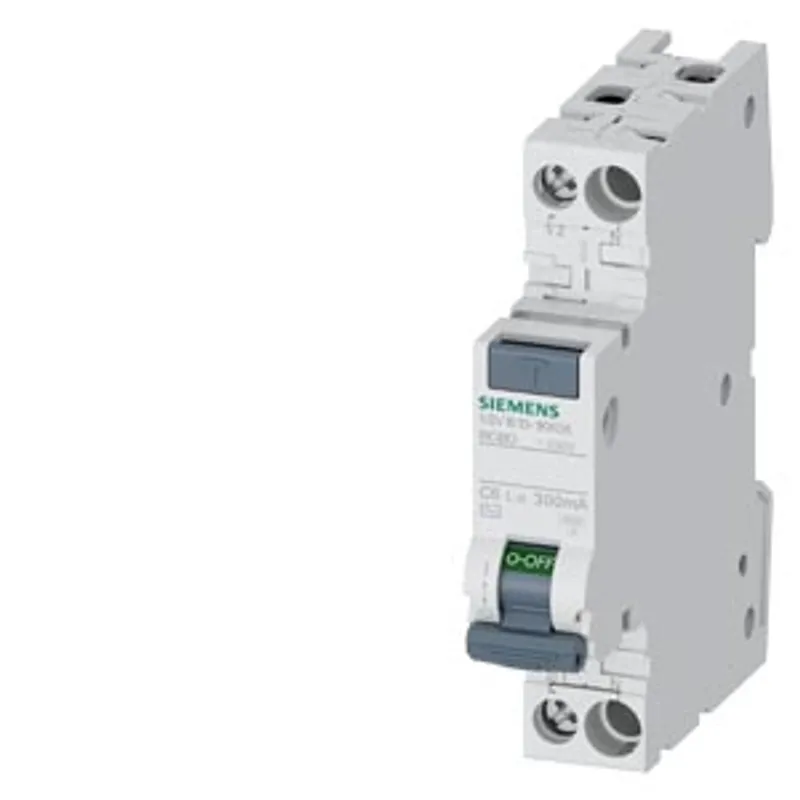

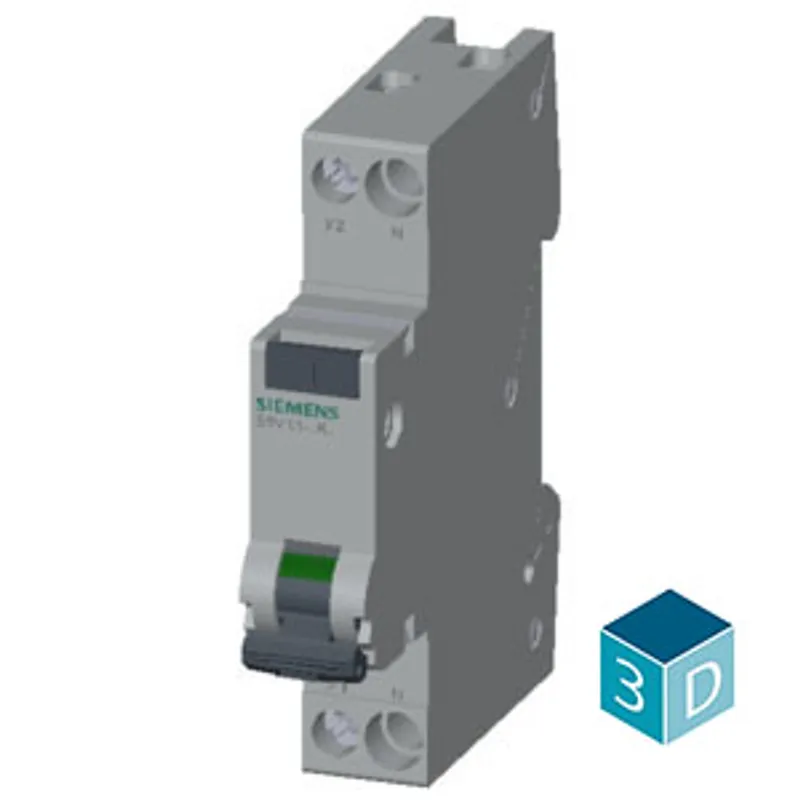

Siemens 5SV1613-1KK06

RCBO compact 1-pole+N 4.5 kA type AC 300 mA C6 use of these devices is not permitted in all countries

MPN
5SV1613-1KK06
Category
RCBOs
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SV1613-1KK06?

RCBO compact 1-pole+N 4.5 kA type AC 300 mA C6 use of these devices is not permitted in all countries. Observe national installation regulations!

Specifications

Model

product brand nameSENTRON
product designationRCBO
design of the productInstantaneous

General technical data

number of poles2
number of poles with protection1
design of pole1P+N
tripping characteristic classC
mechanical service life (operating cycles) typical10 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageAC
insulation voltage (Ui) rated value253 V
surge voltage resistance rated value4 000 V
tripping fault current rated value300 mA
operational current — at 30 °C rated value6 A
operational current — at 40 °C rated value5.64 A
operational current — at 45 °C rated value5.46 A
operational current — at 50 °C rated value5.28 A
operational current — at 55 °C rated value5.04 A
operational current — at 60 °C rated value4.86 A
operational current — at 65 °C rated value4.62 A
operational current — at 70 °C rated value4.44 A
operational current at AC rated value6 A
residual current typeAC

Supply voltage

supply voltage — at AC rated value230 V
supply voltage — for testing equipment minimum195 V
operating frequency50/60 Hz
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value4.5 kA
switching capacity current — according to IEC 60947-2 rated value5 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value4.5 kA
rated residual switching capacity (IΔm) according to IEC 61009-14.5 kA
energy limitation class3

Dissipation

power loss [W] — maximum1.2 W

Product details

product feature touch protectionYes
product component neutral conductor switchingYes
product feature halogen-freeYes
product feature silicon-freeYes

Connections

connectable conductor cross-section solid — minimum0.75 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.75 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
tightening torque with screw-type terminals — minimum1.2 N·m
tightening torque with screw-type terminals — maximum2 N·m
position of power supply cordEither top or bottom

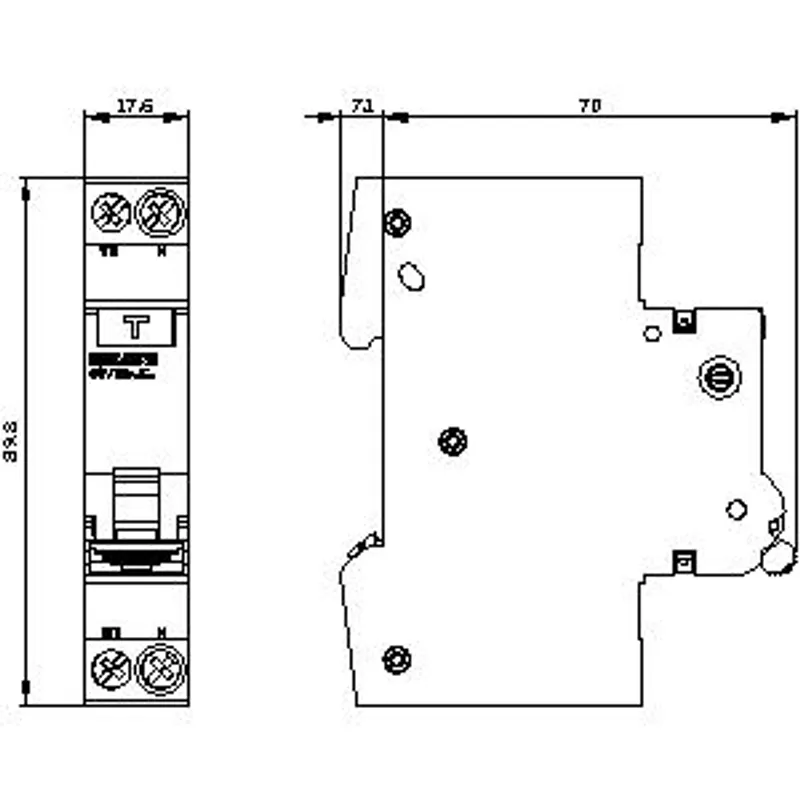

Mechanical Design

height90 mm
width18 mm
depth77 mm
installation depth70 mm
number of modular width units1
mounting positionany
Net Weight123 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum45 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SV1613-1KK06: frequently asked questions

When can 5SV1613-1KK06 be shipped?

5SV1613-1KK06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SV1613-1KK06 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SV1613-1KK06 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV1613-1KK06, subject to availability and destination.
