Siemens 5SV1613-1KK04-Z W01 – RCBO compact 1P+N 4.5 kA type AC 300 mA C4 Multi-unit…

Name: Siemens 5SV1613-1KK04-Z W01 – RCBO compact 1P+N 4.5 kA type AC 300 mA C4 Multi-unit…
Brand: Siemens
SKU: 5SV1613-1KK04-Z W01

MPN: 5SV1613-1KK04-Z W01 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.12 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 5SV1613-1KK04-Z W01 be shipped?

5SV1613-1KK04-Z W01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SV1613-1KK04-Z W01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SV1613-1KK04-Z W01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SV1613-1KK04-Z W01, subject to availability and destination.

RCBO compact 1P+N 4.5 kA type AC 300 mA C4 Multi-unit packaging (12 units)

Specifications

Model

product brand name	SENTRON
product designation	RCBO
design of the product	Instantaneous

General technical data

number of poles	2
number of poles with protection	1
design of pole	1P+N
tripping characteristic class	C
mechanical service life (operating cycles) typical	10 000
overvoltage category	3
degree of pollution	2

Voltage

type of voltage of the operating voltage	AC
insulation voltage (Ui) rated value	253 V
surge voltage resistance rated value	4 000 V
tripping fault current rated value	300 mA
operational current — at 30 °C rated value	4 A
operational current — at 40 °C rated value	3.8 A
operational current — at 45 °C rated value	3.72 A
operational current — at 50 °C rated value	3.6 A
operational current — at 55 °C rated value	3.52 A
operational current — at 60 °C rated value	3.4 A
operational current — at 65 °C rated value	3.32 A
operational current — at 70 °C rated value	3.2 A
operational current at AC rated value	4 A
residual current type	AC

Supply voltage

supply voltage — at AC rated value	230 V
supply voltage — for testing equipment minimum	195 V
operating frequency	50/60 Hz
supply voltage frequency rated value	50 Hz

Protection class

protection class IP

IP20, if the distribution board is installed, with connected conductors

Breaking Capacity

switching capacity current — according to EN 60898 rated value	4.5 kA
switching capacity current — according to IEC 60947-2 rated value	5 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value	4.5 kA
rated residual switching capacity (IΔm) according to IEC 61009-1	4.5 kA
energy limitation class	3

Dissipation

power loss [W] — maximum

2.3 W

Product details

product feature touch protection	Yes
product component neutral conductor switching	Yes
product feature halogen-free	Yes
product feature silicon-free	Yes

Connections

connectable conductor cross-section solid — minimum	0.75 mm²
connectable conductor cross-section solid — maximum	16 mm²
connectable conductor cross-section stranded — minimum	0.75 mm²
connectable conductor cross-section stranded — maximum	16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum	0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum	10 mm²
tightening torque with screw-type terminals — minimum	1.2 N·m
tightening torque with screw-type terminals — maximum	2 N·m
position of power supply cord	Either top or bottom

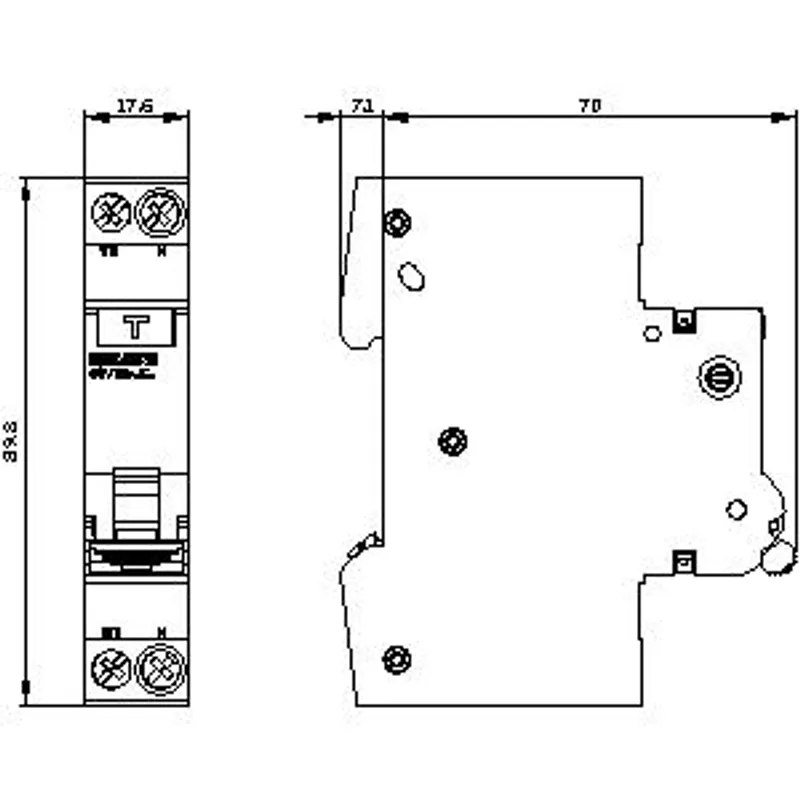

Mechanical Design

height	90 mm
width	18 mm
depth	77 mm
installation depth	70 mm
number of modular width units	1
mounting position	any
Net Weight	131 g

Environmental conditions

influence of the surrounding temperature	Max. 95% humidity
ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	45 °C
ambient temperature during storage — minimum	-40 °C
ambient temperature during storage — maximum	75 °C
number of test cycles for environmental testing according to IEC 60068-2-30	28
