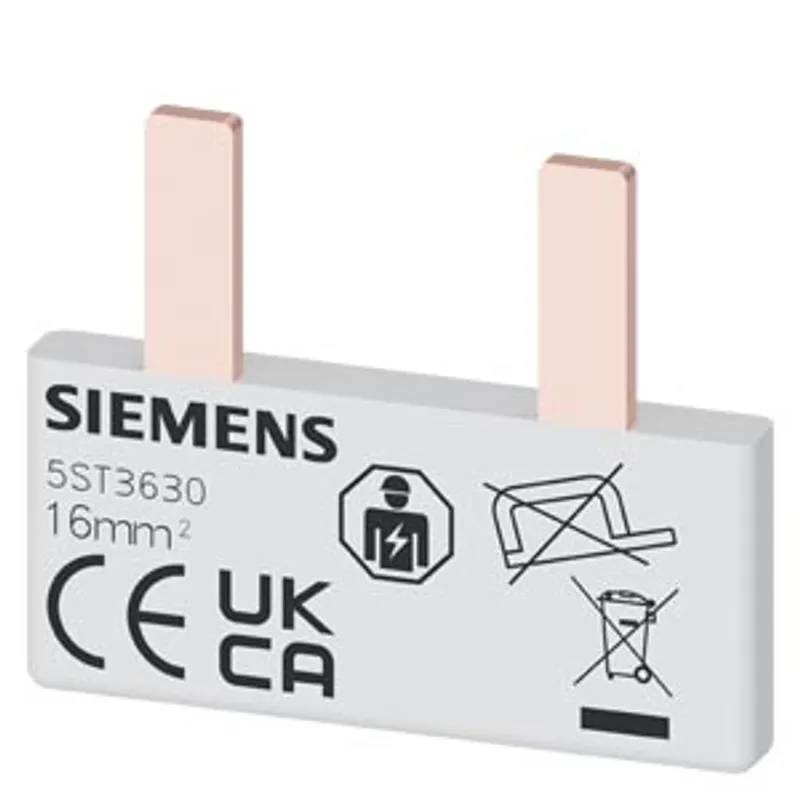

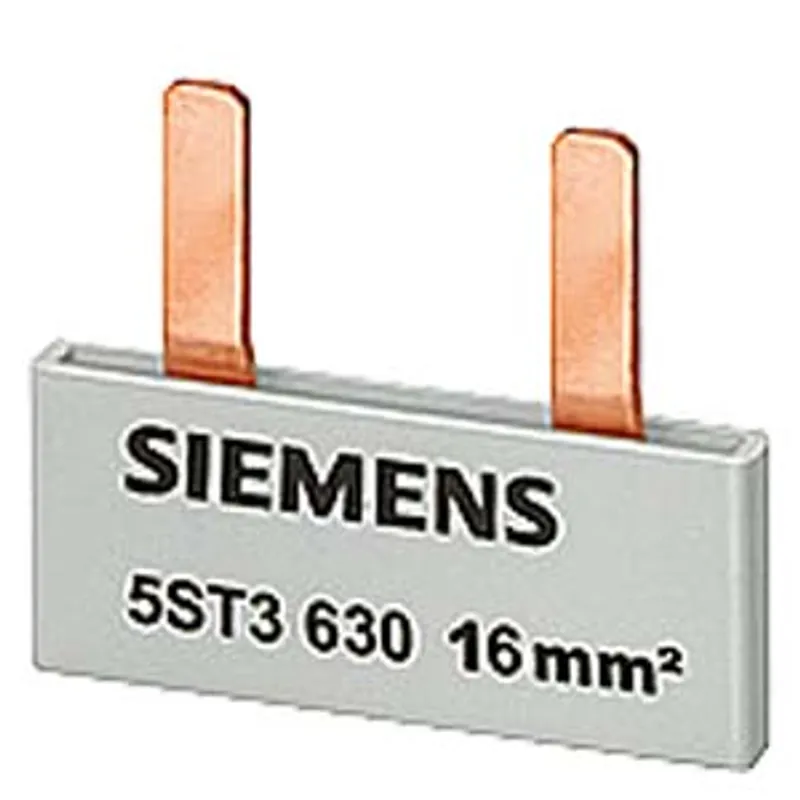

Siemens 5ST3630
Pin busbar, 16 mm2 connection: 2x 1-phase touch-safe
- MPN
- 5ST3630
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST3630?
Pin busbar, 16 mm2 connection: 2x 1-phase touch-safe
Specifications
General
| product brand name | SENTRON |
| product designation | Pin busbar |
| design of the product | 2x 1PH |
| design of the phase tap | L1/L1 |
General technical data
| compatibility | for 2 MCBs 1P |
| design of pole | 1 pole |
| phase number | 1 |
| operational current rated value | 80 A |
| suitability for interaction devices with auxiliary switch | No |
| suitability for interaction devices with N conductor | No |
| color | light grey |
Product details
| product feature attachable arc fault detection device | No |
| product feature insulated | Yes |
| product function — suitable for compact devices | No |
| product function — can be cut | No |
| number of devices suitable for fitting | 2 |
| type of electrical connection | Pin |

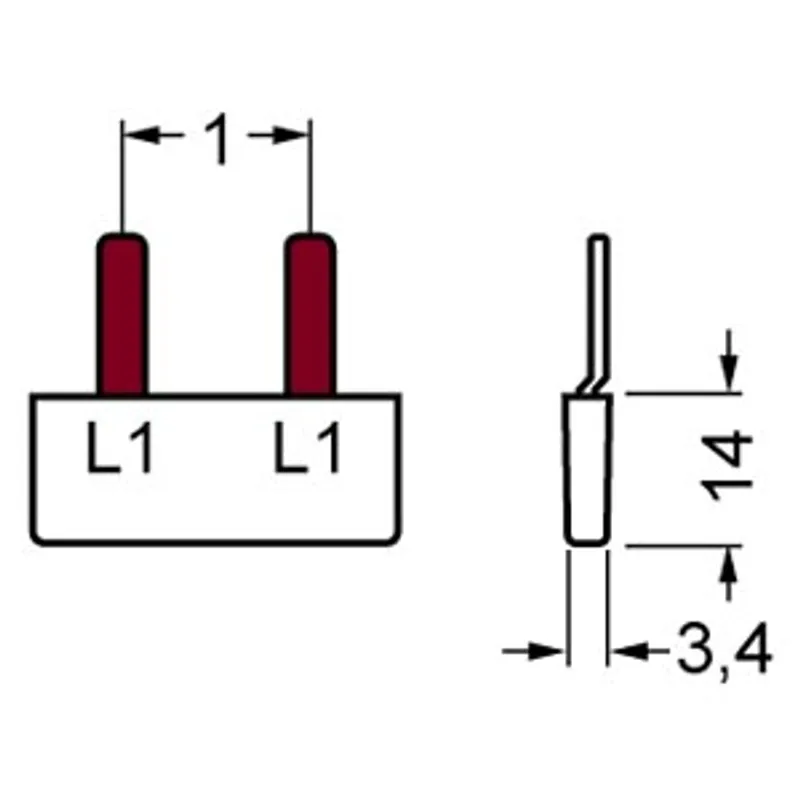

Mechanical Design
| module width | 18 mm |
| height | 14 mm |
| width | 3 mm |
| length | 33 mm |
| number of modular width units | 2 |
| cross-section | 16 mm² |
| angle of the pin of busbar | 0° |
| Net Weight | 9 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5ST3630: frequently asked questions
When can 5ST3630 be shipped?
5ST3630 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ST3630 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ST3630 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST3630, subject to availability and destination.
