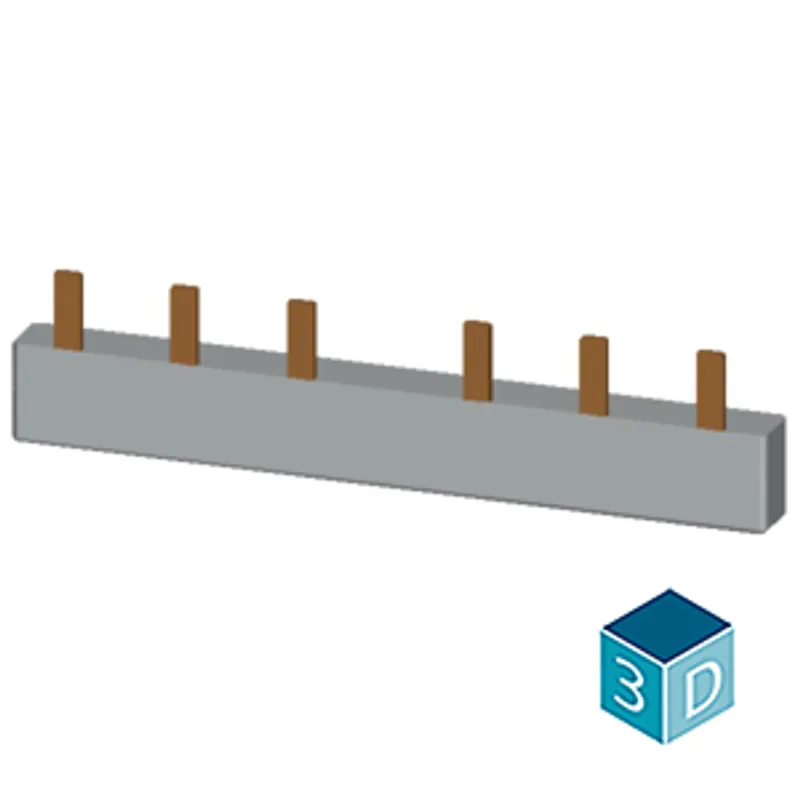

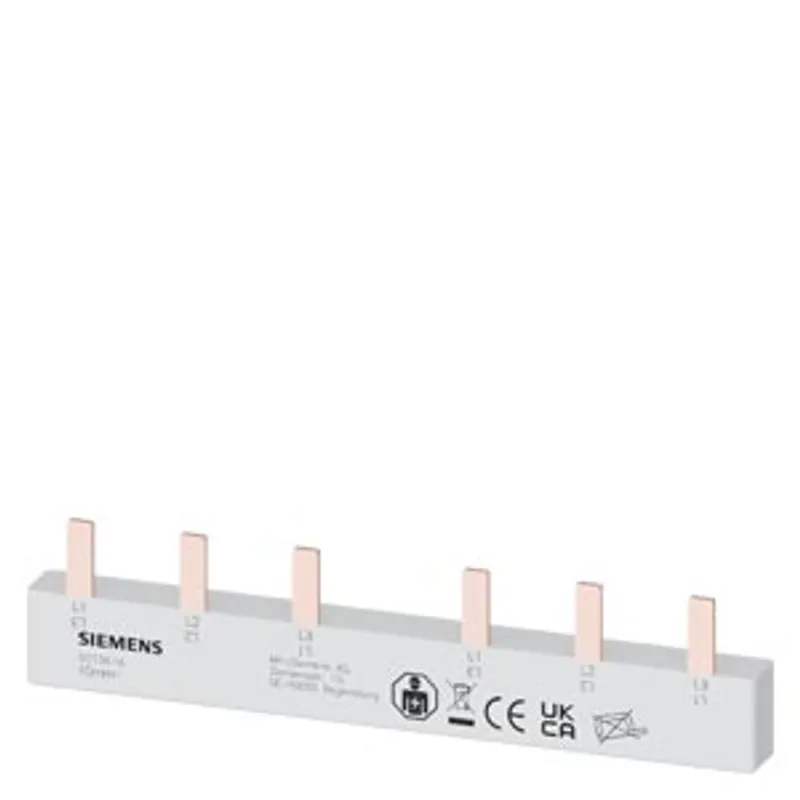

Siemens 5ST3616
Pin busbar, 10 mm2 connection: 2x (3-phase+AUX/FS) touch-safe
- MPN
- 5ST3616
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST3616?
Pin busbar, 10 mm2 connection: 2x (3-phase+AUX/FS) touch-safe
Specifications
General
| product brand name | SENTRON |
| product designation | Pin busbar |

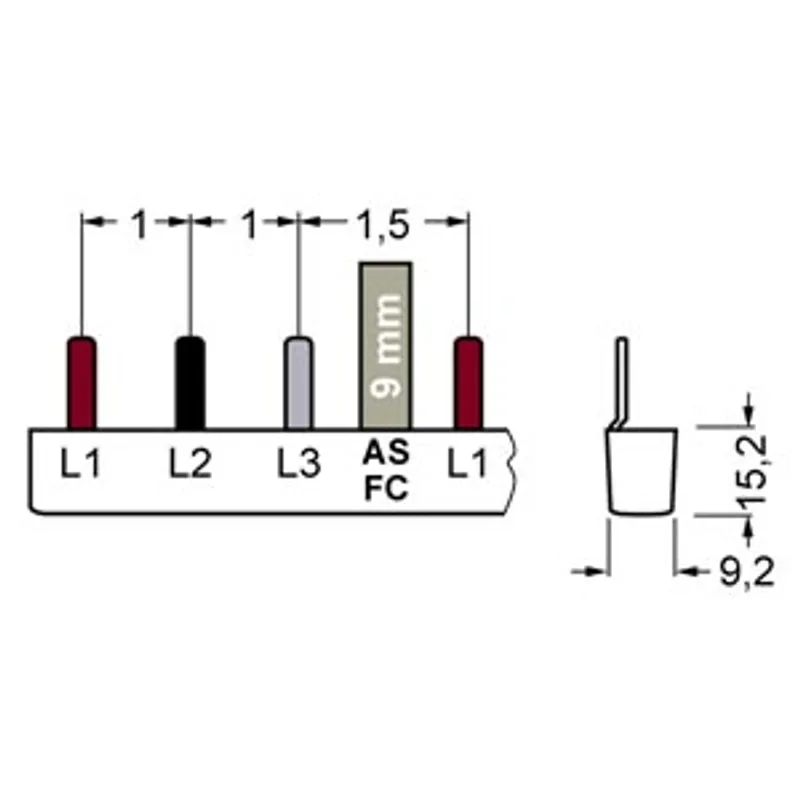

| design of the product | 2x (3PH+HS) |
| design of the phase tap | L1/L2/L3 |
General technical data
| compatibility | for 2 MCBs 3P |
| design of pole | 3 poles |
| phase number | 3 |
| operational current rated value | 63 A |
| suitability for interaction devices with auxiliary switch | Yes |
| suitability for interaction devices with N conductor | No |
| color | light grey |
Product details
| product feature attachable arc fault detection device | No |
| product feature insulated | Yes |
| product function — suitable for compact devices | No |
| product function — can be cut | No |
| number of devices suitable for fitting | 2 |
| type of electrical connection | Pin |

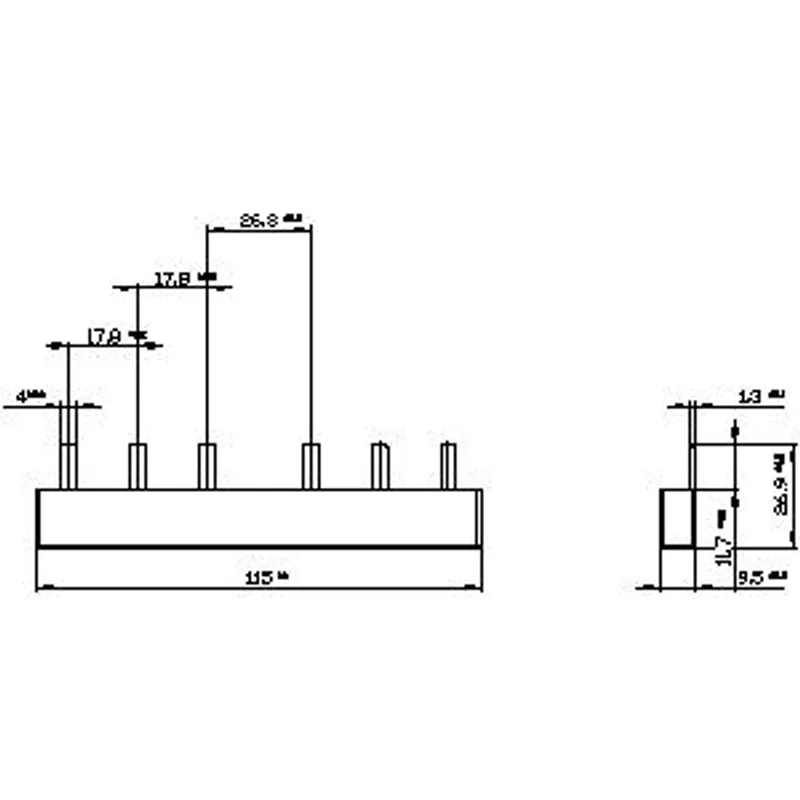

Mechanical Design
| module width | 18 mm |
| height | 15 mm |
| width | 9 mm |
| length | 115 mm |
| number of modular width units | 6 |
| cross-section | 10 mm² |
| angle of the pin of busbar | 0° |
| Net Weight | 38 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5ST3616: frequently asked questions
When can 5ST3616 be shipped?
5ST3616 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ST3616 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ST3616 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST3616, subject to availability and destination.
