Siemens 5ST3011-0HG

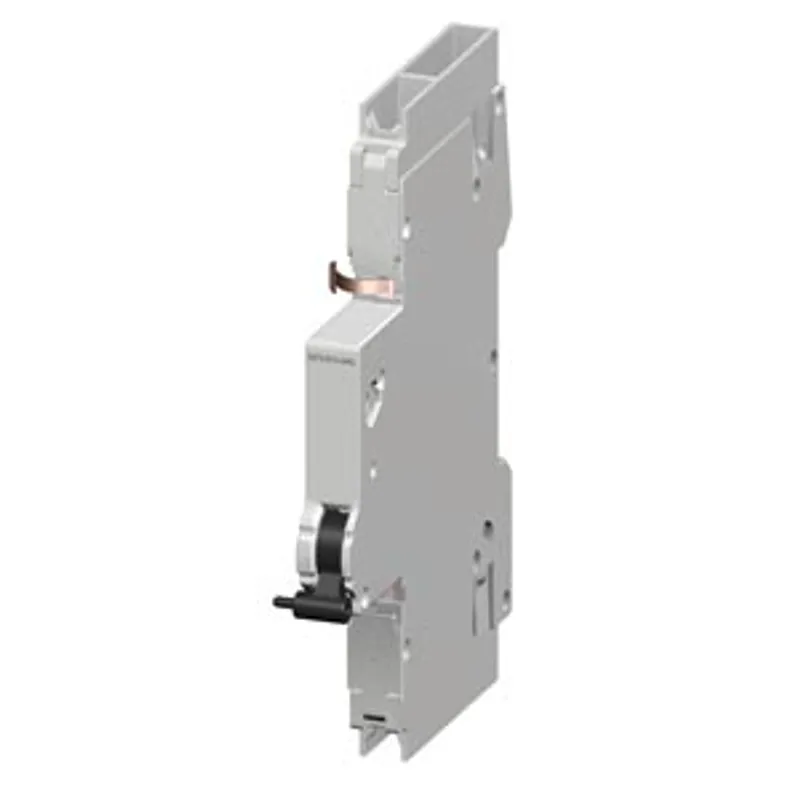

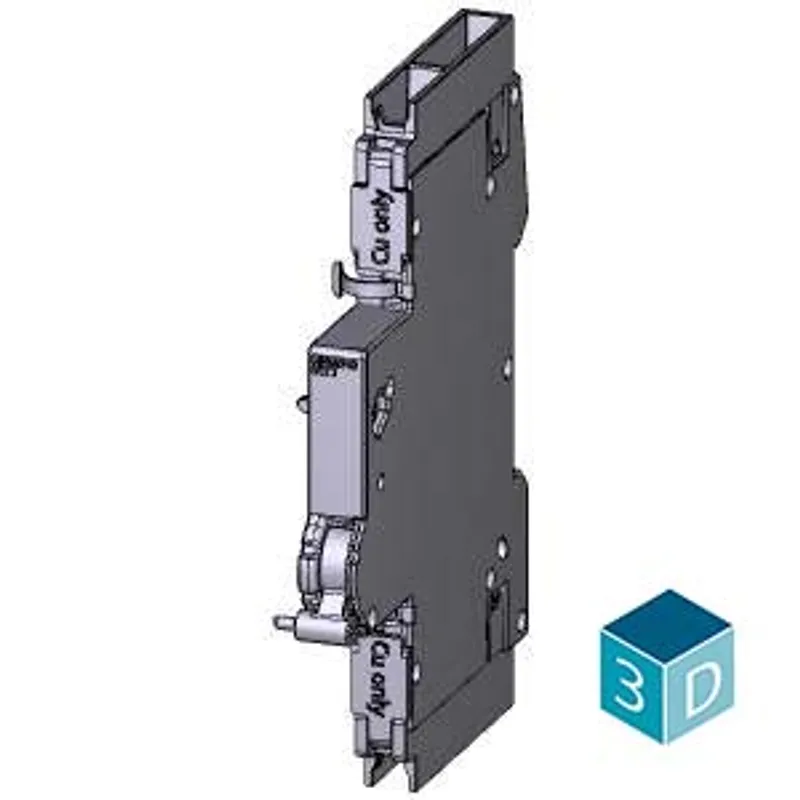

Auxiliary switch 2 NO, for miniature circuit breaker according to UL 489

MPN: 5ST3011-0HG
Category: Circuit Protection & Switching

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5ST3011-0HG?

auxiliary switch 2 NO, for miniature circuit breaker according to UL 489

Specifications

Model

product brand name	SENTRON
product designation	auxiliary switches
design of the product	Mountable
design of the product factory mounted	No
electrical endurance (operating cycles) typical	6 000

Voltage

insulation voltage rated value	440 V
surge voltage resistance rated value	4 kV

Current

operational current at DC rated value

0.01 A

Supply voltage

supply voltage at DC rated value — minimum	12 V
operating voltage — rated value	480 V
operating voltage — at AC rated value minimum	12 V
operating voltage — at DC rated value minimum	12 V
protection class IP	IP20

Control current

type of voltage of control voltage

AC/DC

Product details

product component — auxiliary switch	Yes
number of fault signal contacts	0
number of NC contacts	0

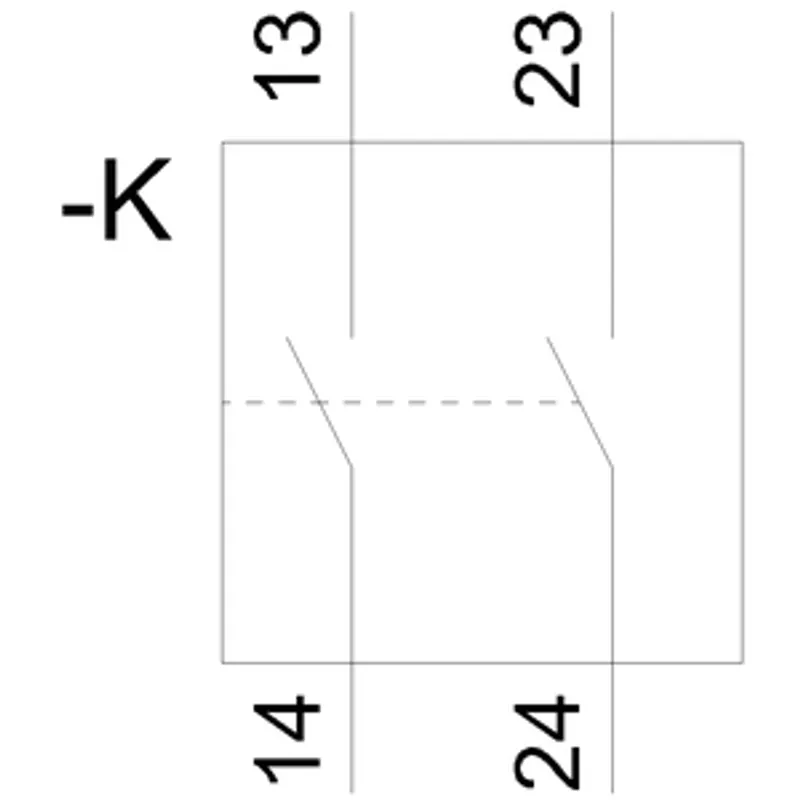

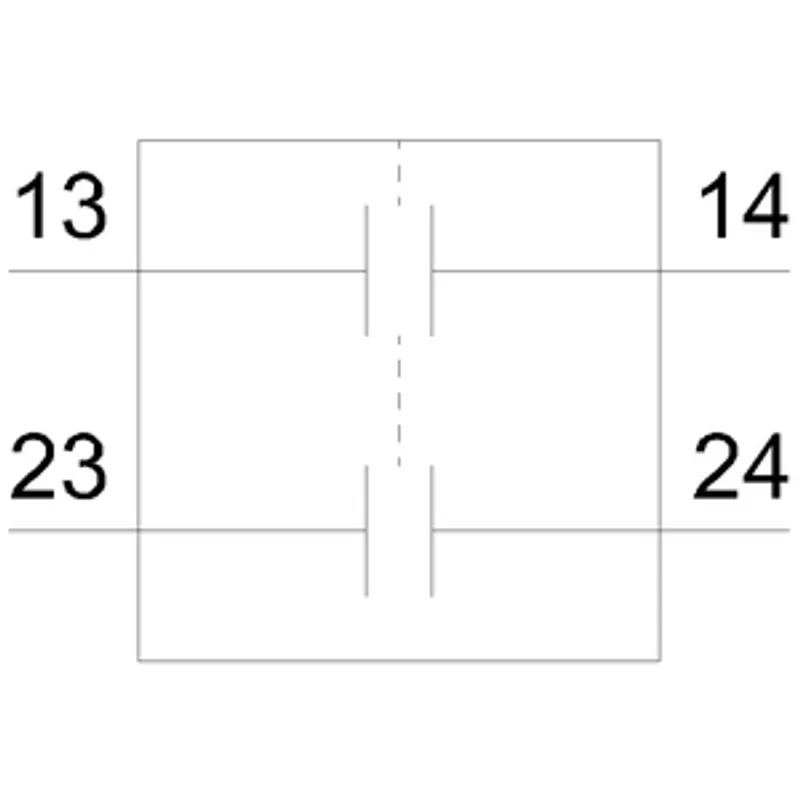

number of NO contacts	2
number of CO contacts	0
product extension can be mounted	Circuit breaker
product extension	auxiliary switch

Connections

connectable conductor cross-section — minimum	0.5 mm²
connectable conductor cross-section — maximum	2.5 mm²
AWG number as coded connectable conductor cross section — minimum	24
AWG number as coded connectable conductor cross section — maximum	12
tightening torque with screw-type terminals — maximum	0.5 N·m

Mechanical Design

height	110 mm
width	9 mm
depth	70 mm
number of modular width units	1
Net Weight	82 g

Environmental conditions

standard

IEC/EN60947-5-1; IEC/EN62019; UL489
