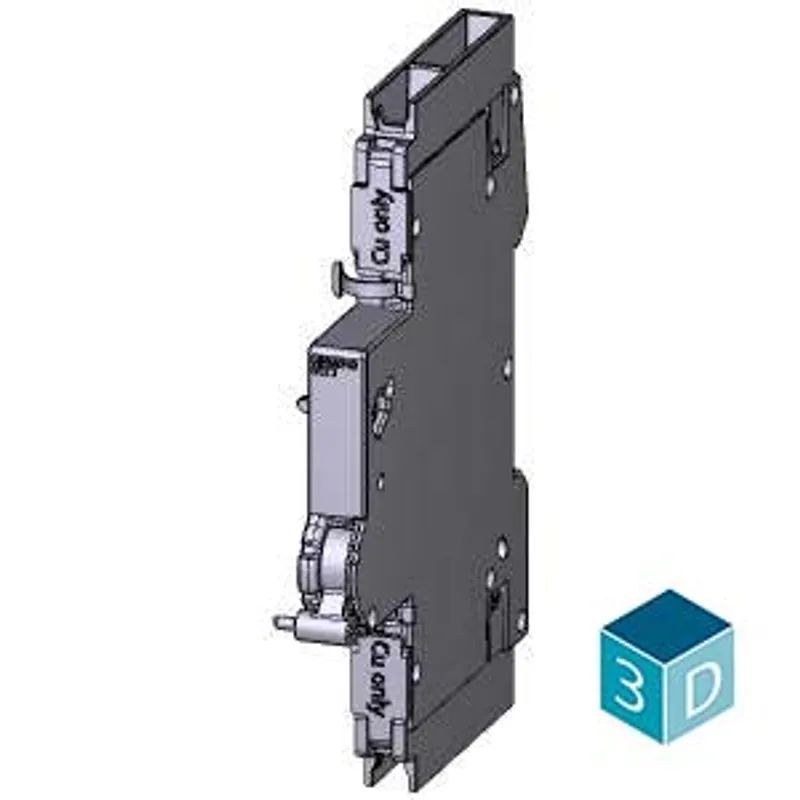

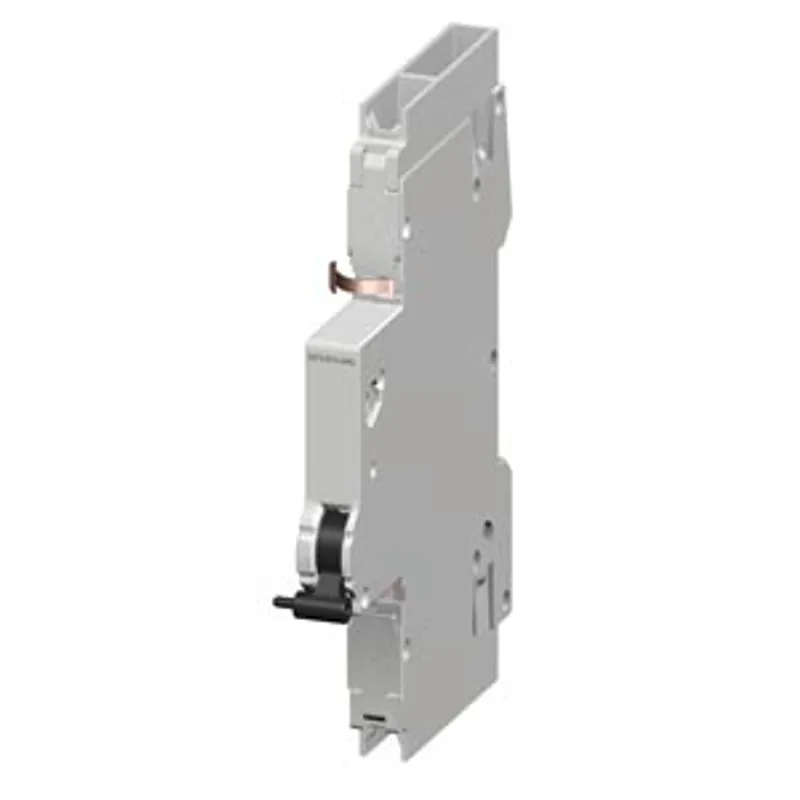

Siemens 5ST3010-0HG-Z W15
Auxiliary switch 1 NO+1 NC, for miniature circuit breaker according to UL 489 multi-unit packaging (80 units)
- MPN
- 5ST3010-0HG-Z W15
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5ST3010-0HG-Z W15?
auxiliary switch 1 NO+1 NC, for miniature circuit breaker according to UL 489 multi-unit packaging (80 units)
Specifications
Model
| product brand name | SENTRON |
| product designation | auxiliary switches |
| design of the product | Mountable |
| design of the product factory mounted | No |
| electrical endurance (operating cycles) typical | 6 000 |
Voltage
| insulation voltage rated value | 440 V |
| surge voltage resistance rated value | 4 kV |
Current
| operational current at DC rated value | 0.01 A |
Supply voltage
| supply voltage at DC rated value — minimum | 12 V |
| operating voltage — rated value | 480 V |
| operating voltage — at AC rated value minimum | 12 V |
| operating voltage — at DC rated value minimum | 12 V |
| protection class IP | IP20 |
Control current
| type of voltage of control voltage | AC/DC |
Product details
| product component — auxiliary switch | Yes |
| number of fault signal contacts | 0 |
| number of NC contacts | 1 |
| number of NO contacts | 1 |
| number of CO contacts | 0 |
| product extension can be mounted | Circuit breaker |
| product extension | auxiliary switch |
| product function test function for fault current trip | No |
Connections
| connectable conductor cross-section — minimum | 0.5 mm² |
| connectable conductor cross-section — maximum | 2.5 mm² |
| AWG number as coded connectable conductor cross section — minimum | 24 |
| AWG number as coded connectable conductor cross section — maximum | 12 |
| tightening torque with screw-type terminals — maximum | 0.5 N·m |

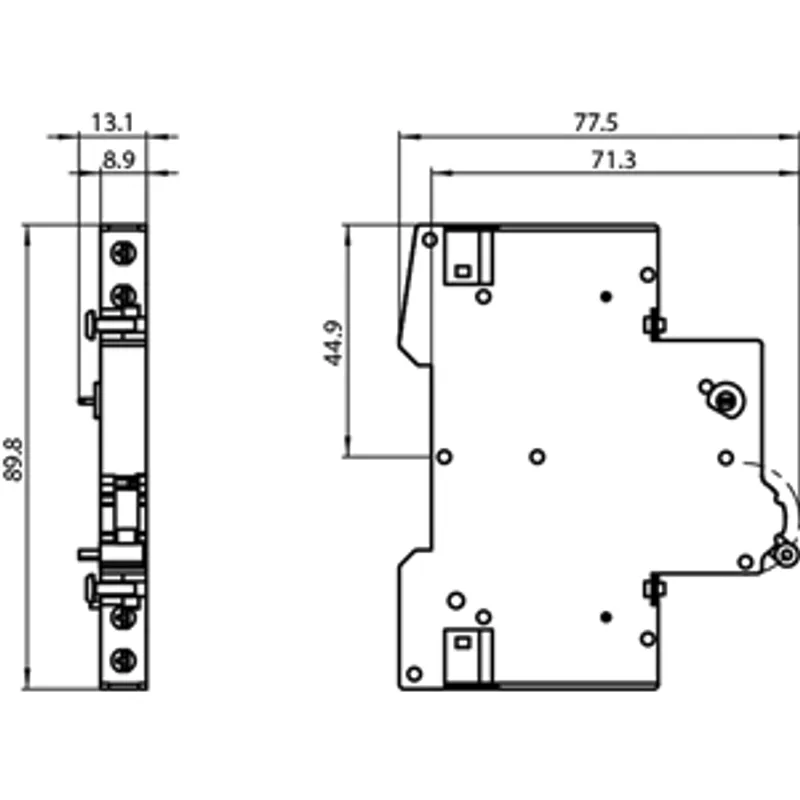

Mechanical Design
| height | 110 mm |
| width | 9 mm |
| depth | 70 mm |
| number of modular width units | 1 |
| Net Weight | 55.7 g |
Environmental conditions
| standard | IEC/EN60947-5-1; IEC/EN62019; UL489 |
