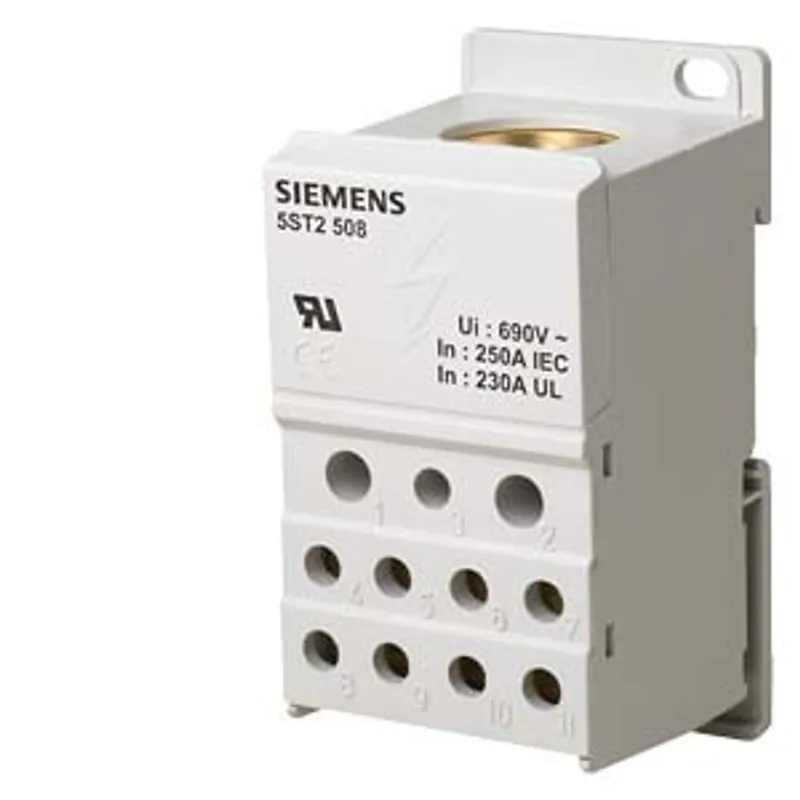

Siemens 5ST2508
Distribution block 1-pole, IEC 250 A, 1000 V AC / 1500 V DC; UL 230 A, 600 V AC/DC; input: 1x 35-120 mm2
- MPN
- 5ST2508
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5ST2508?
distribution block 1-pole, IEC 250 A, 1000 V AC / 1500 V DC; UL 230 A, 600 V AC/DC; input: 1x 35-120 mm2, output: 2x 2.5-35 mm2, 5x 2.5-16 mm2, 4x 2.5-10 mm2 for DIN-rail mounting
Specifications
Model
| product brand name | SENTRON |
| product designation | Distribution block |
| design of the product | distribution block |
| operating voltage rated value | 1 000 V |
Main circuit
| operational current rated value | 250 A |
Appearance
| color | grey |
Number
| number of terminal levels | 3 |
Connections
| connectable conductor cross-section solid — minimum | 2.5 mm² |
| connectable conductor cross-section solid — maximum | 120 mm² |
| connectable conductor cross-section stranded — minimum | 2.5 mm² |
| connectable conductor cross-section stranded — maximum | 120 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 2.5 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 95 mm² |
| type of connection 1 | screw-type terminal |
| type of connection 2 | screw-type terminal |
| position of the terminal | bottom |

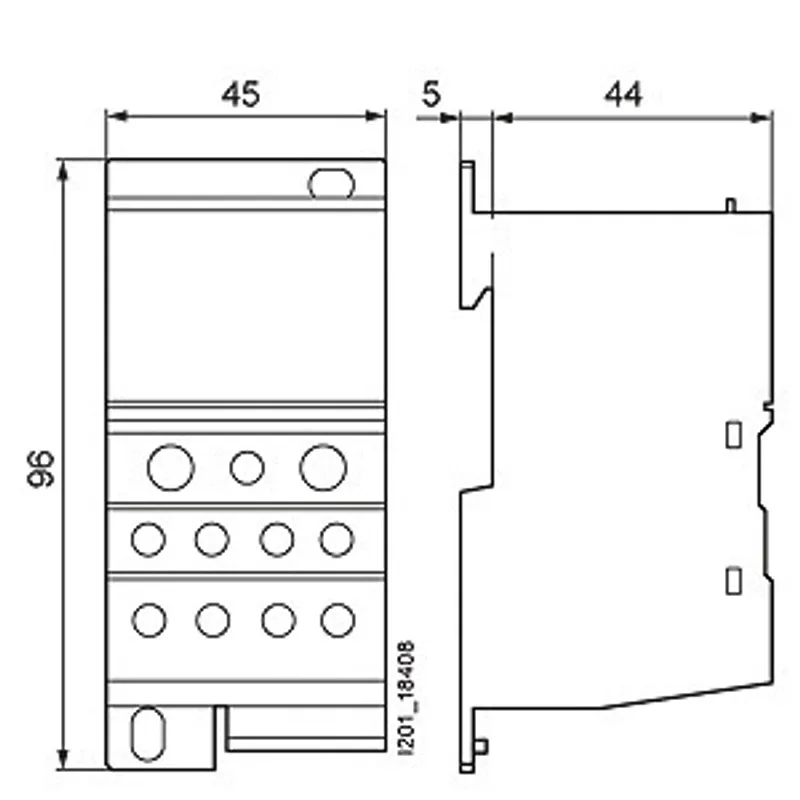

Mechanical Design
| height | 44 mm |
| length | 96 mm |
| fastening method | DIN rail |
| Net Weight | 429 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 70 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5ST2508: frequently asked questions
When can 5ST2508 be shipped?
5ST2508 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ST2508 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ST2508 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST2508, subject to availability and destination.
