Home / Siemens / Circuit Protection & Switching / Siemens 5ST2505
Siemens

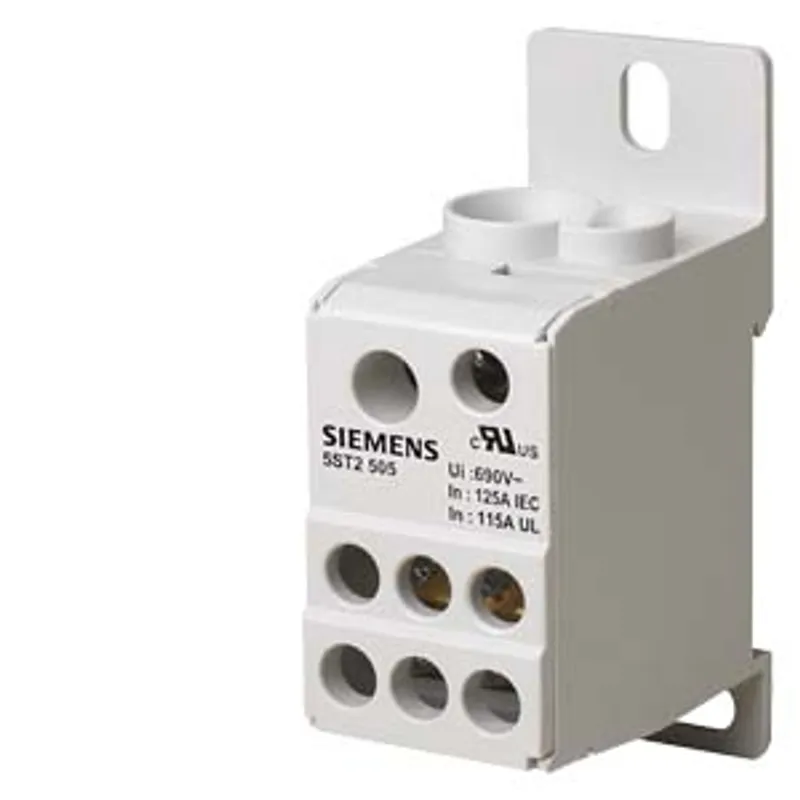

Siemens 5ST2505

Distribution block 1-pole, IEC 125 A, 1000 V AC / 1500 V DC; UL 115 A, 600 V AC/DC

MPN
5ST2505
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 5ST2505?

distribution block 1-pole, IEC 125 A, 1000 V AC / 1500 V DC; UL 115 A, 600 V AC/DC; input: 1x 10-35 mm2 + 1x 2.5-25 mm2, output: 6x 2.5-16 mm2 for DIN-rail mounting

Specifications

Model

product brand nameSENTRON
product designationDistribution block
design of the productdistribution block
operating voltage rated value1 000 V

Main circuit

operational current rated value125 A

Appearance

colorgrey

Number

number of terminal levels2
number of terminal points per terminal level3

Connections

connectable conductor cross-section solid — minimum2.5 mm²
connectable conductor cross-section solid — maximum35 mm²
connectable conductor cross-section stranded — minimum2.5 mm²
connectable conductor cross-section stranded — maximum35 mm²
connectable conductor cross-section finely stranded — with core end processing minimum2.5 mm²
connectable conductor cross-section finely stranded — with core end processing maximum35 mm²
type of connection 1screw-type terminal
type of connection 2screw-type terminal
position of the terminalbottom

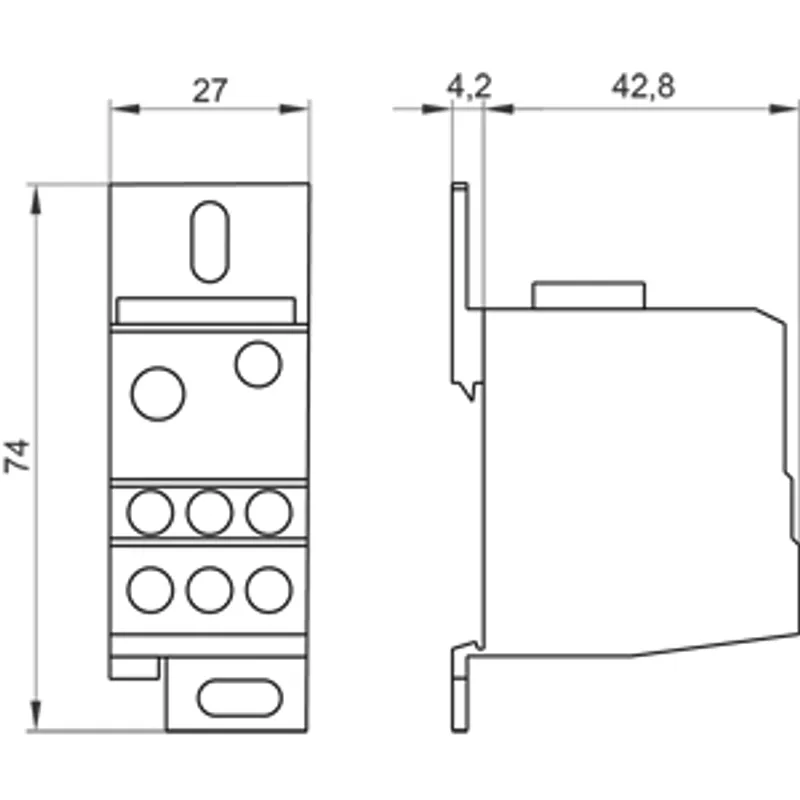

Mechanical Design

height43 mm
length74 mm
fastening methodDIN rail
Net Weight144 g
material of the insulating bodyOther

Environmental conditions

ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum70 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5ST2505: frequently asked questions

When can 5ST2505 be shipped?

5ST2505 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5ST2505 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5ST2505 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST2505, subject to availability and destination.
