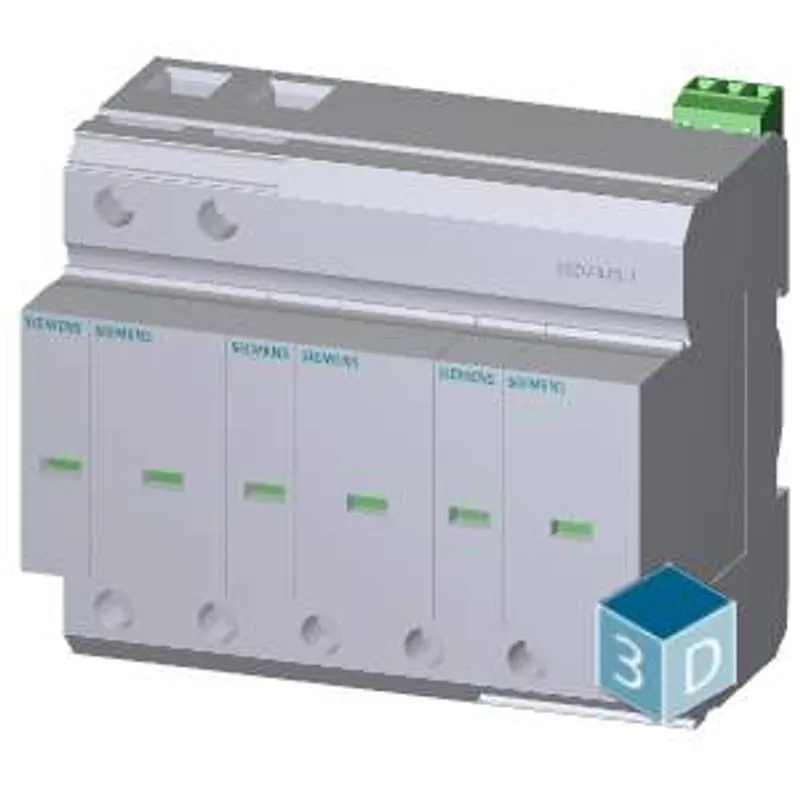

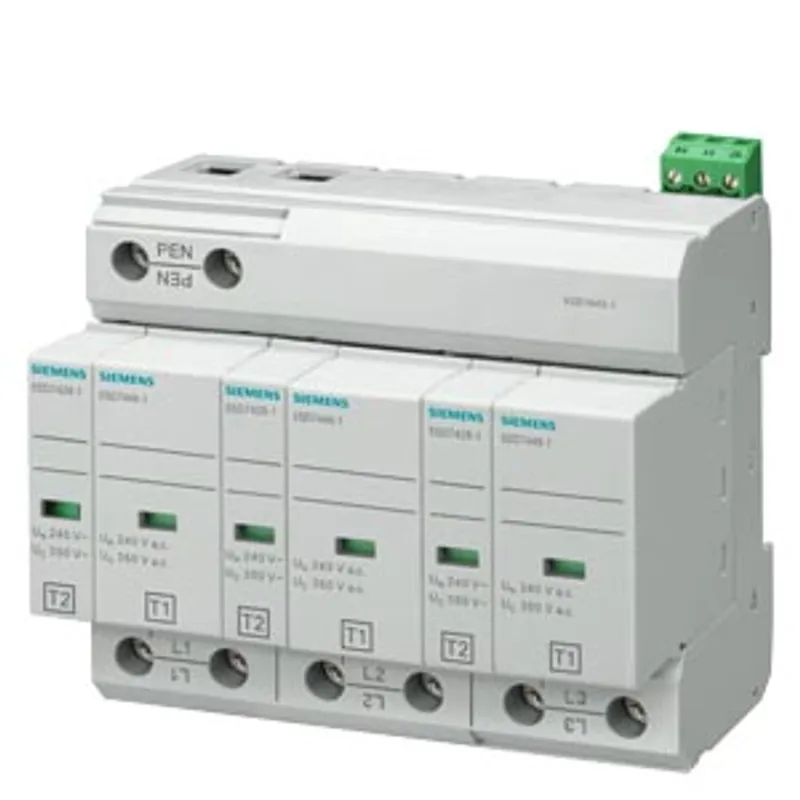

Siemens 5SD7443-1

Combination arrester type 1+2 requirement class B+C, Uc 350 V, protective modules, plug-in, 3-pole

MPN
5SD7443-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SD7443-1?

combination arrester type 1+2 requirement class B+C, Uc 350 V, protective modules, plug-in, 3-pole, 3+0 circuit for TNC systems, with remote display

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
SPD classification according to EN 61643-11 — Test Class I, Type 1Yes
SPD classification according to EN 61643-11 — Test Class II, Type 2Yes
SPD classification according to EN 61643-11 — Test Class III, Type 3No
number of SPD ports1
design of the productArrester combination
design of pole3
designation of the protective pathsL-PEN
accessories3 x 5SD7428-1 + 3 x 5SD7448-1
fastening methodTH35 DIN rail
material of the enclosurePBT
size of surge arrester6 MW
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
shock acceleration25 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn
relative humidity during operation5 ... 95 %
installation altitude at height above sea level maximum2 000 m

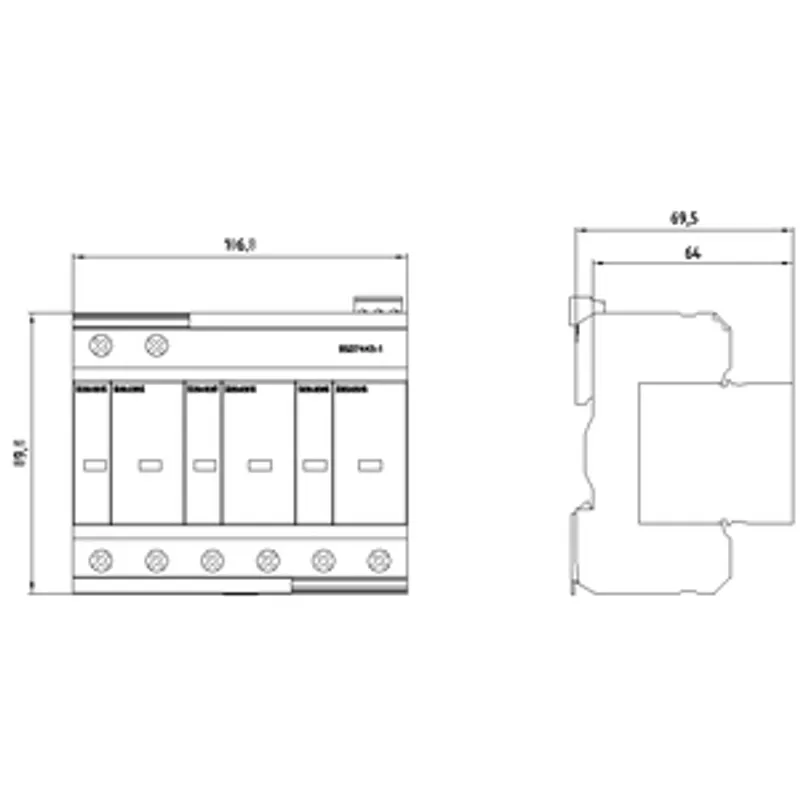

width106.9 mm
height95 mm
depth71.5 mm

Electrical data

type of distribution systemTN-C
operating voltage — at AC230 V
value range of the operating frequency50 / 60 Hz
continuous operating voltage — at AC maximum350 V
apparent power consumption maximum300 mVA
discharge current at (8/20) µs25 kA
lightning current peak value at (10/350) µs25 kA
charge of the flash at (10/350) µs12.5 A·s
specific energy of the flash at (10/350) µs160 kJ/?
follow current extinguishing capability25 kA (264 V AC), 3 kA (350 V AC)
short-circuit rating (SCCR) at 264 V25 kA
protection level — maximum1.5 kV
residual voltage — at rated value of discharge current maximum1.5 kV
residual voltage — at 10 kA maximum1.2 kV
residual voltage — at 5 kA maximum1 kV
residual voltage — at 3 kA maximum0.9 kV
response value of the surge voltage at 6 kV at (1.2/50) µs1.5 kV
Response time25 ns
adjustable response factor of tripping current1.6
fuse protection type at V-shaped connection125 A AC (gG)
fuse protection type for T-connector315 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal
stripped length18 mm
tightening torque4.3 ... 4.7 N·m
connectable conductor cross-section — for finely stranded conductor2.5 ... 25 mm²
connectable conductor cross-section — for rigid conductor2.5 ... 35 mm²
connectable conductor cross-section — finely stranded2.5 ... 25 mm²
AWG number as coded connectable conductor cross section13 ... 2
design of the thread of the connection screwM5
signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes
switching function of the remote signaling contactsPDT contact
operating voltage of the remote signaling contacts at AC12 ... 250 V
operational current of the remote signaling contacts at AC10 mA ... 1 A
connection type of remote signaling contactM2 screw thread
connectable conductor cross-section for remote signaling contacts for rigid conductor0.14 ... 1.5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.14 ... 1.5 mm²
AWG number as coded connectable conductor cross section for remote signaling contacts28 ... 16
tightening torque for remote signaling contacts0.25 N·m
stripped length of the cable for remote signaling contacts7 mm

NEMA/UL - Data

type of surge protective device (SPD) according to UL4CA
type of distribution system according to UL3D
type of distribution systemTN-C
designation of the protective paths according to ULL-L, L-G
Measured Limiting Voltage (MLV) — between L and L2.45 kV
Measured Limiting Voltage (MLV) — between L and Ground (GND)1.34 kV
Maximum Continuous Operating Voltage (MCOV) — between L and L528 V
Maximum Continuous Operating Voltage (MCOV) — between L and Ground (GND)264 V
discharge current — between L and Ground (GND) according to UL rated value20 kA
discharge current — between L and L according to UL rated value20 kA
AWG number as coded connectable conductor cross section — according to UL12 ... 2
AWG number as coded connectable conductor cross section — for remote signaling contacts according to UL30 ... 14
operating voltage of the remote signaling contacts according to UL125 V
operational current of the remote signaling contacts at AC according to UL1 A
ambient temperature — during operation-40 ... +80 °C
ambient temperature — during storage-40 ... +80 °C
installation altitude above sea level according to UL6 562 ft
combustibility class according to UL 94V0
standards according to ULUL 1449 edition 4
