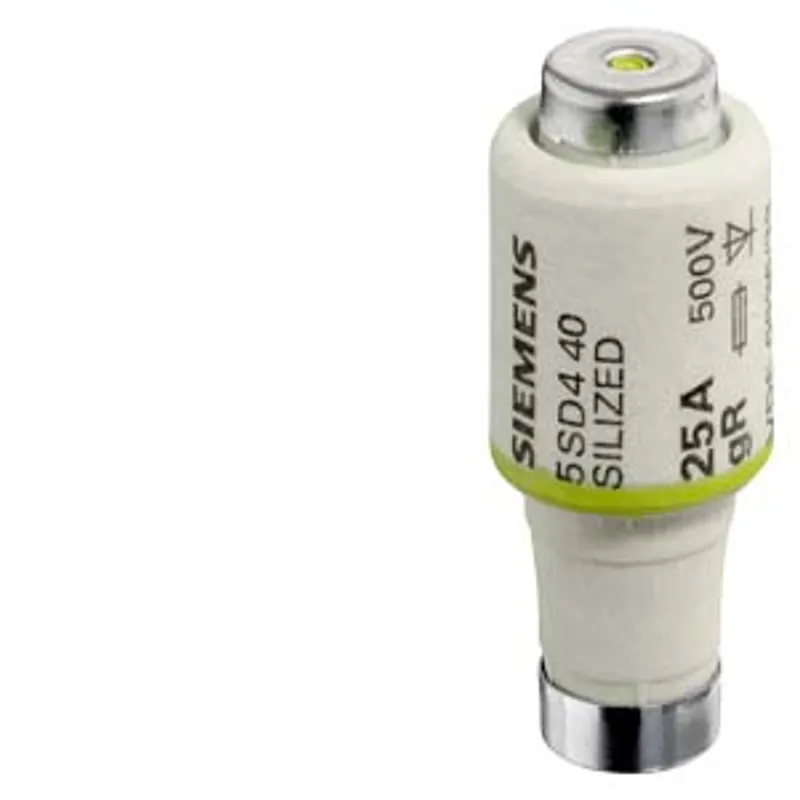

Siemens 5SD440
SILIZED fuse link 500 V for semiconductor protection Quick-acting, Size DII, E27, 25A
- MPN
- 5SD440
- Category
- SILIZED Design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 5SD440?
SILIZED fuse link 500 V for semiconductor protection Quick-acting, Size DII, E27, 25A
Specifications
Model
| product brand name | SENTRON |
| product designation | SILIZED fuse link |
| design of the product | for semiconductor protection |
| design of the fuse link | SILIZED fuse link, DIAZED design |
General technical data
| tripping characteristic class | quick-acting (FE) |
| size of fuse system according to EN 60269-1 | DII |
| operating class of the fuse link | gR |
Supply voltage
| supply voltage — at AC | 500 V |
| supply voltage — at DC | 500 V |
Protection class
| protection class IP | IP20, with connected conductors |
Breaking Capacity
| switching capacity current — at AC according to IEC 60947-2 rated value | 50 kA |
| switching capacity current — at DC according to IEC 60947-2 rated value | 8 kA |
Dissipation
| power loss [W] | 12.5 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 12.5 W |
Appearance
| color coding of the fuse link | others |
Product details
| product description | Using screw adapter or adapter sleeves |
Mechanical Design
| mounting position | Any, preferably vertical |
| Net Weight | 31 g |
Environmental conditions
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
| environmental category | Up to 45°C at 95 % rel. humidity |
| environmental category during storage | air humidity 90% at 20°C |
