SILIZED Design Parts
Compare SILIZED Design
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | size of fuse system according to EN 60269-1 | power loss [W] | power loss [W] for rated value of the current at AC in hot operating state per pole | color coding of the fuse link | Net Weight |
|---|---|---|---|---|---|
| 5SD450 | DIII | 14.8 W | 14.8 W | others | 51 g |

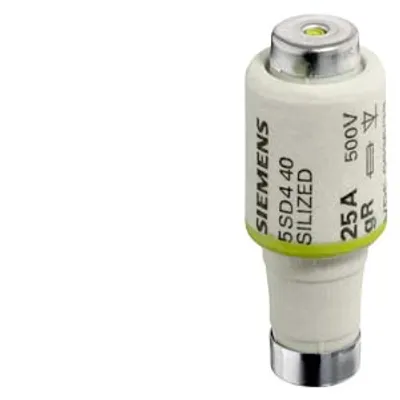

| 5SD440 | DII | 12.5 W | 12.5 W | others | 31 g |
| 5SD430 | DII | 12.3 W | 12.3 W | others | 30 g |
| 5SD420 | DII | 12.1 W | 12.1 W | others | 29 g |
| 5SE1335 | D02 | — | 16.7 W | Black | 13 g |
| 5SE1325 | D02 | — | 8.2 W | Yellow | 13 g |
| 5SD510 | DIV | 34.3 W | 34.3 W | others | 116 g |
| 5SD480 | DII | 13.4 W | 13.4 W | others | 31 g |
| 5SD470 | DIII | 28 W | 28 W | others | 55 g |
| 5SD460 | DIII | 18.5 W | 18.5 W | others | 51 g |

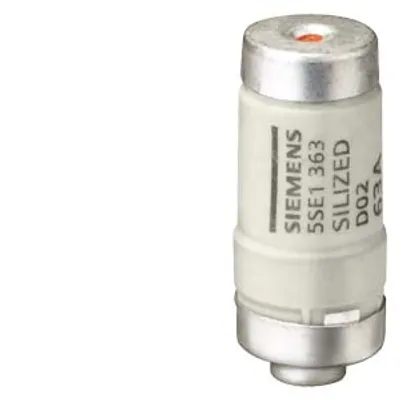

| 5SE1363 | D02 | — | 15.5 W | Copper | 15 g |
| 5SE1350 | D02 | — | 12 W | White | 14 g |
| 5SE1320 | D02 | — | 8.1 W | Blue | 12 g |
Common to all listed parts
| product designation | SILIZED fuse link |
| operating class of the fuse link | gR |
| protection class IP | IP20, with connected conductors |
| mounting position | Any, preferably vertical |
| ambient temperature during operation — maximum | 40 °C |
| environmental category | Up to 45°C at 95 % rel. humidity |
