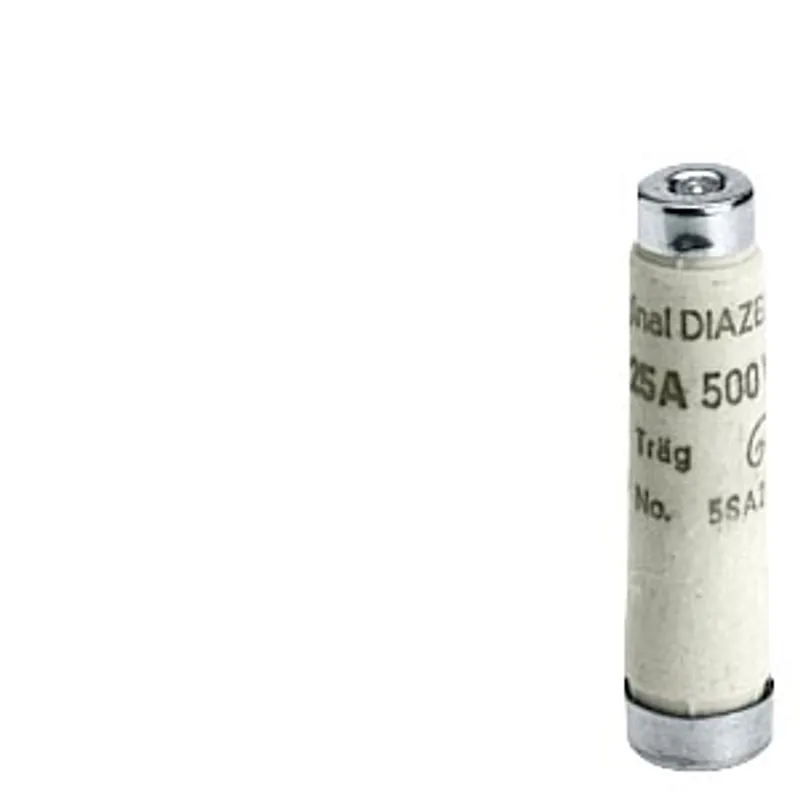

Siemens 5SA2611

DIAZED fuse link size DI ln=16 A Un=500 V AC/440 V DC operational class gG

MPN
5SA2611
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SA2611?

DIAZED fuse link size DI ln=16 A Un=500 V AC/440 V DC operational class gG

Specifications

Model

product brand nameSENTRON
product designationDIAZED fuse link
design of the productFor cable and line protection
design of the fuse linkDIAZED fuse link

General technical data

tripping characteristic classtime-lag (T)
size of fuse system according to EN 60269-1NDz
operating class of the fuse linkgG

Supply voltage

supply voltage — at AC500 V
supply voltage — at DC440 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

switching capacity current — at AC according to IEC 60947-2 rated value40 kA
switching capacity current — at DC according to IEC 60947-2 rated value1.6 kA

Dissipation

power loss [W]2.4 W
power loss [W] for rated value of the current at AC in hot operating state per pole2.4 W

Appearance

color coding of the fuse linkgray

Product details

product descriptionUsing screw adapter or adapter sleeves

Mechanical Design

mounting positionAny, preferably vertical
Net Weight13 g

Environmental conditions

ambient temperature during operation — minimum-5 °C
ambient temperature during operation — maximum40 °C
environmental categoryUp to 45°C at 95 % rel. humidity
environmental category during storageair humidity 90% at 20°C
