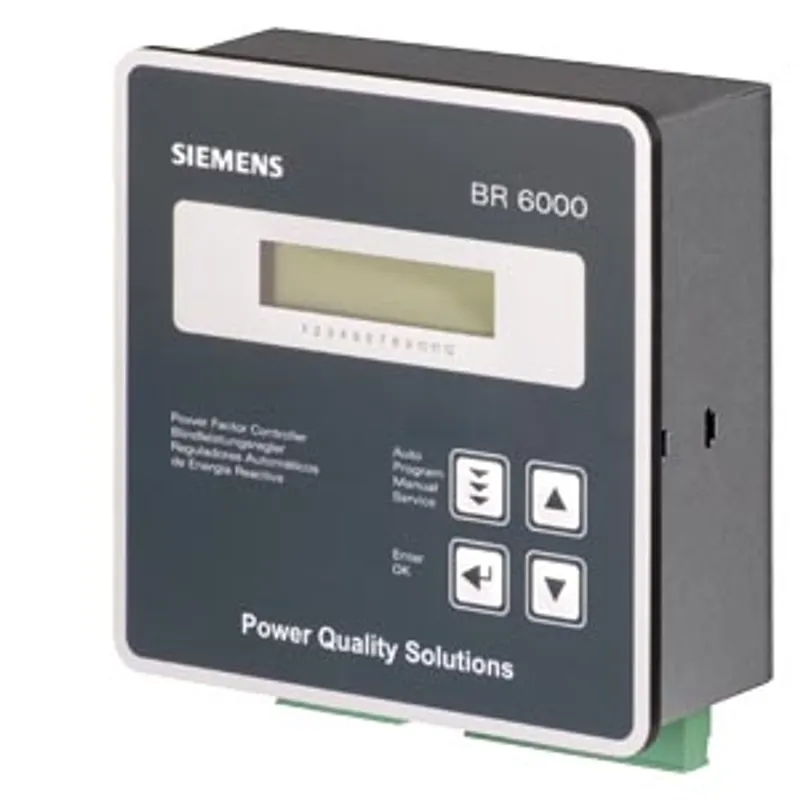

Siemens 4RB9512-1CD50

Reactive power controller BR6000-R12 12-stage 230 V

MPN
4RB9512-1CD50
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 4RB9512-1CD50?

Reactive power controller BR6000-R12 12-stage 230 V

Specifications

Model

Type of interface serial RS 485No
type of illumination LCDYes
value range for switching time and discharge time1...1200 s
parameter — reactive powerYes
parameter — cos phi actual valueYes
parameter — cos phi setpointYes
parameter — frequencyYes
parameter — harmonic THDi [%], THDu [%]Yes
parameter — measuring voltageYes
parameter — apparent powerYes
parameter — apparent currentYes
parameter — temperature [°C]Yes
parameter — temperature [°F]Yes
parameter — value [kvar] to cos phi setpointYes
parameter — active powerYes
parameter — for harmonic availableYes
parameter — for harmonicup to 19th harmonic component

Voltage

voltage measuring range at AC30...525 V AC (L-N) or (L-L)
value range of the supply voltage frequency50/60 Hz
value range of the supply voltage at AC110...230V AC -/+15%

Product function

product function — querying of stored operating period of all capacitorsYes
product function — querying of stored operating cyclesYes
product function — querying of stored maximum reactive powerYes
product function — querying of stored maximum measuring voltageYes
product function — querying of stored maximum apparent powerYes
product function — querying of stored maximum temperature [°C]Yes
product function — querying of stored maximum active powerYes
product function — querying of maximum values THDu, THDiYes
product function — alarm outputYes
product function — automatic startYes
product function — cos-phi monitoringYes
product function — suitable for dynamic PFCNo
product function — test run of the entire PFC systemYes
product function — overcompensation detectionYes
product function — overcurrent detectionYes
product function — switchover to parameter set 2 via external inputNo
product function — undercompensation detectionYes
product function — undercurrent detectionYes

Display and operation

display languages availableEnglish / German / Turkish / Tschechisch / Dutch / Polish / Portuguese / Russian / Spanish
number of relay outputs12
number of monitored phases1
number of partially freely programmable step function ratios20
height144 mm
width144 mm
depth55 mm
Net Weight996 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

4RB9512-1CD50: frequently asked questions

When can 4RB9512-1CD50 be shipped?

4RB9512-1CD50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4RB9512-1CD50 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4RB9512-1CD50 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4RB9512-1CD50, subject to availability and destination.
