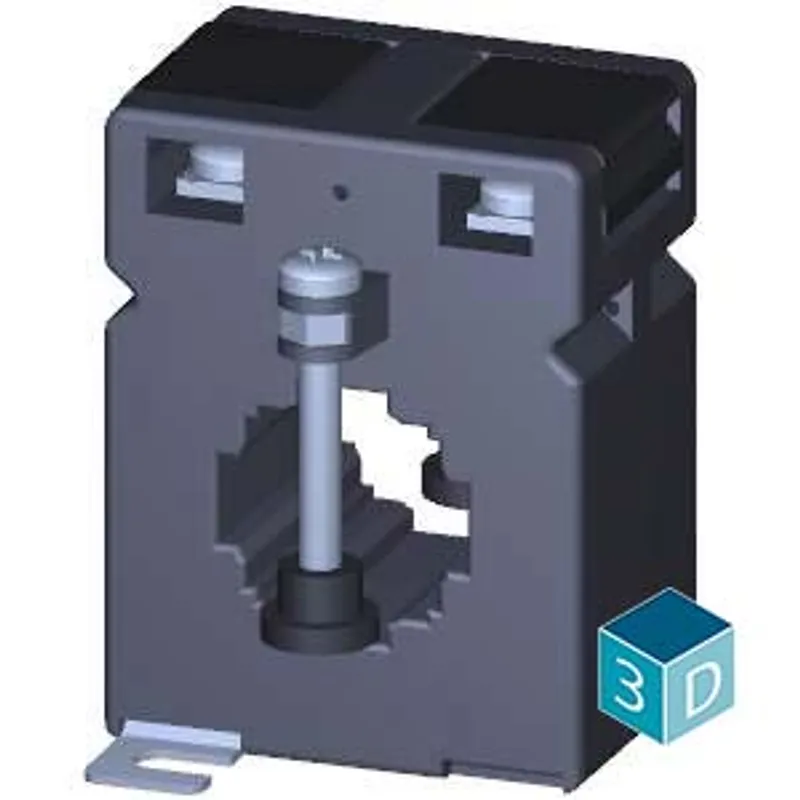

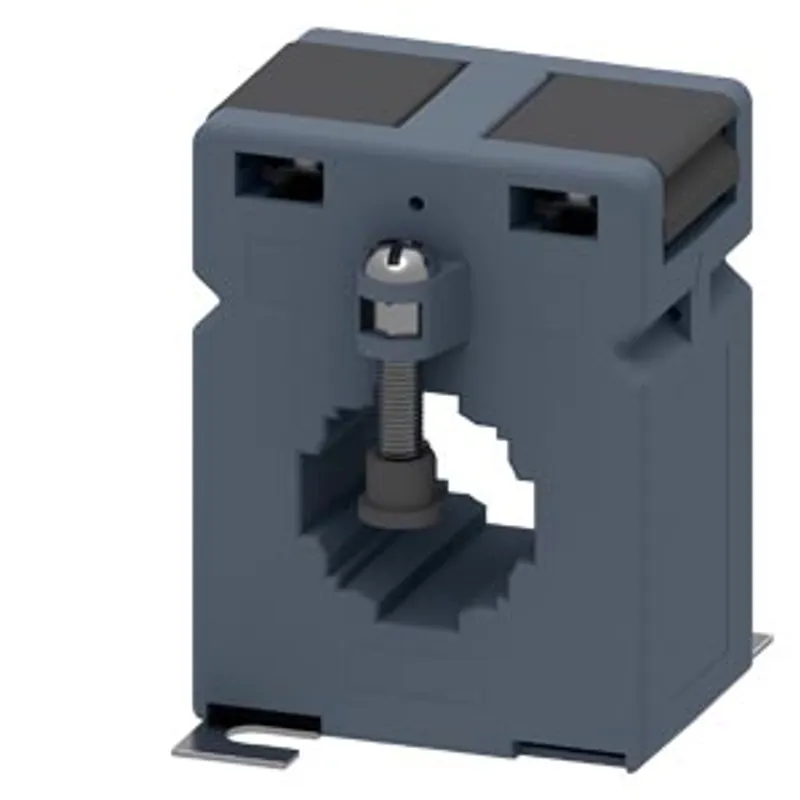

Siemens 4NC5223-0DE21
Current transformer 250/1 A, 5 VA, Cl. 0.5
- MPN
- 4NC5223-0DE21
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 4NC5223-0DE21?
current transformer 250/1 A, 5 VA, Cl. 0.5
Specifications
Model
| product brand name | SENTRON |
| product designation | Current transformer |
| design of the product | Bushing-type current transformers |
| product quality calibrated | No |
| size of the current transformer | 2 |
| operating apparent power rated value | 5 VA |
| operating voltage | 0.72 kV |
| insulation voltage rated value | 3 kV |
| designation of overcurrent limiting factor | FS 5 |
| operational current rated value maximum | 800 A |
| current — at input rated value | 250 A |
| current — at output rated value | 1 A |
| accuracy class of the current transformer | class 0.5 |
| value range of the operating frequency | 50/60 Hz |
Protection class
| protection class IP | IP20 |
| suitability for use for outside use | No |
| suitability for use for interior use | Yes |
| product feature touch protection | Yes |
Short circuit
| formula for rated short-time thermal current (Ith) for 1 s according to IEC 61869-2 | 60 x Ipr |
| formula for rated dynamic current (Idyn) according to IEC 61869-2 | 2.5 x Ith or 150 x Ipr |
Connections
| type of electrical connection at output | screw-type terminals |

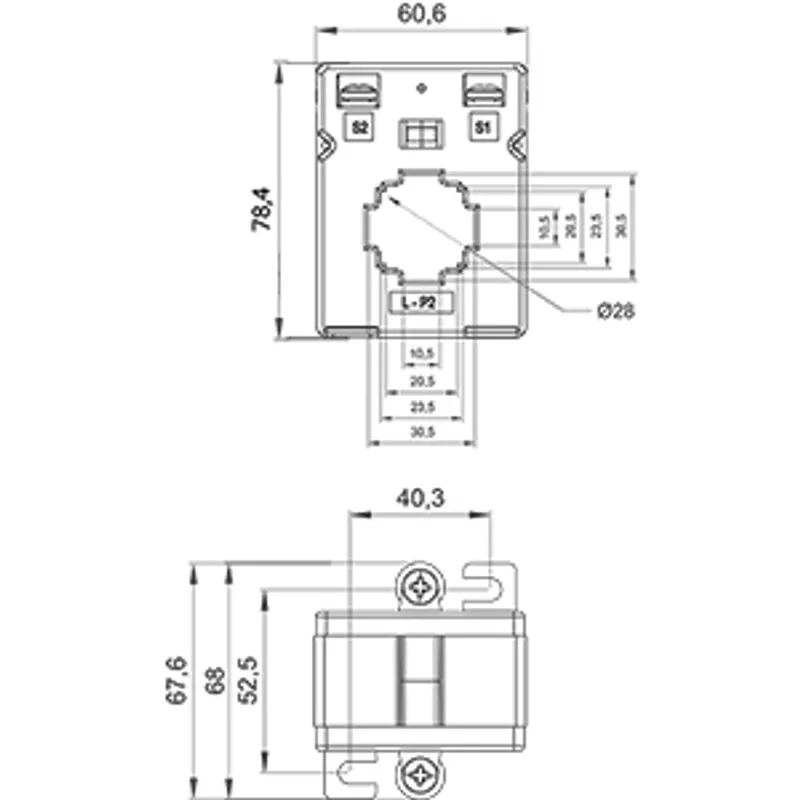

Mechanical Design
| height | 78.5 mm |
| height of the opening | 30 mm |
| width | 60 mm |
| width of the push-through bus bar — at 1 bus bar maximum | 30 mm |
| width of the push-through bus bar — in case of 2 bus bars maximum | 30 mm |
| depth | 65 mm |
| fastening method | screw fixing |
| diameter of inlet opening | 28 mm |
| outer diameter of the push-through conductor maximum | 28 mm |
| Net Weight | 375 g |
Environmental conditions
| ambient temperature during operation — minimum | -30 °C |
| ambient temperature during operation — maximum | 55 °C |
| ambient temperature during storage — minimum | -30 °C |
| ambient temperature during storage — maximum | 70 °C |
