4NC bushing-type current transformers Parts
Compare 4NC bushing-type current transformers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | size of the current transformer | operating apparent power rated value | operational current rated value maximum | current — at input rated value | Net Weight |
|---|---|---|---|---|---|
| 4NC5122-2FC21 | 1 | 2.5 V·A | 240 A | 200 A | 292.5 g |
| 4NC5122-2DE21 | 1 | 5 V·A | 1 200 A | 200 A | 303.5 g |
| 4NC5121-2FA21 | 1 | 1 VA | 600 A | 150 A | 297 g |
| 4NC5121-2DC21 | 1 | 2.5 V·A | 500 A | 150 A | 335 g |

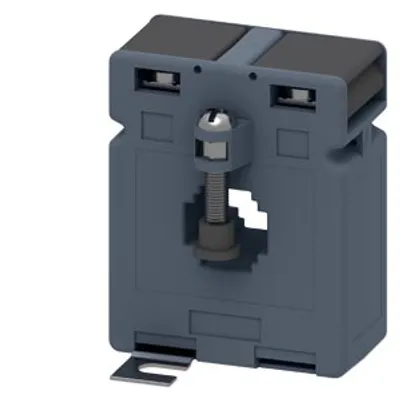

| 4NC5121-2CC21 | 1 | 2.5 VA | 400 A | 150 A | 304 g |
| 4NC5121-0DC21 | 1 | 2.5 V·A | 360 A | 150 A | 338 g |
| 4NC5121-0CC21 | 1 | 2.5 V·A | 300 A | 150 A | 332 g |
| 4NC5225-0CE21 | 2 | 5 VA | 480 A | 400 A | 336 g |

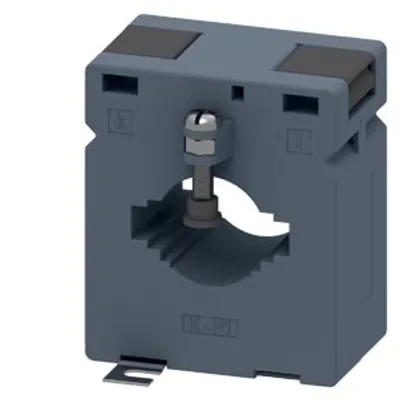

| 4NC5326-2DE21 | 3 | 5 VA | 600 A | 500 A | 600 g |
| 4NC5326-2CE21 | 3 | 5 VA | 600 A | 500 A | 610 g |
| 4NC5326-0DE21 | 3 | 5 VA | 600 A | 500 A | 607 g |
| 4NC5326-0CE21 | 3 | 5 V·A | 600 A | 500 A | 617 g |
| 4NC5223-2CE21 | 2 | 5 V·A | 1 000 A | 250 A | 326.5 g |

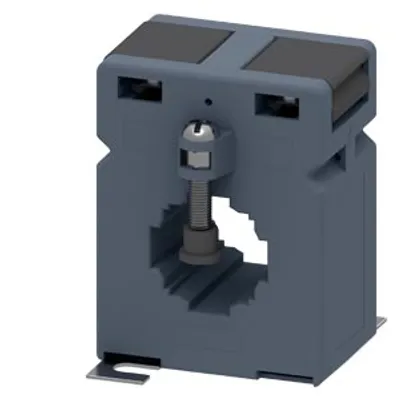

| 4NC5223-0DE21 | 2 | 5 VA | 800 A | 250 A | 375 g |
| 4NC5115-0CC21 | 1 | 2.5 VA | 240 A | 75 A | 374 g |
| 4NC5113-2CB21 | 1 | 1.2 V·A | 300 A | 60 A | 410 g |
| 4NC5113-0CB21 | 1 | 1.2 VA | 240 A | 60 A | 370 g |
| 4NC5112-2CB21 | 1 | 1.2 VA | 120 A | 50 A | 409 g |
| 4NC5112-0CB21 | 1 | 1.2 V·A | 72 A | 50 A | 416 g |
Common to all listed parts
| product designation | Current transformer |
| design of the product | Bushing-type current transformers |
| product quality calibrated | No |
| operating voltage | 0.72 kV |
| insulation voltage rated value | 3 kV |
| designation of overcurrent limiting factor | FS 5 |
| value range of the operating frequency | 50/60 Hz |
| protection class IP | IP20 |
