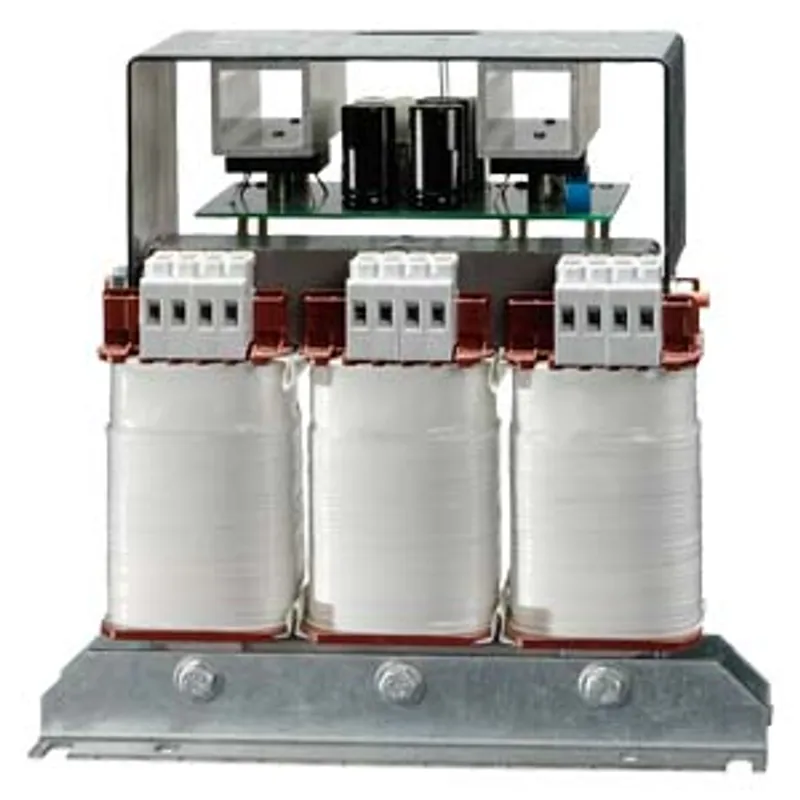

Siemens 4AV3502-2FB00-0A
Power supply; phases: 3; Pn(kW): 1.08; Upri(V): 575(600)-500-460(480)- 400(415)-230(240)-200; Usec(V DC): 24
- MPN
- 4AV3502-2FB00-0A
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 4AV3502-2FB00-0A?
power supply; phases: 3; Pn(kW): 1.08; Upri(V): 575(600)-500-460(480)- 400(415)-230(240)-200; Usec(V DC): 24; Isec(A DC): 45/54 (60/40 CEL); F(Hz): 50...60; vector group/shielding winding: YY0 /0; protection class: I; temperature rise/insulation class: 60 /B; W(%): 4.2; IP00; connection: screw connection; mounting: screws; EN 61558-2-6, EN 61131-2 >safety transformer<
Specifications
General technical data
| product designation | 4AV3502-2FB00-0A |
| product brand name | SIDAC |
| vector group | Yy0 |
| certificate of suitability | CE |
| product function — temperature monitoring | No |
| product function — insulation monitoring | No |
| product function — short-circuit and overload proof | No |
| product function — varistor protective wiring | Yes |
| operating resource protection class | I |
| number of shielding windings | 0 |
Inputs
| phase number of the inputs | 3 |
| type of current of the inputs | AC |
| input voltage — _1 rated value | 575 V |
| input voltage — _2 rated value | 500 V |
| input voltage — _3 rated value | 460 V |
| input voltage — _4 rated value | 400 V |
| input voltage — _5 rated value | 230 V |
| input voltage — _6 rated value | 200 V |
| electrical input frequency — minimum | 50 Hz |
| electrical input frequency — maximum | 60 Hz |
| input voltage — minimum | 180 V |
| input voltage — maximum | 609.5 V |
| input current — _1 rated value | 1.4 A |
| input current — _2 rated value | 1.6 A |
| input current — _3 rated value | 1.7 A |
| input current — _4 rated value | 2 A |
| input current — _5 rated value | 3.4 A |
| input current — _6 rated value | 3.9 A |
| type of electrical connection at input for main current circuit | screw-type terminals |
Outputs
| type of current — _1 at output | DC |
| output voltage — _1 rated value | 24 V |
| output voltage of the measurement signal at analog output at DC maximum | 28.8 V |
| output voltage of the measurement signal at analog output at DC minimum | 20.4 V |
| output current — _1 rated value | 45 A |
| type of electrical connection at output for main current circuit | screw-type terminals |
| relative residual ripple — of the output voltage 1 for main current circuit maximum | 5 % |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 60 °C |
| protection class IP | IP00 |
Mechanical data
| fastening method | screws |
| construction form of the iron core | 3UI 114/62 |
| width | 266 mm |
| height | 260 mm |
| depth | 190 mm |
