SIRIUS non-stabilized power supplies Parts

Showing 1–19 of 19 parts
Siemens 4AV3000-2EB00-0A – Power supply; phases: 3; Pn(kW): 0.24; Upri(V): 400+/-20; Usec(V DC): 24; Isec(A DC): 10/12 (60/40 CEL)
Siemens
4AV3000-2EB00-0A

Power supply; phases: 3; Pn(kW): 0.24; Upri(V): 400+/-20

Siemens 4AV3200-2EB00-0A – Power supply; phases: 3; Pn(kW): 0.48; Upri(V): 400+/-20; Usec(V DC): 24; Isec(A DC): 20/24 (60/40 CEL)
Siemens
4AV3200-2EB00-0A

Power supply; phases: 3; Pn(kW): 0.48; Upri(V): 400+/-20

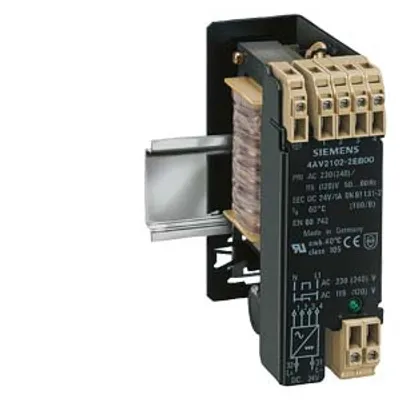

Siemens 4AV2102-2EB00-0A – Power supply; phases: 1; Pn(kW): 0.024; Upri(V): 230-115; Usec(V DC): 24; Isec(A DC): 1/1.2 (60/40 CEL)
Siemens
4AV2102-2EB00-0A

Power supply; phases: 1; Pn(kW): 0.024; Upri(V): 230-115

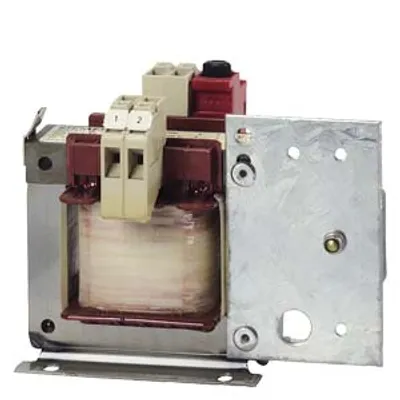

Siemens 4AV9806-5CB00-2N – Power supply (unfiltered); phases: 1; Pn(kW): 0.08; Upri(V): 230; Usec(V DC): 24; Isec(A DC): 3.3
Siemens
4AV9806-5CB00-2N

Power supply (unfiltered); phases: 1; Pn(kW): 0.08

Siemens 4AV3400-2FB00-0A – Power supply; phases: 3; Pn(kW): 0.96; Upri(V): 400+/-20; Usec(V DC): 24; Isec(A DC): 40/48 (60/40 CEL)
Siemens
4AV3400-2FB00-0A

Power supply; phases: 3; Pn(kW): 0.96; Upri(V): 400+/-20

Compare SIRIUS non-stabilized power supplies

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNproduct designationoutput current — _1 rated valueconstruction form of the iron coredepthinput current — _1 rated value
4AV3101-2EB00-0A4AV3101-2EB00-0A15 A3UI 75/40115 mm—

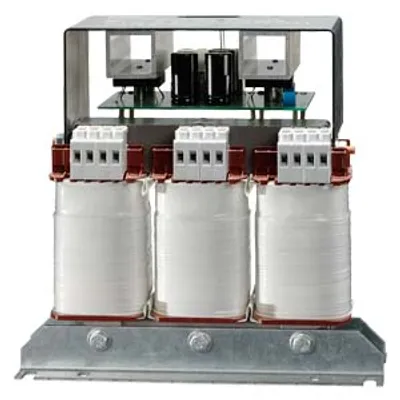

4AV3100-2EB00-0A4AV3100-2EB00-0A15 A3UI 75/40115 mm—

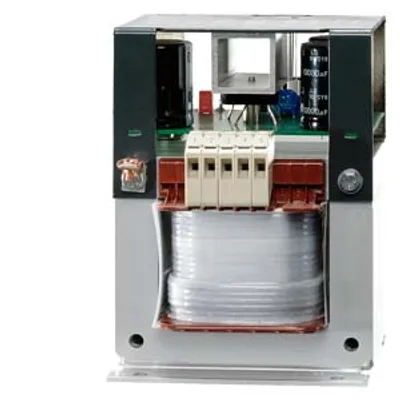

4AV2401-2EB00-0A4AV2401-2EB00-0A10 AEI 120/72128 mm1 A
4AV4103-2EB00-0A4AV4103-2EB00-0A3 AEI 84/4288 mm0.32 A
4AV3000-2EB00-0A4AV3000-2EB00-0A10 A3UI 75/25115 mm—
4AV2601-2EB00-0A4AV2601-2EB00-0A15 AEI 150/48140 mm1.5 A
4AV2600-2EB00-0A4AV2600-2EB00-0A15 AEI 150/48140 mm1.55 A

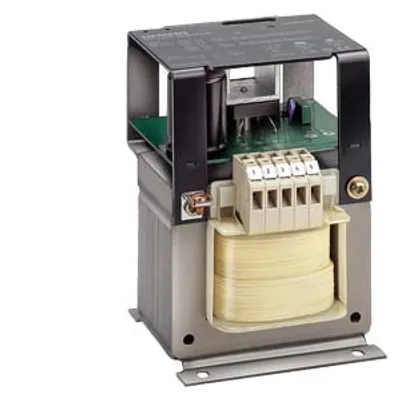

4AV2201-2EB00-0A4AV2201-2EB00-0A5 AEI 105/60113 mm0.56 A

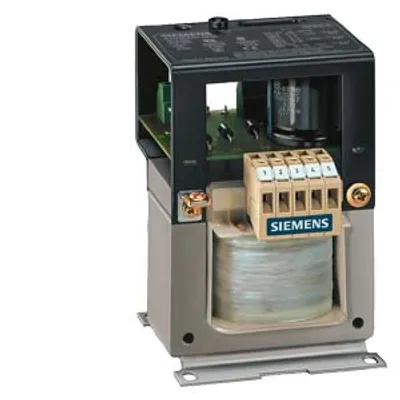

4AV2001-2EB00-0A4AV2001-2EB00-0A2.5 AEI 84/42100 mm0.3 A

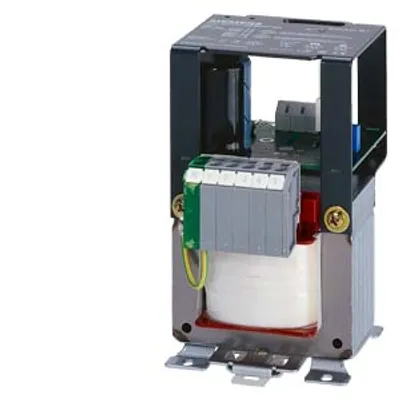

4AV2000-2EB00-0A4AV2000-2EB00-0A2.5 AEI 84/42100 mm0.31 A
4AV3200-2EB00-0A4AV3200-2EB00-0A20 A3UI 90/30115 mm—
4AV3102-2EB00-0A4AV3102-2EB00-0A13.5 A3UI 75/40115 mm—
4AV2400-2EB00-1A4AV2400-2EB00-1A10 AEI 120/72128 mm0.85 A
4AV2102-2EB00-0A4AV2102-2EB00-0A1 AEI 66-88/18111 mm0.2 A
4AV9806-5CB00-2N4AV9806-5CB00-2N3.3 AEI 84/4293 mm0.6 A
4AV3402-2FB00-0A4AV3402-2FB00-0A36 A3UI 114/38165 mm1.1 A

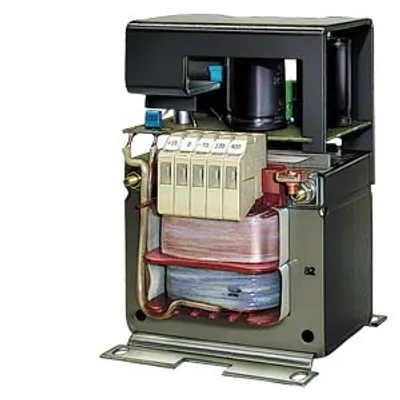

4AV4110-2EB00-0A4AV4110-2EB00-0A10 AEI 120/52105 mm0.85 A
4AV3502-2FB00-0A4AV3502-2FB00-0A45 A3UI 114/62190 mm1.4 A
4AV3400-2FB00-0A4AV3400-2FB00-0A40 A3UI 114/38165 mm1.7 A

Common to all listed parts

product function — temperature monitoringNo
product function — insulation monitoringNo
operating resource protection classI
number of shielding windings0
type of current of the inputsAC
electrical input frequency — minimum50 Hz
electrical input frequency — maximum60 Hz
type of current — _1 at outputDC
