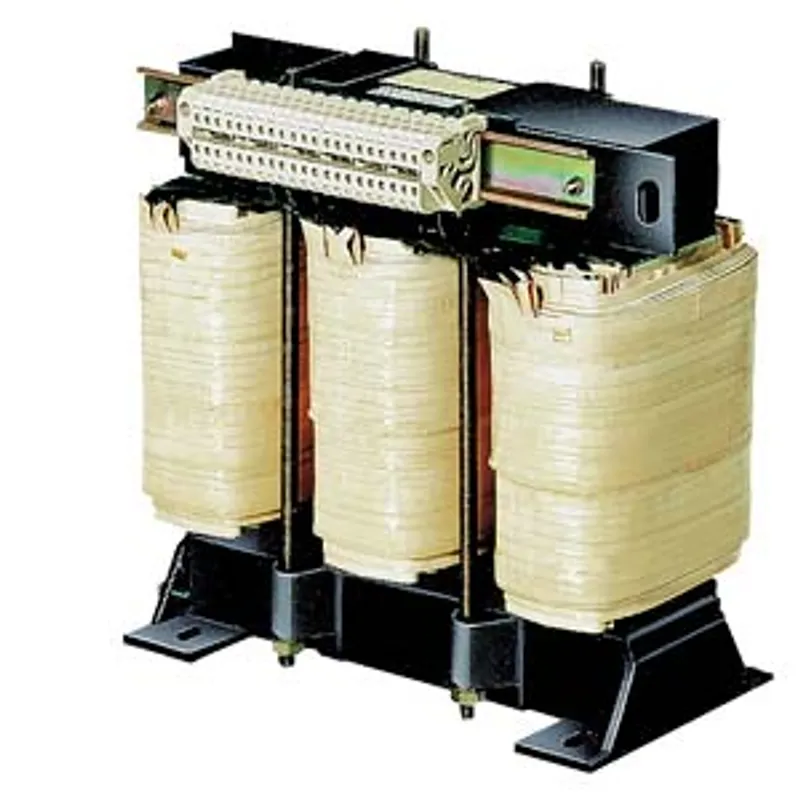

Siemens 4AU3912-8CC40-0HA0
Transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 12.5 /43.7; Upri(V): Y500-440-380+/-20/D289- 254-220+/-11
- MPN
- 4AU3912-8CC40-0HA0
- Category
- Transformers
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 4AU3912-8CC40-0HA0?
transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 12.5 /43.7; Upri(V): Y500-440-380+/-20/D289- 254-220+/-11; Usec(V): Y 400 / D 230; Isec(A): 18-31.3; F(Hz): 50...60; vector group/shielding winding: IIIIII0 /0; temperature rise/insulation class: 55 /H; IP00; connection: screw connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<
Specifications
General technical data
| product designation | transformer SITAS |
| product brand name | SIDAC |
| operating apparent power rated value | 12 500 V·A |
| efficiency | 0.95 |
| connection method for transformers | IIIiii0 |
| certificate of suitability | CE / cRUus |
| product function — temperature monitoring | No |
| product function — insulation monitoring | No |
| product function — short-circuit and overload proof | No |
| number of shielding windings | 0 |
| short-term vector power | 49 000 V·A |
| relative short-circuit voltage | 3.1 % |
Inputs
| phase number of the inputs | 3 |
| input voltage — _1 rated value | 520 V |
| input voltage — _2 rated value | 500 V |
| input voltage — _3 rated value | 480 V |
| input voltage — _4 rated value | 460 V |
| input voltage — _5 rated value | 440 V |
| input voltage — _6 rated value | 420 V |
| input voltage — _7 rated value | 400 V |
| input voltage — _8 rated value | 380 V |
| input voltage — _9 rated value | 360 V |
| input voltage — _10 rated value | 300 V |
| input voltage — _11 rated value | 289 V |
| input voltage — _12 rated value | 277 V |
| input voltage — _13 rated value | 266 V |
| input voltage — _14 rated value | 254 V |
| input voltage — _15 rated value | 240 V |
| input voltage — _16 rated value | 230 V |
| electrical input frequency — minimum | 50 Hz |
| electrical input frequency — maximum | 60 Hz |
Outputs
| phase number of the outputs | 3 |
| output voltage — _1 rated value | 400 V |
| output voltage — _2 rated value | 230 V |
| electrical output frequency — maximum | 60 Hz |
| electrical output frequency — minimum | 50 Hz |
Ambient conditions
| thermal class according to IEC 60085 | H |
| ambient temperature rated value | 55 °C |
| protection class IP | IP00 |
Mechanical data
| type of electrical connection — at output for main current circuit | screw-type terminals |
| type of electrical connection — at input for main current circuit | screw-type terminals |
| fastening method | screws |
| construction form of the iron core | 3UI 210/70 |
| width | 0.41 m |
| height | 0.37 m |
| depth | 0.262 m |
