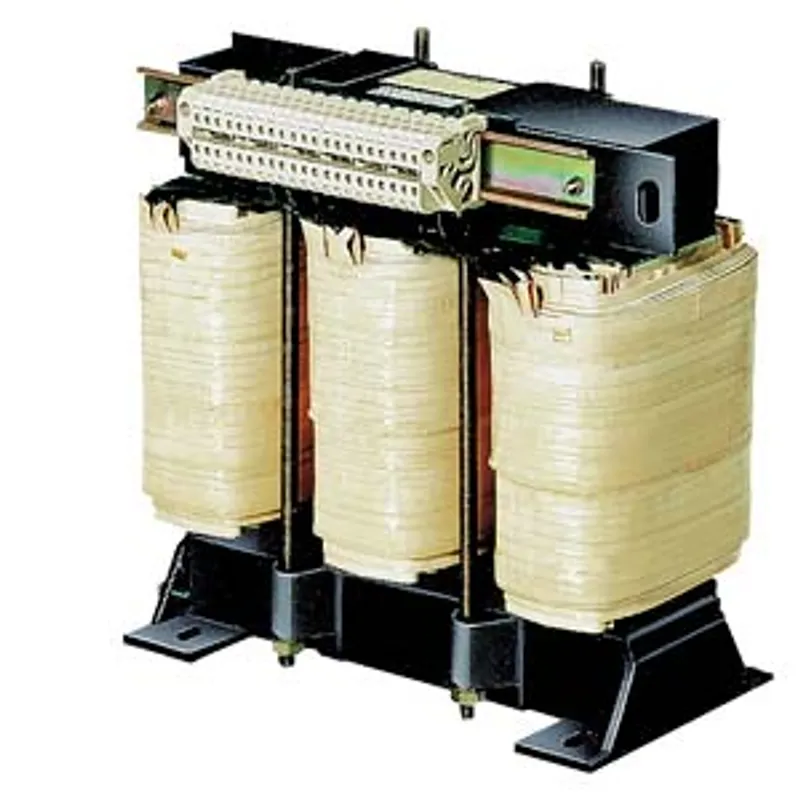

Siemens 4AU3612-8BC40-0HA0

Transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 8 /29.6; Upri(V): Y500-400/D289-230; Usec(V): Y 400 / D 230

MPN
4AU3612-8BC40-0HA0
Category
Transformers
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 4AU3612-8BC40-0HA0?

transformer SITAS; phases: 3; Pn/Pn(S6)(kVA): 8 /29.6; Upri(V): Y500-400/D289-230; Usec(V): Y 400 / D 230; Isec(A): 11.5-20.0; F(Hz): 50...60; vector group/shielding winding: IIIIII0 /0; temperature rise/insulation class: 55 /H; IP00; connection: screw connection; mounting: screws; EN 61558-2-1, -2-2, -2-4 >UL/CSA-recognized control transformer isolation transformer<

Specifications

General technical data

product designationtransformer SITAS
product brand nameSIDAC
operating apparent power rated value8 000 VA
efficiency0.94
connection method for transformersIIIiii0
certificate of suitabilityCE / cRUus
product function — temperature monitoringNo
product function — insulation monitoringNo
product function — short-circuit and overload proofNo
number of shielding windings0
short-term vector power32 000 VA
relative short-circuit voltage4.22 %

Inputs

phase number of the inputs3
input voltage — _1 rated value500 V
input voltage — _2 rated value400 V
input voltage — _3 rated value289 V
input voltage — _4 rated value230 V
electrical input frequency — minimum50 Hz
electrical input frequency — maximum60 Hz

Outputs

phase number of the outputs3
output voltage — _1 rated value400 V
output voltage — _2 rated value230 V
electrical output frequency — maximum60 Hz
electrical output frequency — minimum50 Hz

Ambient conditions

thermal class according to IEC 60085H
ambient temperature rated value55 °C
protection class IPIP00

Mechanical data

type of electrical connection — at output for main current circuitscrew-type terminals
type of electrical connection — at input for main current circuitscrew-type terminals
fastening methodscrews
construction form of the iron core3UI 180/75
width0.36 m
height0.32 m
depth0.268 m

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

4AU3612-8BC40-0HA0: frequently asked questions

When can 4AU3612-8BC40-0HA0 be shipped?

4AU3612-8BC40-0HA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4AU3612-8BC40-0HA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4AU3612-8BC40-0HA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4AU3612-8BC40-0HA0, subject to availability and destination.
