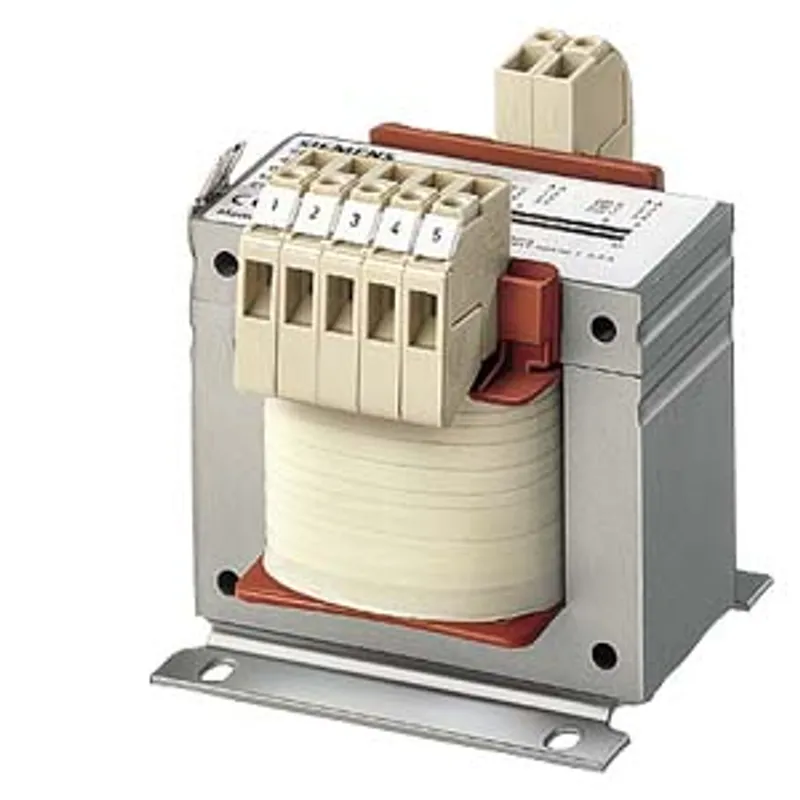

Siemens 4AM2342-4TN00-0EA1
Safety transformer; phases: 1; Pn(kVA): 0.025; Upri(V): 230+/-5%; Usec(V): 24; Isec(A): 1.04; F(Hz): 50...60
- MPN
- 4AM2342-4TN00-0EA1
- Category
- Transformers
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 4AM2342-4TN00-0EA1?
safety transformer; phases: 1; Pn(kVA): 0.025; Upri(V): 230+/-5%; Usec(V): 24; Isec(A): 1.04; F(Hz): 50...60; vector group/shielding winding: II0 /0; temperature rise/insulation class: 40 /B; IP00; connection: cage-clamp; mounting: screws; EN 61558-2-6 >UL/CSA-recognized safety transformer<
Specifications
General technical data
| product designation | transformer SITAS |
| product brand name | SIDAC |
| operating apparent power rated value | 25 V·A |
| efficiency | 0.74 |
| connection method for transformers | Ii0 |
| certificate of suitability | CE / cRUus |
| product function — temperature monitoring | No |
| product function — insulation monitoring | No |
| product function — short-circuit and overload proof | No |
| number of shielding windings | 0 |
| relative short-circuit voltage | 17.6 % |
Inputs
| phase number of the inputs | 1 |
| input voltage — _1 rated value | 242 V |
| input voltage — _2 rated value | 230 V |
| input voltage — _3 rated value | 218 V |
| electrical input frequency — minimum | 50 Hz |
| electrical input frequency — maximum | 60 Hz |
Outputs
| phase number of the outputs | 1 |
| output voltage — _1 rated value | 24 V |
| electrical output frequency — maximum | 60 Hz |
| electrical output frequency — minimum | 50 Hz |
Ambient conditions
| thermal class according to IEC 60085 | B |
| ambient temperature rated value | 40 °C |
| protection class IP | IP00 |
Mechanical data
| type of electrical connection — at output for main current circuit | Cage-Clamp terminals |
| type of electrical connection — at input for main current circuit | Cage Clamp terminals |
| fastening method | screws |
| construction form of the iron core | EI 60/20 |
| width | 0.062 m |
| height | 0.079 m |
| depth | 0.078 m |
