Home / Siemens / SENTRON 5TT7 GSM Alarm Modules / Siemens 4AC2402

Siemens

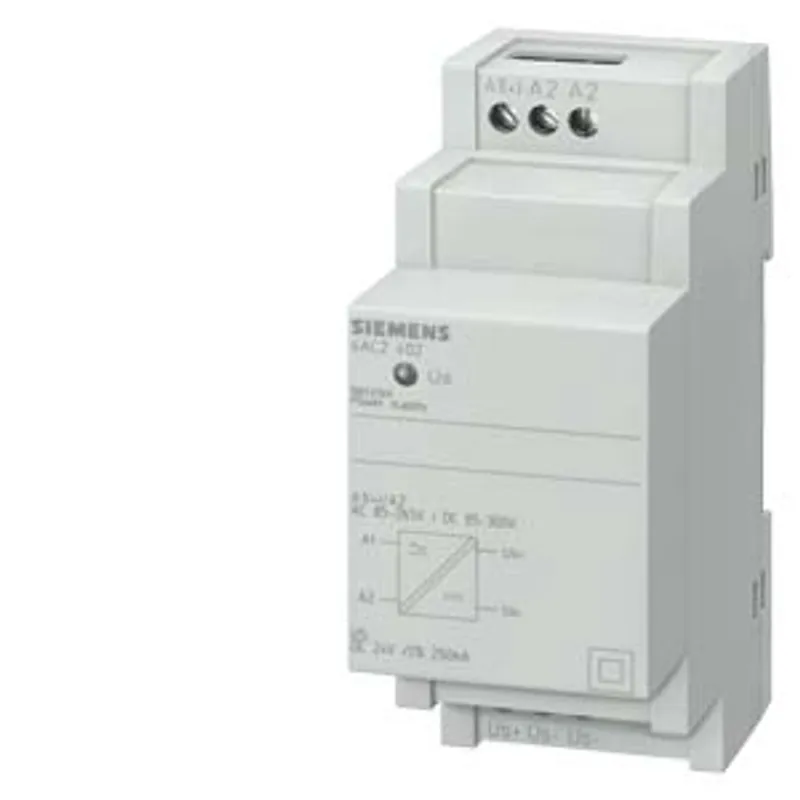

Siemens 4AC2402

Power supply unit for permanent load Primary 85..265 V AC

MPN: 4AC2402
Category: SENTRON 5TT7 GSM Alarm Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 4AC2402?

Power supply unit for permanent load Primary 85..265 V AC, 85..300 V DC Secondary 24 V DC +-5% Overall width 2MW Short-circuit and overload protection

Specifications

Model

product brand name	SENTRON
product designation	Power supply unit
design of the transformer	Power transformer

General technical data

supplied active power maximum

8.4 W

Voltage

input voltage	265 V
output voltage — _1 rated value	24 V
output voltage — _2 rated value	0 V
output voltage — _3 rated value	0 V

Suitability

suitability for integration surface-mounted installation	No
suitability for integration flush mounting	No

Product details

product component switch

Product function

product function thermal protection

Yes

Inputs Outputs

property of the output short-circuit proof

Yes

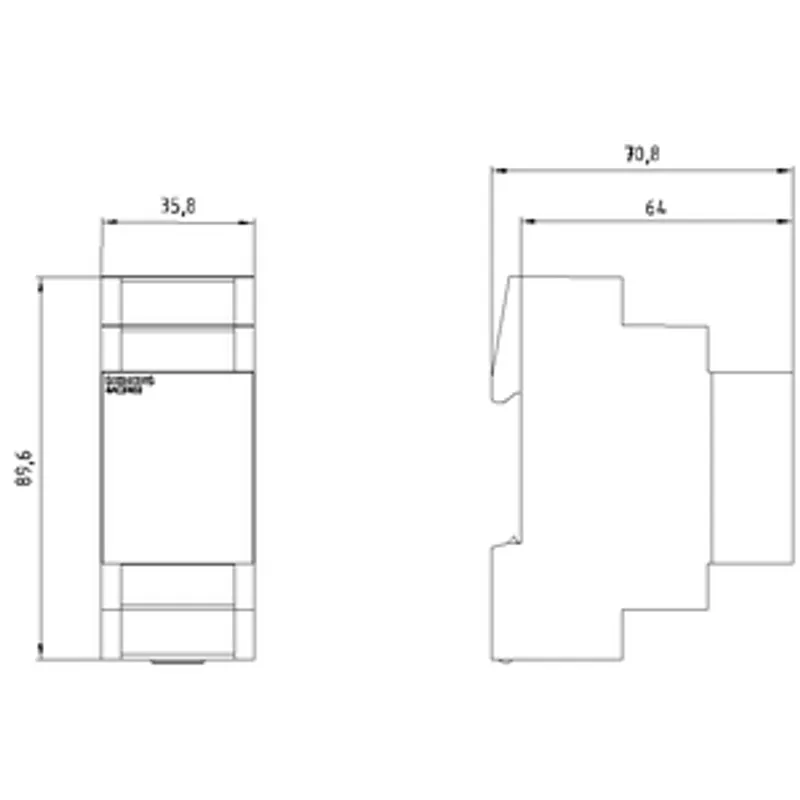

Mechanical Design

height	90 mm
width	36 mm
depth	64 mm
length	90 mm
number of modular width units	2
fastening method side-by-side mounting	Yes
Net Weight	95 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 4AC2402PDF
