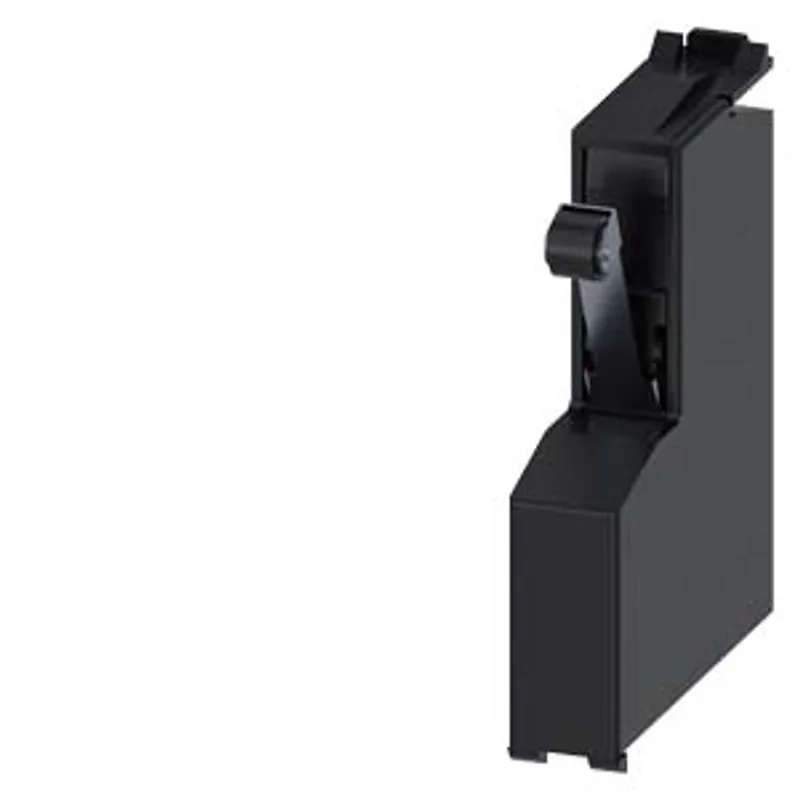

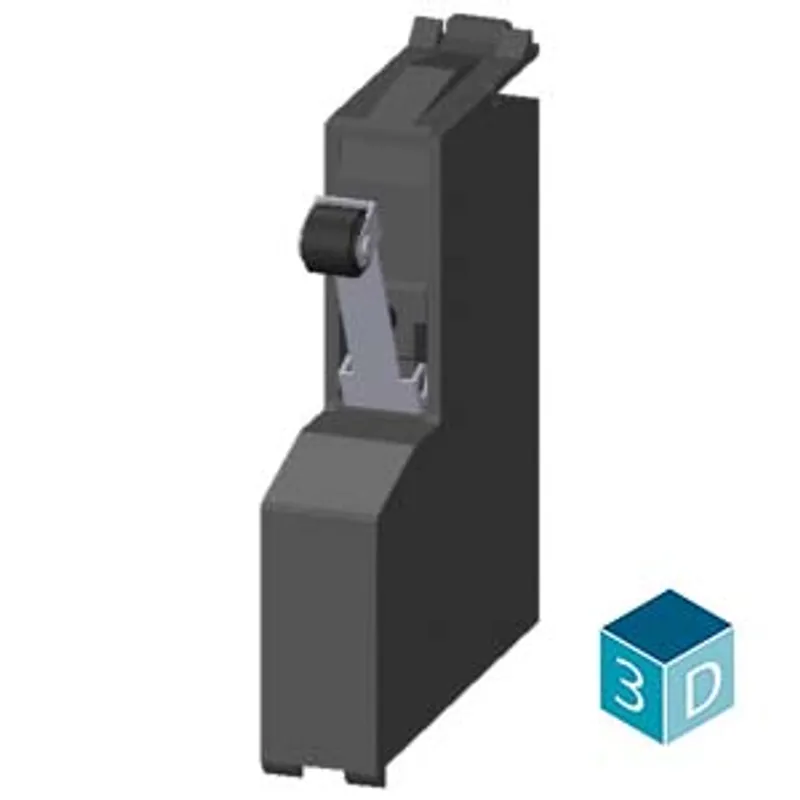

Siemens 3VA9987-0KB00

Position signaling switch accessory for: plug-in and withdrawable units

MPN: 3VA9987-0KB00
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9987-0KB00?

position signaling switch accessory for: plug-in and withdrawable units

Specifications

Model

product brand name	SENTRON
product designation	Position signaling switch
accessories	Position signaling switch

General technical data

degree of pollution	3
overvoltage category	III

Voltage

surge voltage resistance	4 kV
operating voltage / at AC / at 50 Hz / rated value / minimum	240 V
operating voltage / at DC / rated value / minimum	250 V

Current

thermal current	6 A
operational current — at AC-12 / at 12 V	6 A
operational current — at AC-12 / at 24 V	6 A
operational current — at AC-12 / at 48 V	6 A
operational current — at AC-12 / at 125 V	6 A
operational current — at AC-12 / at 220/240 V	6 A
operational current — at DC-12 / at 12 V	6 A
operational current — at DC-12 / at 24 V	3 A
operational current — at DC-12 / at 48 V	1 A
operational current — at DC-12 / at 110 V	0.5 A
operational current — at DC-12 / at 250 V	0.25 A

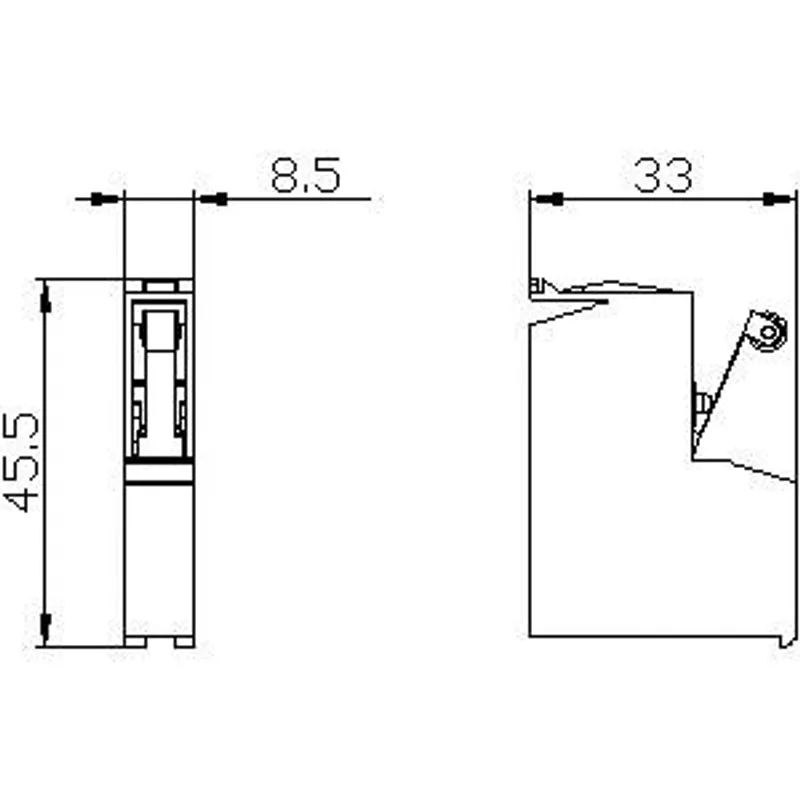

Mechanical Design

height	43 mm
width	8.5 mm
depth	33 mm
Net Weight	28 g
tightening torque / with screw-type terminals / minimum	0.4 N·m
tightening torque / with screw-type terminals / maximum	0.5 N·m

Connections according IEC

stripped length	15 mm
AWG number / as coded connectable conductor cross section / for auxiliary contacts — minimum	20
AWG number / as coded connectable conductor cross section / for auxiliary contacts — maximum	16

Connetctions according UL

stripped length [in]	0.6 in
tightening torque [lbf·in] / with screw-type terminals / minimum	3.5 lbf·in
tightening torque [lbf·in] / with screw-type terminals / maximum	4.4 lbf·in
ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA9987-0KB00PDF
