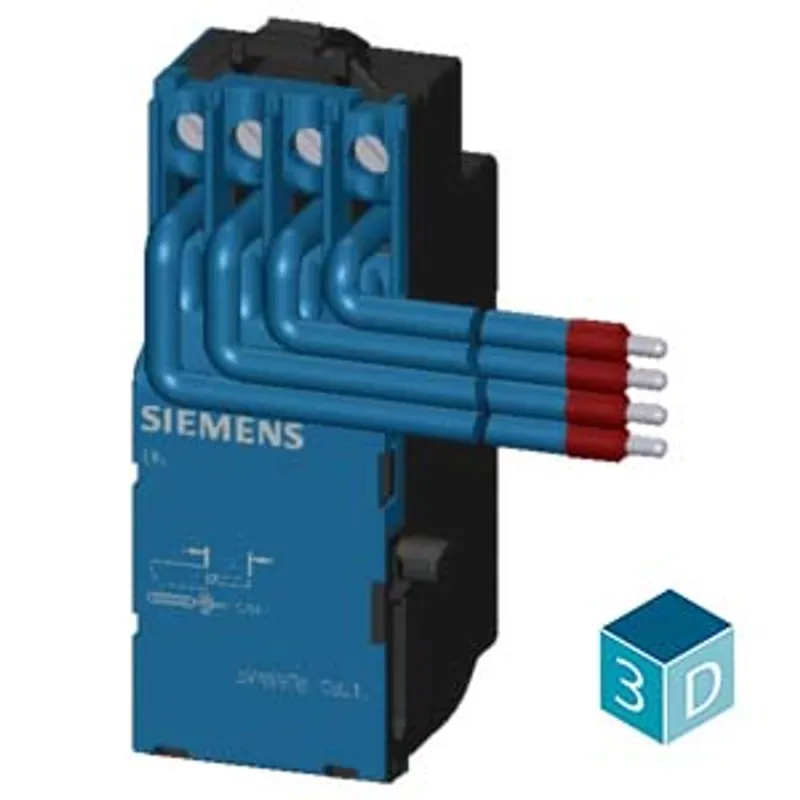

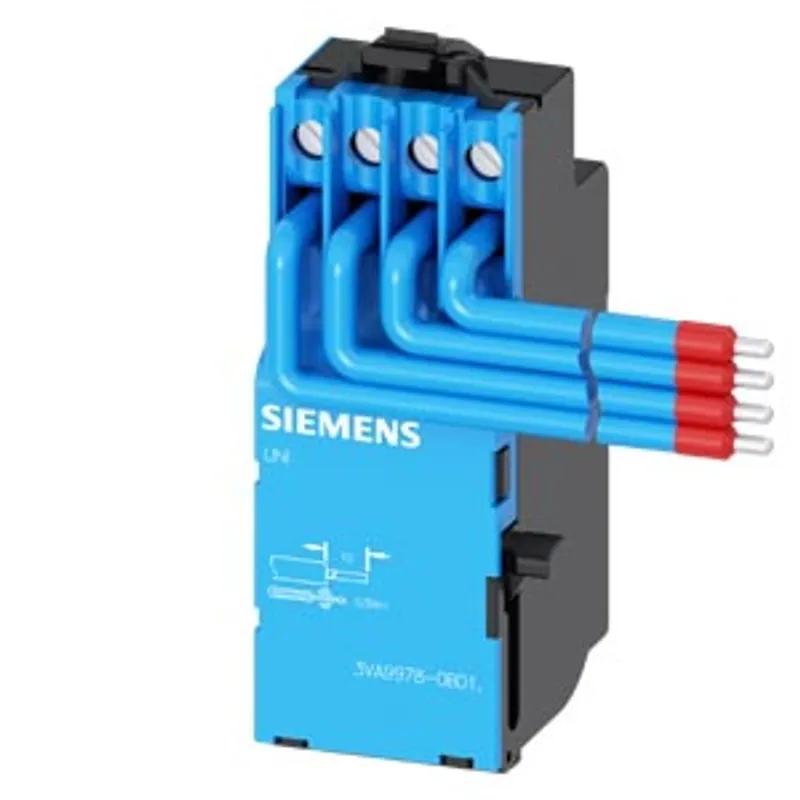

Siemens 3VA9978-0BD13
Universal release 48 V DC accessory for: 3VA4/5/6
- MPN
- 3VA9978-0BD13
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9978-0BD13?
universal release 48 V DC accessory for: 3VA4/5/6
Specifications
Model
| product brand name | SENTRON |
| product designation | Auxiliary release |
| accessories | Auxiliary release |
General technical data
| degree of pollution | 3 |
| overvoltage category | III |
| consumed active power / at DC / maximum | 20 W |
Voltage
| surge voltage resistance | 4 kV |

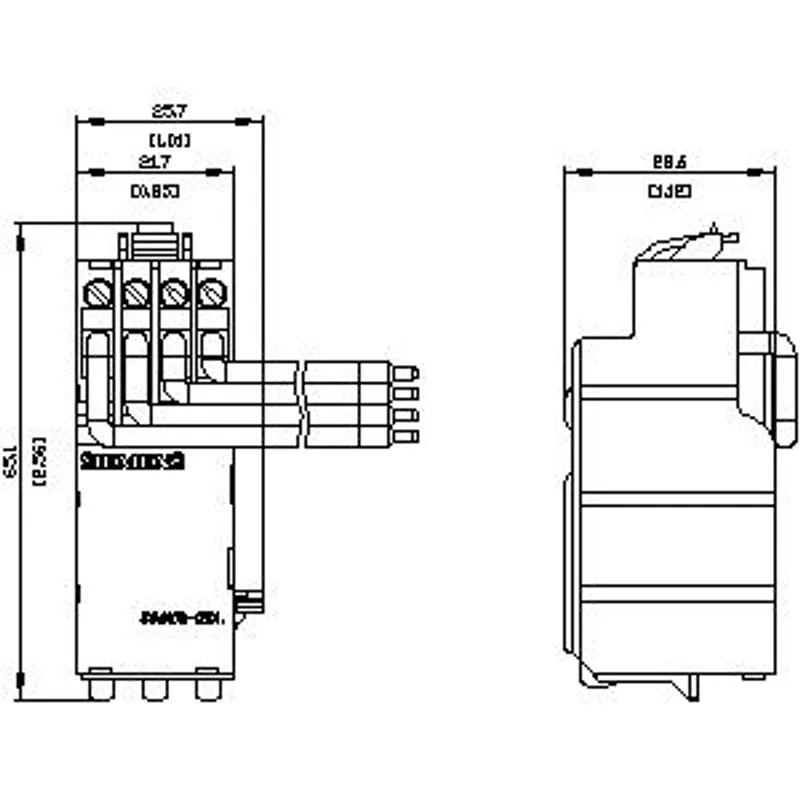

Mechanical Design
| height | 65 mm |
| width | 25.7 mm |
| number of slots | 3 |
| depth | 28.8 mm |
| net weight | 91 g |
| Net Weight | 140 g |
| tightening torque / with screw-type terminals / minimum | 0.4 N·m |
| tightening torque / with screw-type terminals / maximum | 0.5 N·m |
Connections according IEC
| type of electrical connection / for auxiliary circuit | AWG18 / 750 mm |
| stripped length | 10 mm |
Connetctions according UL
| stripped length [in] | 0.4 in |
| tightening torque [lbf·in] / with screw-type terminals / minimum | 3.5 lbf·in |
| tightening torque [lbf·in] / with screw-type terminals / maximum | 4.4 lbf·in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9978-0BD13: frequently asked questions
When can 3VA9978-0BD13 be shipped?
3VA9978-0BD13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9978-0BD13 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9978-0BD13 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9978-0BD13, subject to availability and destination.
