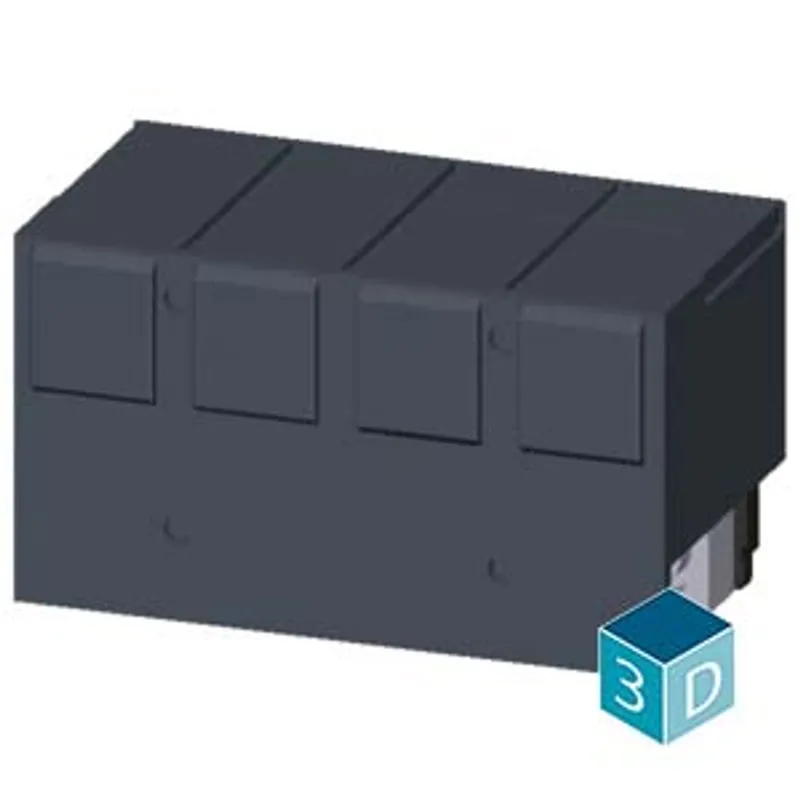

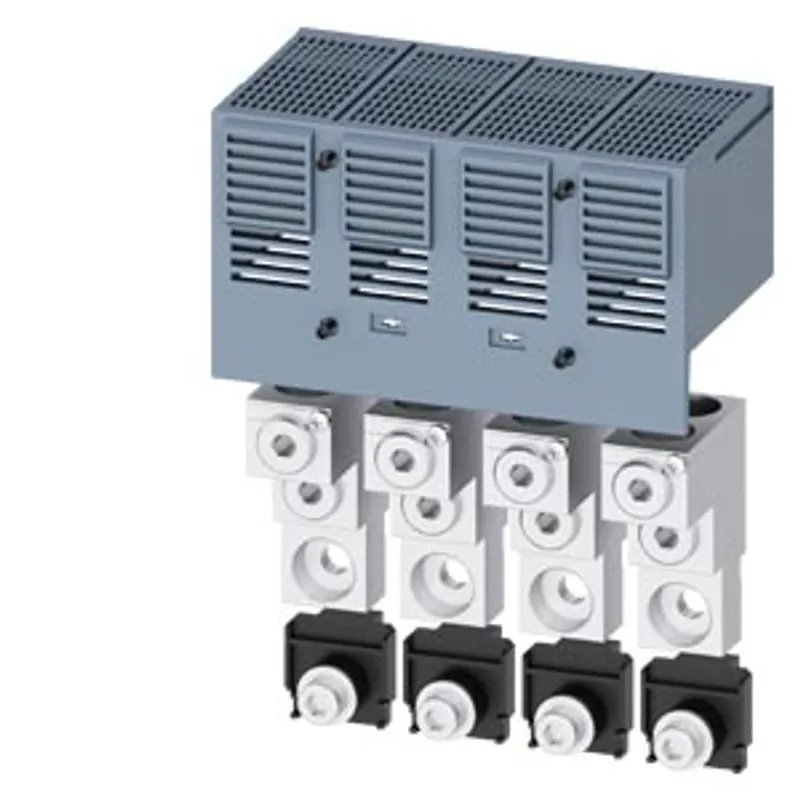

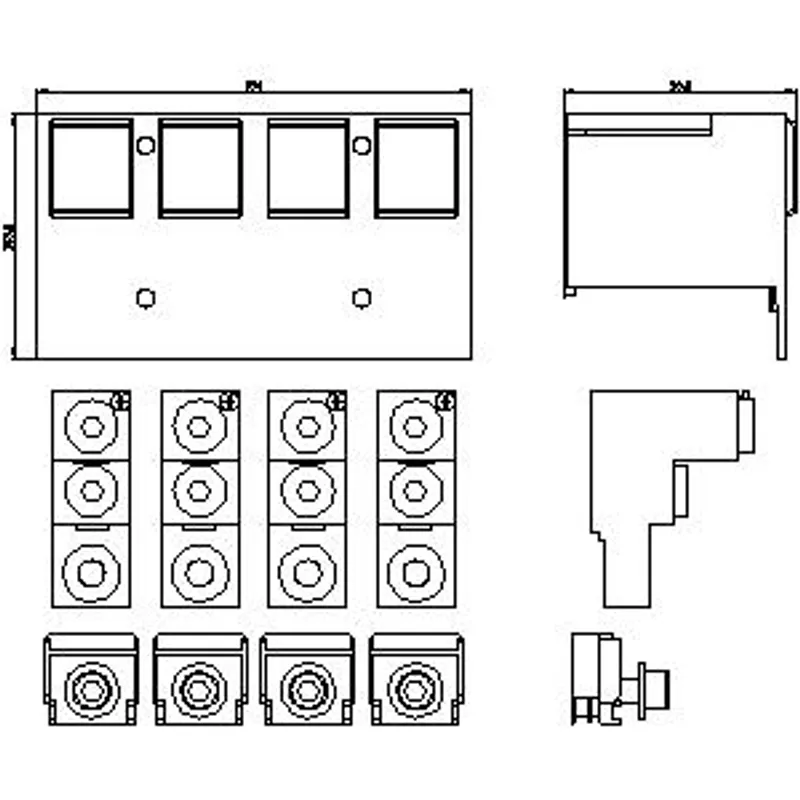

Siemens 3VA9474-0JL23
Circular conduc. terminal TC2.4 2 x 2/0…600 kcmil Cu 2 cables with auxiliary conductor voltage tap 4 units…
- MPN
- 3VA9474-0JL23
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9474-0JL23?
circular conduc. terminal TC2.4 2 x 2/0…600 kcmil Cu 2 cables with auxiliary conductor voltage tap 4 units accessory for: 3VA53/54; 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TC2.4 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 3.303 kg |
Connections according IEC
| stripped length | 31 / 58,5 mm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 90 °C |
| stripped length | 1.2 / 2.3 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 2/0 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 600 kcmil |
| tightening torque / when using copper cables — stranded | 2/0 - 600 kcmil: 375 lb-in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9474-0JL23: frequently asked questions
When can 3VA9474-0JL23 be shipped?
3VA9474-0JL23 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9474-0JL23 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9474-0JL23 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9474-0JL23, subject to availability and destination.
