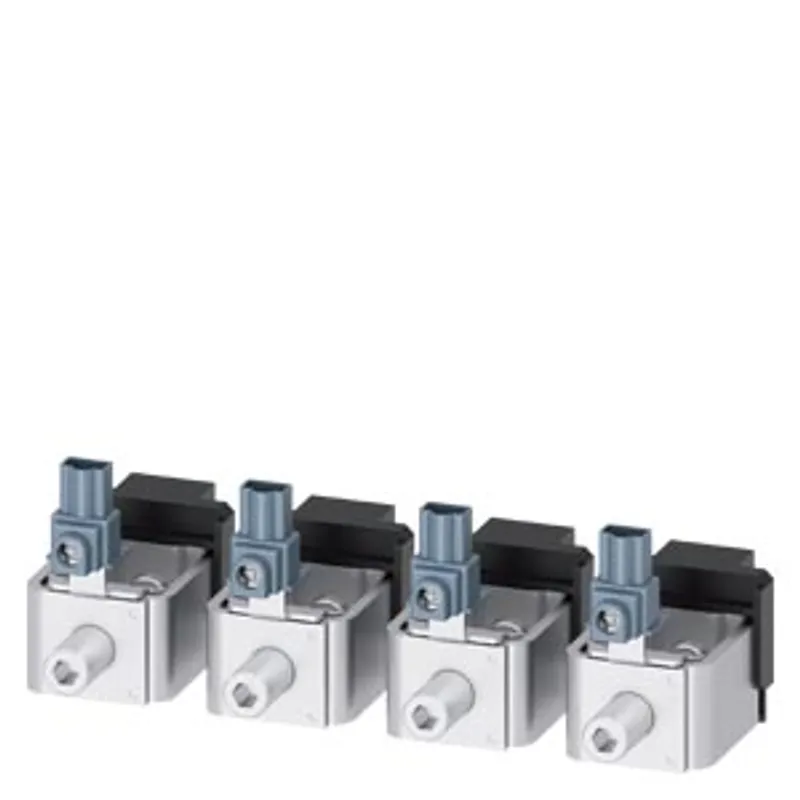

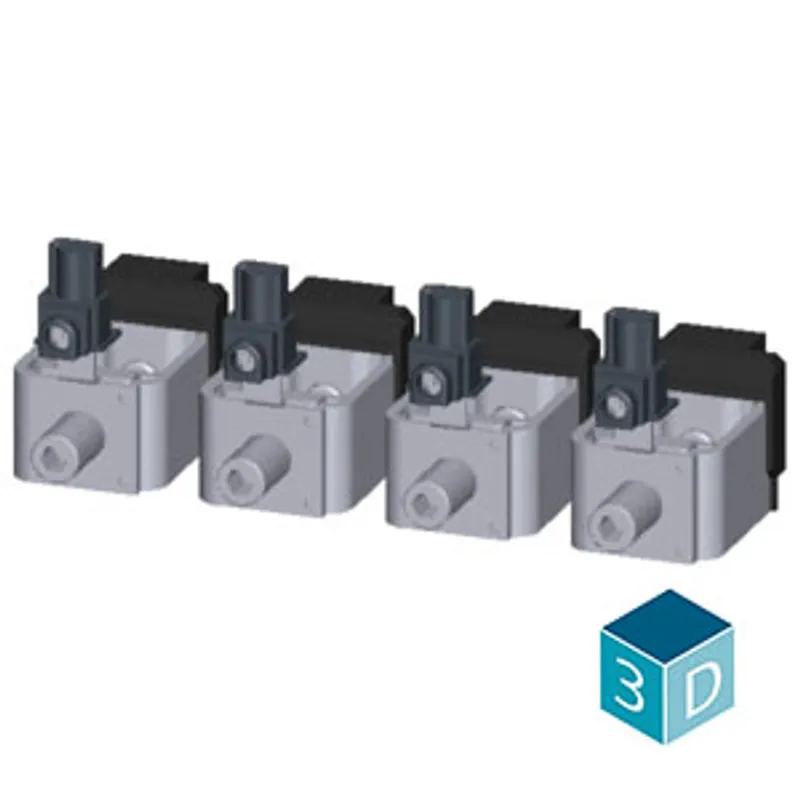

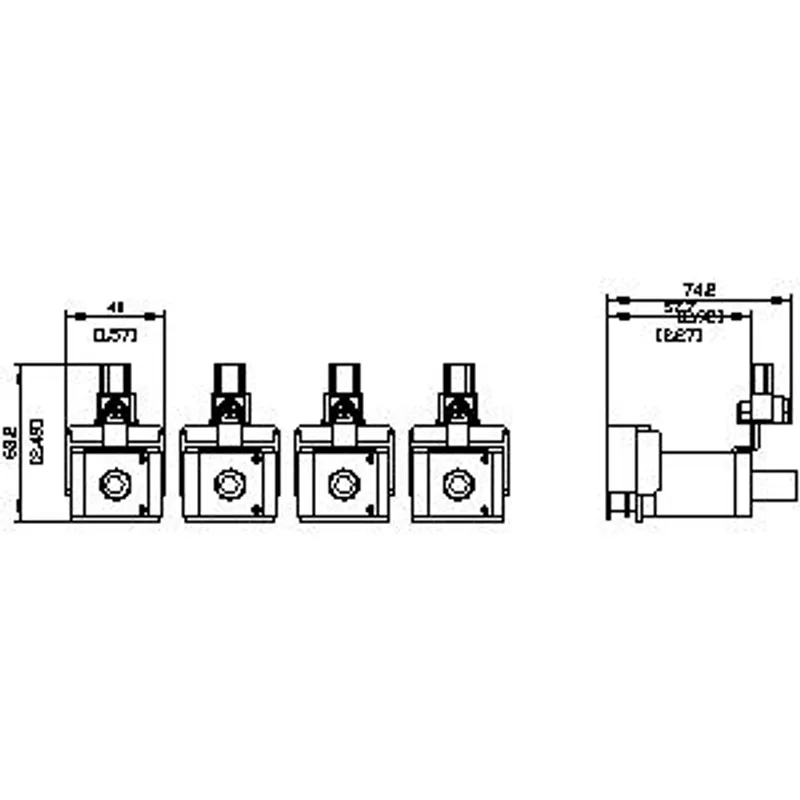

Siemens 3VA9474-0JH13
Box terminal TS1.5; 4 units 1/0…500 kcmil with aux. conductor voltage tap 4 units accessory for: 3VA53/54
- MPN
- 3VA9474-0JH13
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9474-0JH13?
box terminal TS1.5; 4 units 1/0…500 kcmil with aux. conductor voltage tap 4 units accessory for: 3VA53/54; 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | Box terminal with voltage tap 4 units |
| design of the product | Connection method |
| accessories | Box terminal |
General technical data
| designation / of the terminal | TS1.5 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 648 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 35 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 mm² |
| type of connectable conductor cross-sections / of the laminated conductor rails — minimum | 2 x 20mm x 1mm, 2 x 24mm x 1mm |
| type of connectable conductor cross-sections / of the laminated conductor rails — maximum | 10 x 20mm x 1mm, 10 x 24mm x 1mm |
| stripped length | 26.5 mm |
| tightening torque / when using copper cables — stranded | 35 - 95 mm²: 16 Nm; 120 - 300 mm²: 28 Nm |
| tightening torque / when using copper cables — finely stranded | 35 - 95 mm²: 16 Nm, 120 - 240 mm²: 28 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 35 - 95 mm²: 16 Nm, 120 - 240 mm²: 28 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.05 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 1/0 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 500 kcmil |
| tightening torque / when using copper cables — stranded | 1/0 - 4/0: 140 lb-in; 250 - 500 kcmil: 248 lb-in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9474-0JH13: frequently asked questions
When can 3VA9474-0JH13 be shipped?
3VA9474-0JH13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9474-0JH13 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9474-0JH13 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9474-0JH13, subject to availability and destination.
